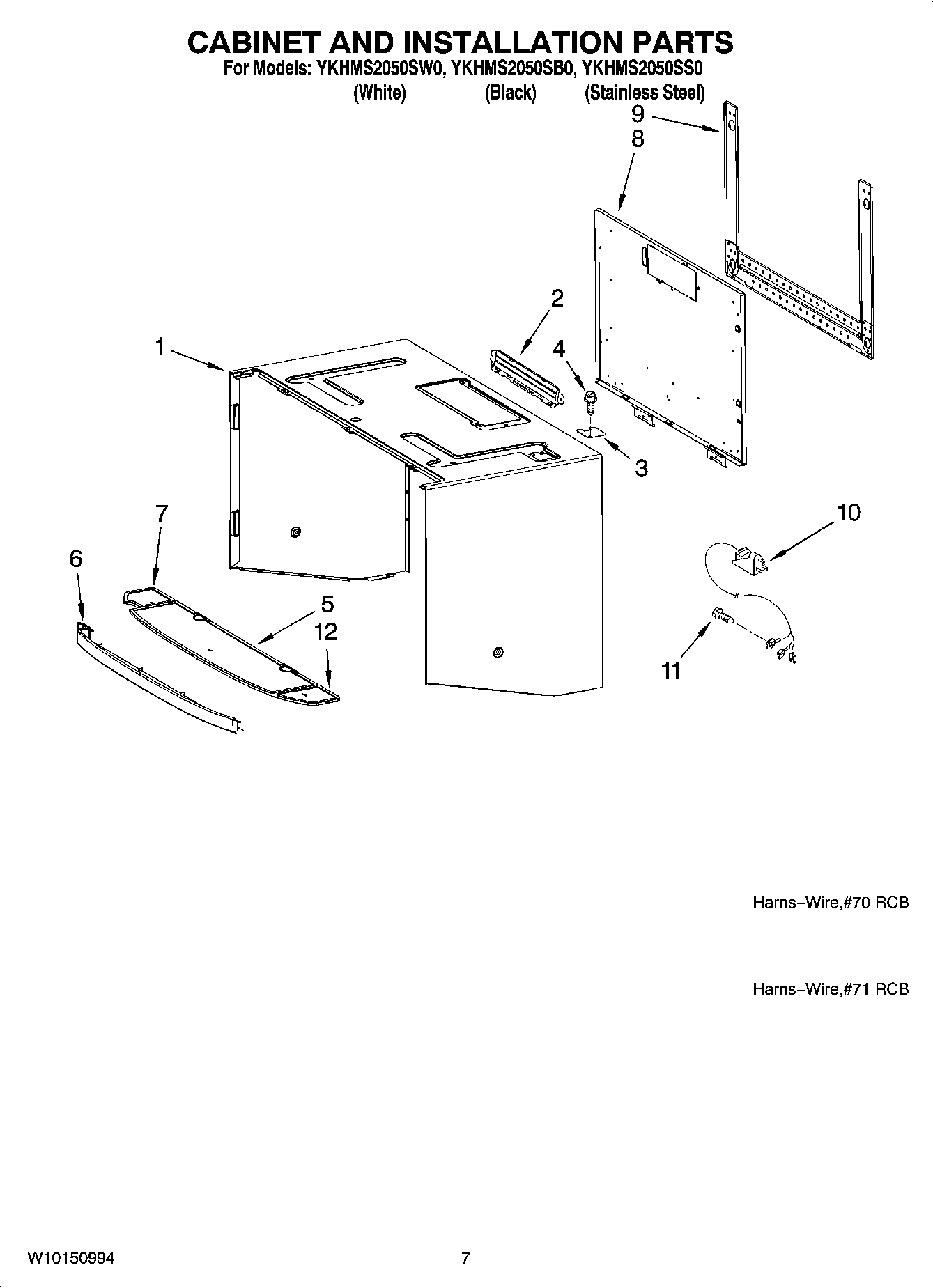

YKHMS2050SS0 06 – CABINET AND INSTALLATION PARTS

YKHMS2050SS0 06 – CABINET AND INSTALLATION PARTS

Written by

in

YKHMS2050SS0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
Miscellaneous
W10470176 Whirlpool Microwave Wire Harness
W10470191 Whirlpool Microwave Wire Harness Assembly
W10553076 Whirlpool Microwave Wire Harness
Installation, Magnetron Hardware
HARNS-WIRE, P56-P66
Harns-Wire, RCB – Inverter
HARNS-WIRE No.75 P64 RCB
HARNS-WIRE No.76 P2 RCB
Harns-Wire, HV
Main Harness
MISCELLANEOUS, TEMPLATE, UPPER
W10470175 Whirlpool Microwave Wire Harness
W10470173 Whirlpool Microwave Wire Harness
8206185 Whirlpool Microwave Wire Harness
1Case, Outer (Stainless Steel)
1Case, Outer (White)
1Case, Outer (Black)
2W10843943 Whirlpool Microwave Vent Damper
3Lid, Power Cord
4W11380570 Whirlpool Microwave Screw
5Vent Screen (Middle)
6Support, Vent Screen (White)
6Support, Vent Screen (Stainless Steel)
6Support, Vent Screen (Black)
7Vent Screen (Left)
8Plate, Back
9Plate, Mounting
10Cord, Power
114393836 Whirlpool Microwave Screw
12Vent Screen (Right)
