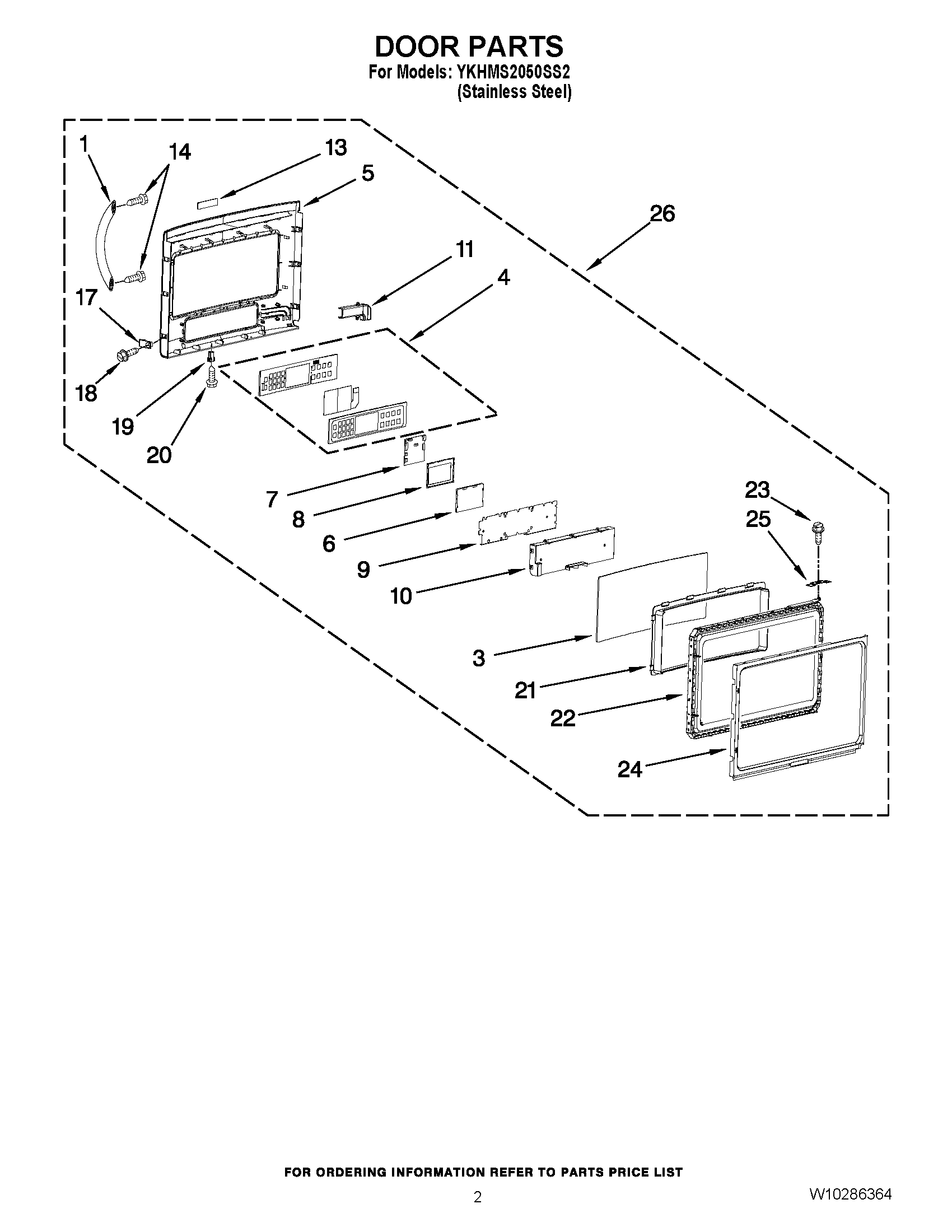

YKHMS2050SS2 02 – DOOR PARTS

YKHMS2050SS2 02 – DOOR PARTS

Written by

in

YKHMS2050SS2 02 – DOOR PARTS

Products

PositionProduct
1Handle (Stainless Steel)
3WP8206528 Whirlpool Microwave Door Glass
4Control Panel
5OUTER DOOR FRAME (STAINLESS)
6LCD Frame
7Board, User (Interface)
8LCD Module
9Cntrl Panel Plate
10Cntrl Panel Cover
11Cable Cover, Door
13Logo (Stainless Steel)
14W10815455 Whirlpool Screw
178206525 Whirlpool Microwave Spacer
19Spacer, Bottom (2)
208206179 Whirlpool Microwave Screw
21COVER, CHOKE
22Door Plate Assy
23W10565483 Whirlpool Microwave Screw
24Dr Innr Frm Assy
25CLIP,HINGE SCREW
26DOOR, COMPLETE (STAINLESS)
