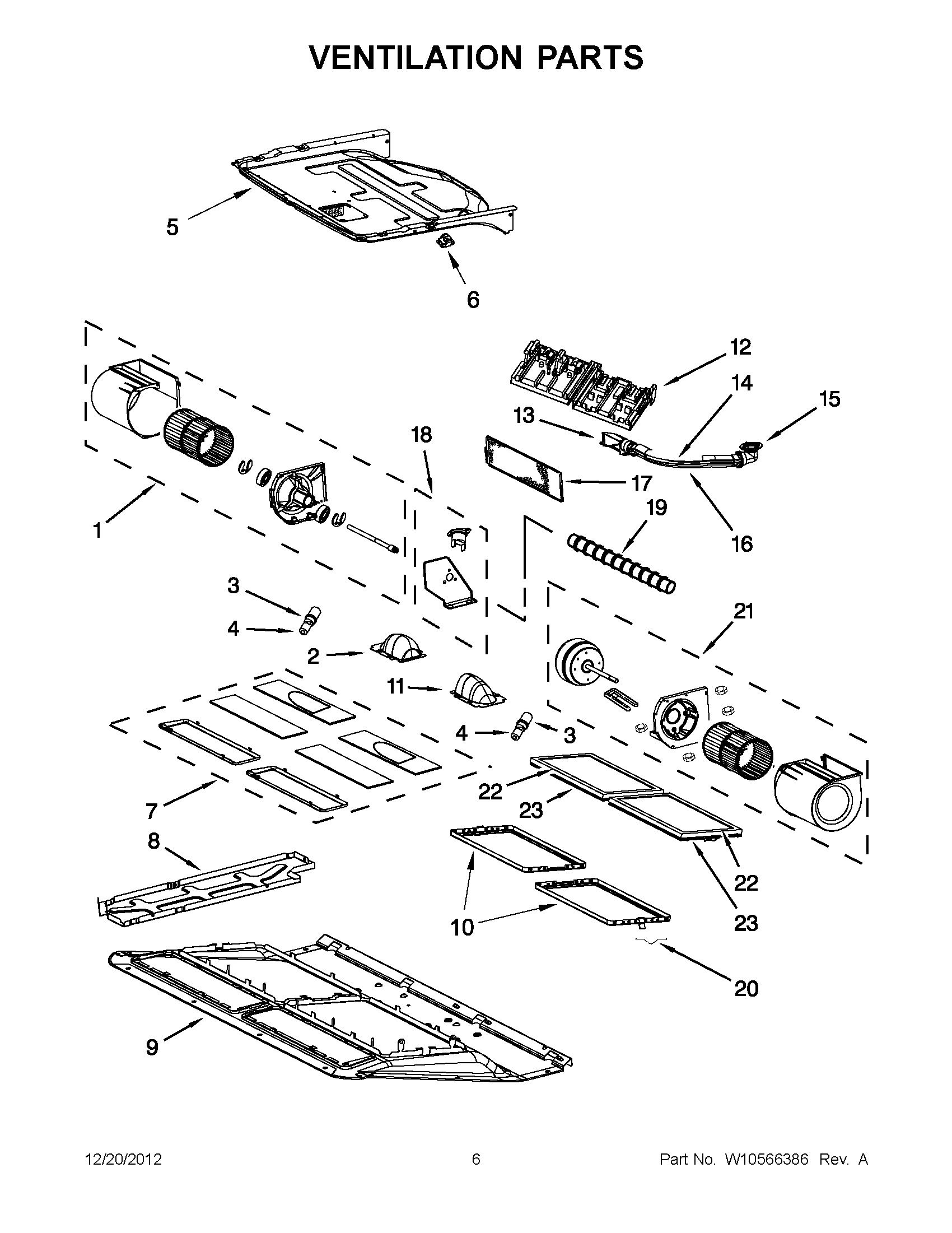

YKHMS2050SS4 03 – VENTILATION PARTS

YKHMS2050SS4 03 – VENTILATION PARTS

Written by

in

YKHMS2050SS4 03 – VENTILATION PARTS

Products

PositionProduct
1Housing, Blower (Left)
2Reflector, Lamp
38204670 Whirlpool Microwave Halogen Lamp 10W 12V
4W10143958 Whirlpool Microwave Light Socket Housing
5Air Guide, Center Hood
6W10596040 Whirlpool Microwave Nut
7Frame, Glass (Right)
7Frame, Glass (Left)
8Plate, Separator (Left)
9Plate, Bottom
10Spring, Hook
11Reflector, Lamp
12Cover, Terminal
13Diffuser
14Cover, Duct
15Connector, Duct
16Holder, Duct
17SHIELD
18Support & Base Thermostat Assy
19Connector Shaft
20SPRING
21Housing, Blower (Right)
22W10120840A Whirlpool Oven Range Vent Hood Charcoal Filter
23W10120839A Whirlpool Oven Microwave Range Vent Hood Grease Filter
