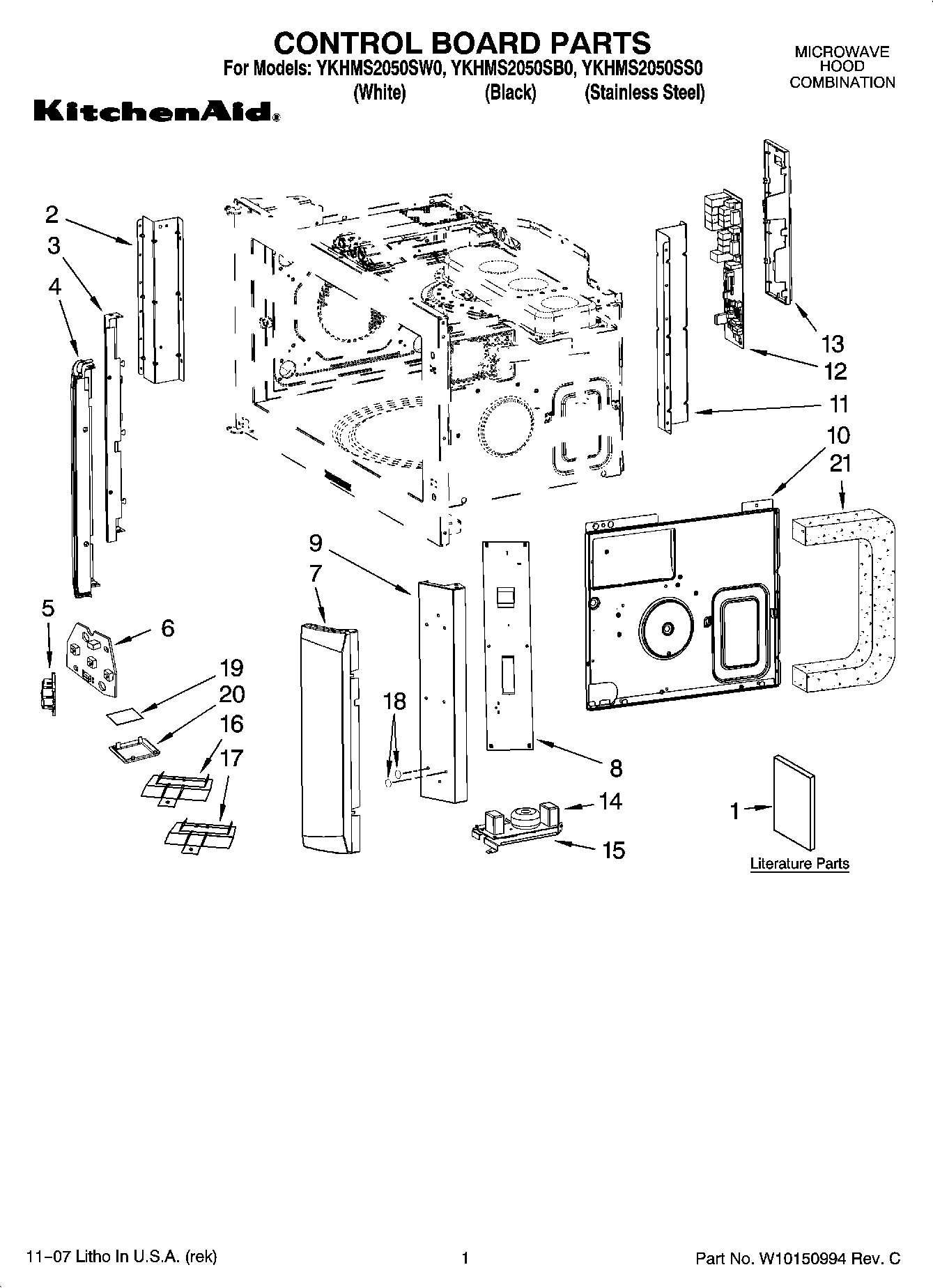

YKHMS2050SW0 01 – CONTROL BOARD PARTS

Products

PositionProduct
1TECH SHEET
1Use & Care Guide
1Tech Sheet (Full)
1Quick Reference
1Installation Instr
1Tech Sheet(Lt Fr)
1Cook Guide(Fr)
2Support, Cavity (Left)
3W10527358 Whirlpool Microwave Plate
4Side Panel, Left (Stainless Steel)
4Side Panel, Left (Black)
4Side Panel, Left (White)
5Button (Black)
5Button (White)
5Button (Stainless Steel)
6WPW10403040-includeCORE Whirlpool WPW10403040 Microwave Control Board with Light Switch + Core
7Side Panel, Right (Stainless Steel)
7Side Panel, Right (White)
7Side Panel, Right (Black)
8Control Board, (Relay)
9Plate, Protection (Right)
10Plate, Chassis
11Support, Cavity (Right)
12WP8206493 Whirlpool Microwave Electronic Control Board
13Holder, Microcomputer
14AC Line Filter
15Holder, Filter
16Resistor (50W)
17W10113783 Whirlpool Microwave Resistor
18Spacer (6)
19Glass, Lamp
20Frame, Glass
21FOAM, SEAL
