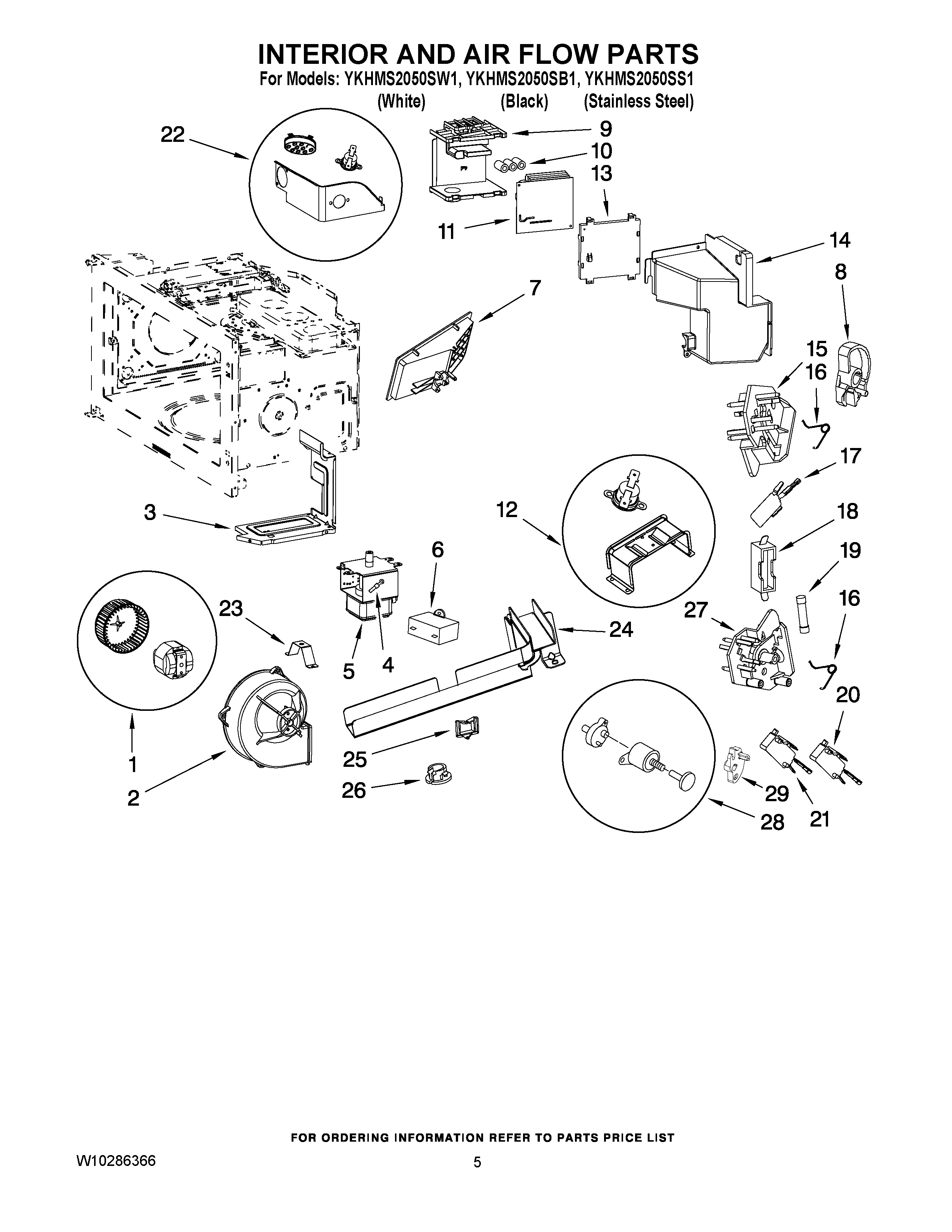

YKHMS2050SW1 04 – INTERIOR AND AIR FLOW PARTSadmin2025-04-26T11:12:06+00:00YKHMS2050SW1 04 – INTERIOR AND AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | Fan Motor Assy |
| 2 | Housing, Fan |
| 3 | Plate, Divider |
| 4 | W10115577 Whirlpool Microwave Sensor |
| 5 | 8206079 Whirlpool Microwave Magnetron |
| 6 | Motor, Capacitor |
| 7 | Housing, Valve |
| 8 | CAM PLATE, UPPER |
| 9 | COVER, INVERTER |
| 10 | Ferrite Ring |
| 11 | W10217711 Whirlpool Microwave Inverter |
| 12 | 8206035 Whirlpool Microwave Thermostat |
| 13 | HOLDER, INVERTER |
| 14 | Air Guide, Magnetron |
| 15 | W10143956 Whirlpool Microwave Interlock |
| 16 | Spring, Interlock |
| 17 | W10211972 Whirlpool Microwave Switch |
| 18 | HOLDER, FUSE |
| 19 | FUSE-THRML |
| 20 | W10269458 Whirlpool Microwave Door Switch |
| 21 | W10211974 Whirlpool Microwave Door Interlock Micro Switch |
| 22 | Humidity Sensor & Thermostat Assy |
| 23 | Support, Air Guide |
| 24 | Protector, Wire |
| 25 | Clip, Saddle |
| 26 | 8206038 Whirlpool Clip Assembly |
| 27 | 8206209 Whirlpool Microwave Interlock Switch |
| 28 | Piston Assembly |
| 29 | CAM PLATE, LOWER |
