YKIRS608BSS1 04 – CONTROL PANEL PARTS

YKIRS608BSS1 04 – CONTROL PANEL PARTS

Written by

in

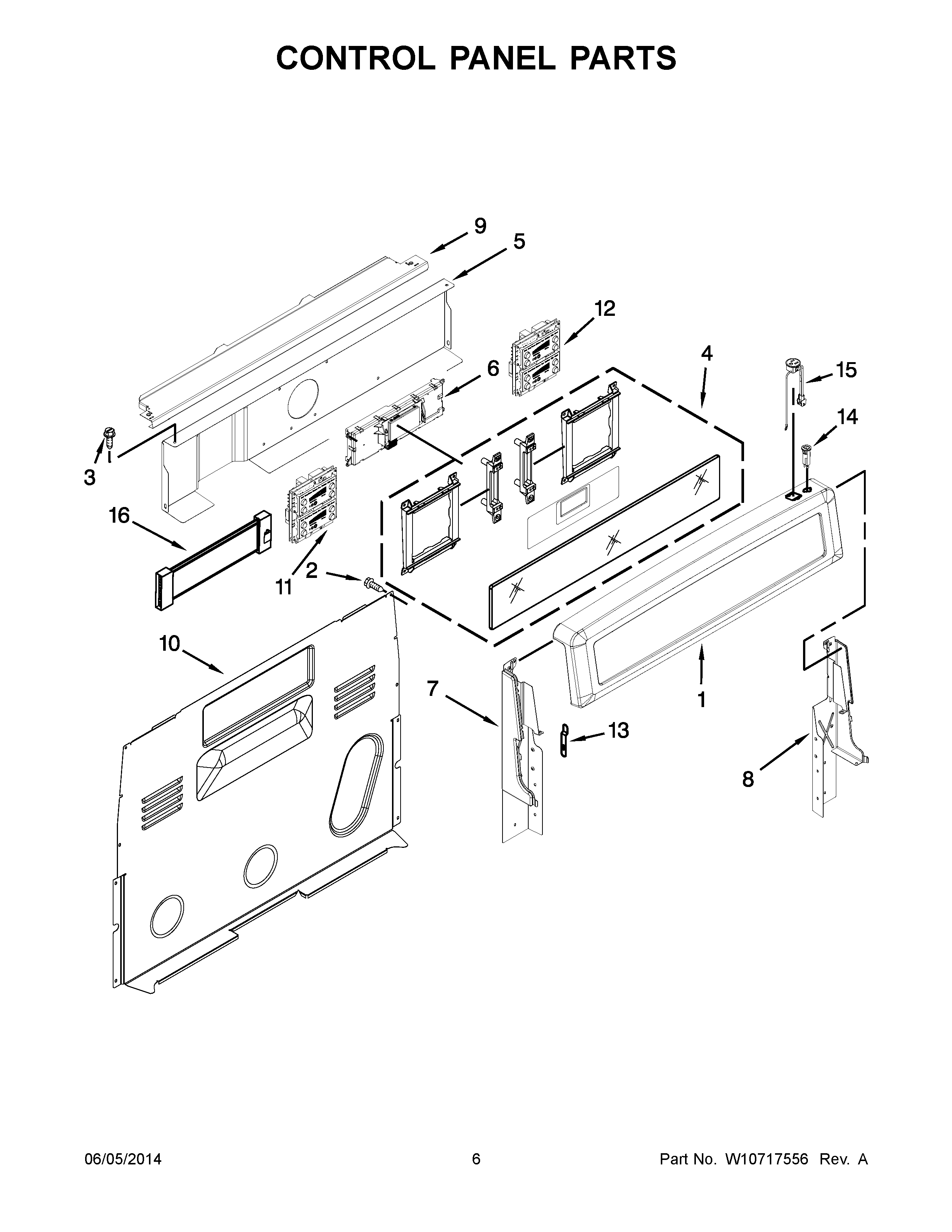

YKIRS608BSS1 04 – CONTROL PANEL PARTS

Products

PositionProduct
1PANEL, BACKGUARD
2W11245710 Whirlpool Refrigerator Screw
3SCREW
4WPW10726780 Whirlpool Membrane Switch
5W10134247 Whirlpool Heat Shield
6WPW10686475-includeCORE Whirlpool WPW10686475 Refrigerator Electronic Control Board + Core
7W11404310 Whirlpool Panel Endcap
8W10409003 Whirlpool Endcap Panel
9W10525121 Whirlpool Control Bracket
10WP8272473 Whirlpool Rear Cover
11WPW10341840-includeCORE Whirlpool WPW10341840 Washer Electronic Control Board + Core
12WPW10553763-includeCORE Whirlpool WPW10553763 Refrigerator Electronic Control Board
133196200 Whirlpool Clip
14WP9757602 Whirlpool Breaker
15W10861164 Whirlpool Electrical Outlet
16WPW10318787 Whirlpool Wire Harness
