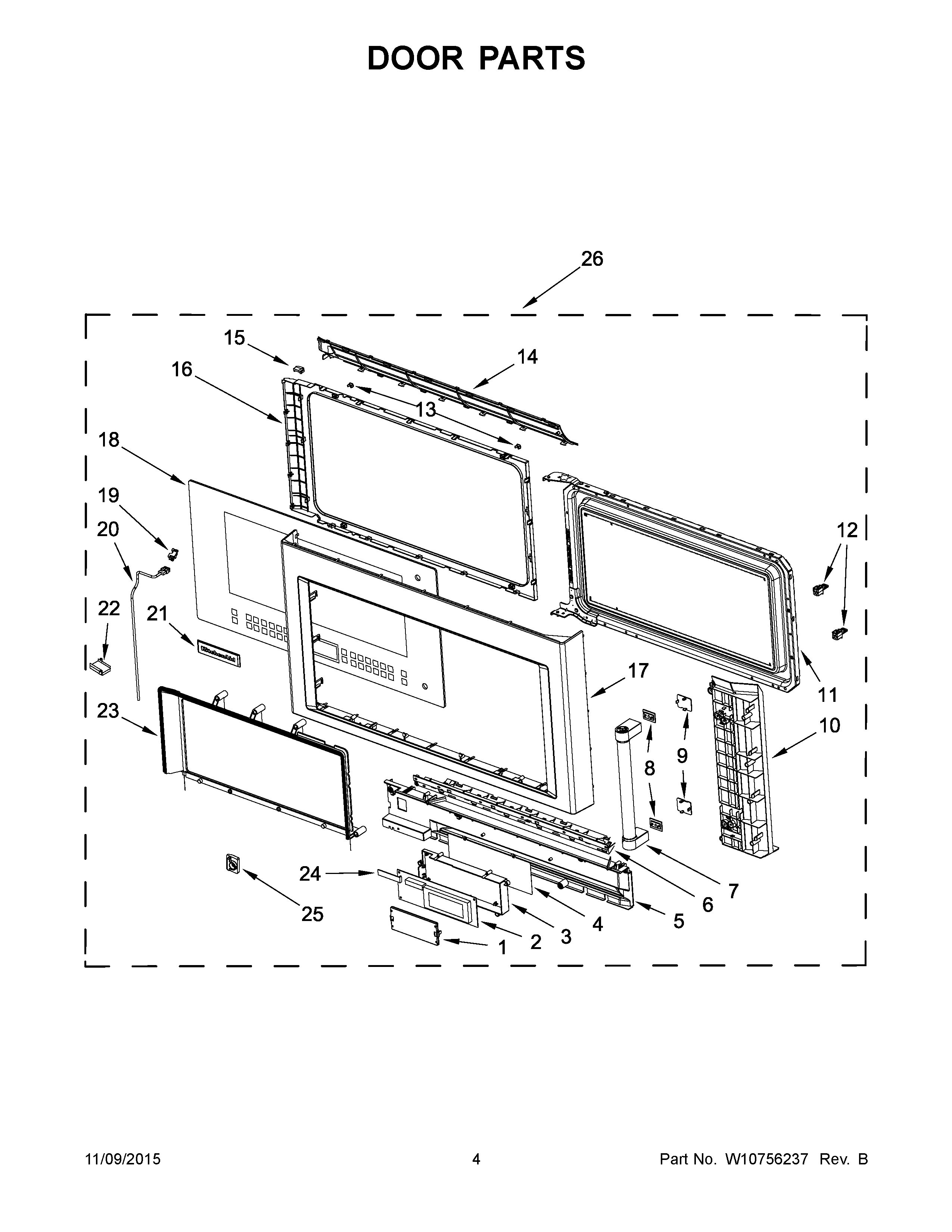

YKMHC319EB0 03 – DOOR PARTS

Products

Position	Product
1	LENS
2	CONTROL
3	W10478216 Whirlpool Holder Assembly
4	W10540298 Whirlpool Cover Assembly
5	W10617743 Whirlpool Microwave Cover
6	W10476546 Whirlpool Microwave Support Bracket
7	W10604264 Whirlpool Microwave Door Handle
8	W11590575 Whirlpool Microwave Cushion
9A	W10478657 Whirlpool Microwave Cover
9	W10571119 Whirlpool Plate Cover
10	W10734944 Whirlpool Microwave Support Bracket
10A	W11699920 Whirlpool Microwave Support Bracket
11	W10568846 Whirlpool Microwave Inner Door
12	W10740455 Whirlpool Microwave Door Latch
13	W10542546 Whirlpool Microwave Cover
14A	W10476550 Whirlpool Microwave Door Trim
14	W10570992 Whirlpool Microwave Door Trim
15	W10643448 Whirlpool Microwave Clip
16	W10897612 Whirlpool Microwave Choke Cover
17B	W10688550 Whirlpool Microwave Outer Door
17A	ASSEMBLY, DOOR FRAME (BLACK)
17	W10688547 Whirlpool Microwave Outer Door
18	WPW10688552 Whirlpool Microwave Door Glass
19	W10478659 Whirlpool Microwave Wire Holder
20	W10508745 Whirlpool Microwave Wire Harness
21	W10909682 Whirlpool Nameplate Tag
22	W10478230 Whirlpool Wire Clip
23	W10478647 Whirlpool Microwave Plate
24	W10509362 Whirlpool Microwave Wire Harness
25	BLOCK, DOOR GLASS
26B	W10710352 Whirlpool Microwave Door
26A	W10710351 Whirlpool Microwave Door
26	W10710350 Whirlpool Microwave Door
