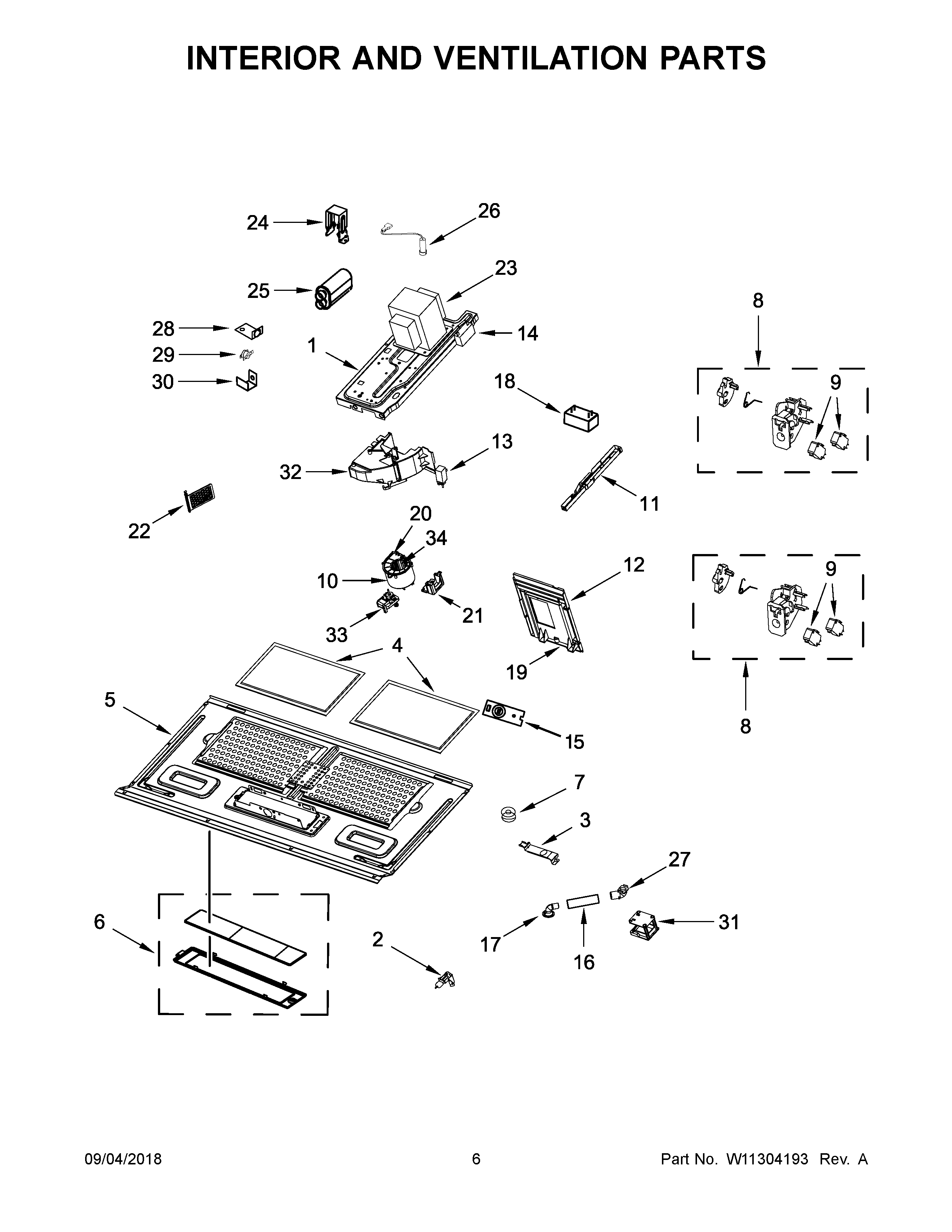

YKMHC319ES4 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10908578 Whirlpool Microwave Base
2W10709921 Whirlpool Halogen Light Bulb
3W10525853 Whirlpool Microwave Sensor Bracket
4W10535950 Whirlpool Microwave Grease Filter
5W10571126 Whirlpool Microwave Base
6COVR-LIGHT
7W10510237 Whirlpool Microwave Spacer
8INTERLOCK
9CABINET (NOT A SERVICEABLE PART)
10W10533501 Whirlpool Microwave Housing
11W10540718 Whirlpool Microwave Mounting Bracket
12W10571453 Whirlpool Microwave Plate
13W10458325 Whirlpool Microwave Actuator
14W11405831 Whirlpool Microwave Capacitor
15W10536989 Whirlpool Microwave Thermistor
16W10510235 Whirlpool Microwave Shield
17W10510234 Whirlpool Microwave Shield
18W10568805 Whirlpool Microwave Resistor
19W10533107 Whirlpool Microwave Deflector Assembly
20W10533502 Whirlpool Microwave Fan Cover
21W10533480 Whirlpool Microwave Holder
22W10756358 Whirlpool Microwave Valve
23W11371718 Whirlpool Microwave Transformer
24W10633730 Whirlpool Microwave Control Bracket
25CAPACITOR, HIGH VOLTAGE
26W11256462 Whirlpool Microwave Diode
27W10510233 Whirlpool Microwave Shield
28W10259248 Whirlpool Microwave Cover Assembly
29W10599629 Whirlpool Microwave Thermostat Fix
308206223 Whirlpool Clip
31W11416049 Whirlpool Microwave Electronic Control Board
32W10631701 Whirlpool Microwave Air Guide
33W11230994 Whirlpool Microwave Fan Motor
34W10533503 Whirlpool Microwave Fan Wheel
