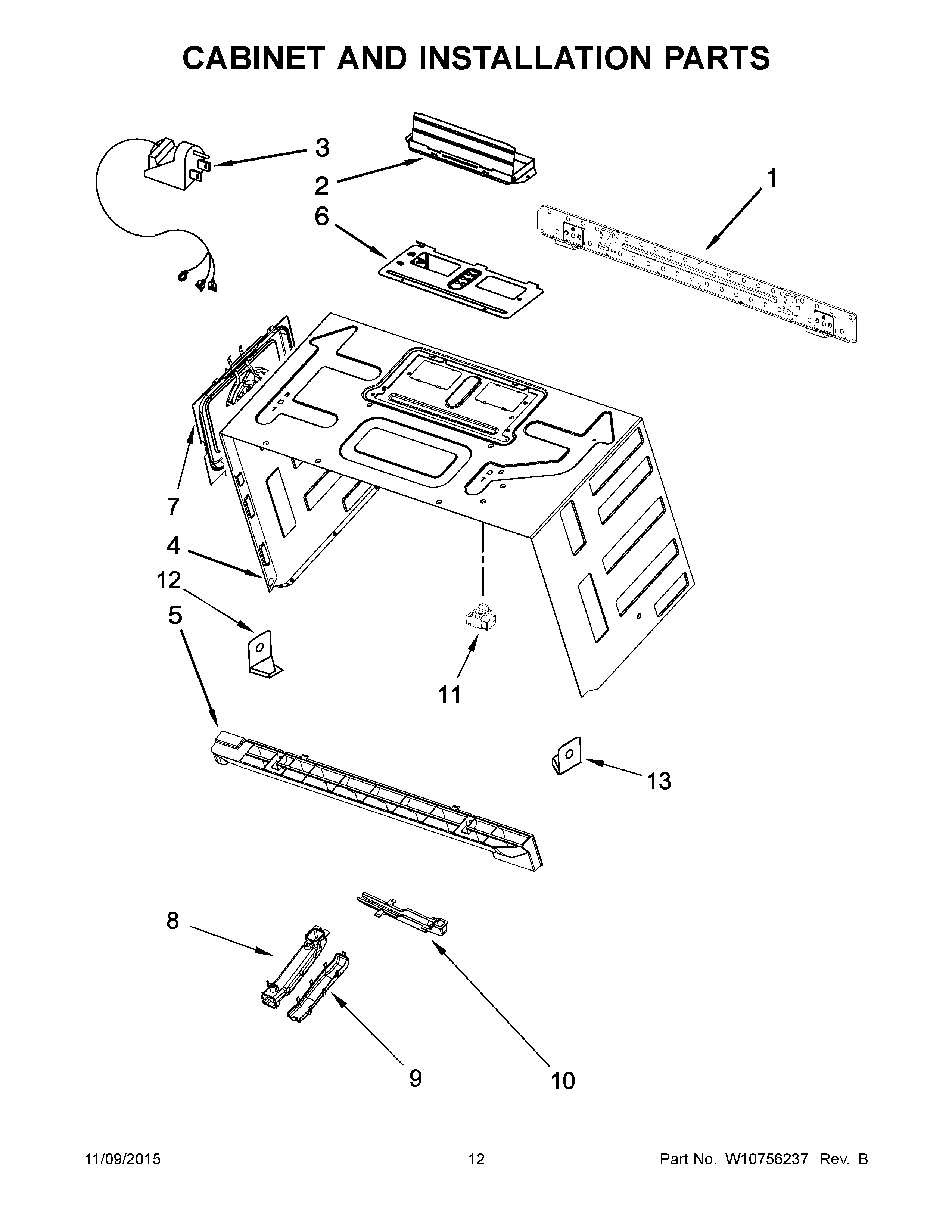

YKMHC319EW0 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10571450 Whirlpool Plate
NI	W10571451 Whirlpool Plate
NI	W10821385 Whirlpool Hardware Kit
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NI	W10508746 Whirlpool Microwave Wire Harness
NI	W10571454 Whirlpool Plate Assembly
NI	W10622246 Whirlpool Microwave Wire Harness
NI	W10508741 Whirlpool Microwave Wire Harness
NI	W10532916 Whirlpool Microwave Wire Harness
NI	WP8169704 Whirlpool Screw
1	W11025649 Whirlpool Microwave Mounting Plate
2	W10843943 Whirlpool Microwave Vent Damper
3	W10708076 Whirlpool Microwave Power Cord
4A	W10818229 Whirlpool Microwave Cabinet Wrapper
4	W11446920 Whirlpool Microwave Cab Wrapper
5A	W10701701 Whirlpool Microwave Vent Grille
5	W10701700 Whirlpool Microwave Vent Grill
6	COVER, FAN MOTOR
7	ASSEMBLY, CONVECTION MOTOR AND FAN
8	W10740434 Whirlpool Microwave Air Duct
9	W10533489 Whirlpool Microwave Air Duct
10	W10570212 Whirlpool Microwave Air Duct
11	W10596040 Whirlpool Microwave Nut
12	W11026306 Whirlpool Microwave Mounting Bracket
12A	W10830163 Whirlpool Microwave Mounting Bracket
13	W10703282 Whirlpool Microwave Mounting Bracket
13A	W10810989 Whirlpool Microwave Mounting Bracket
