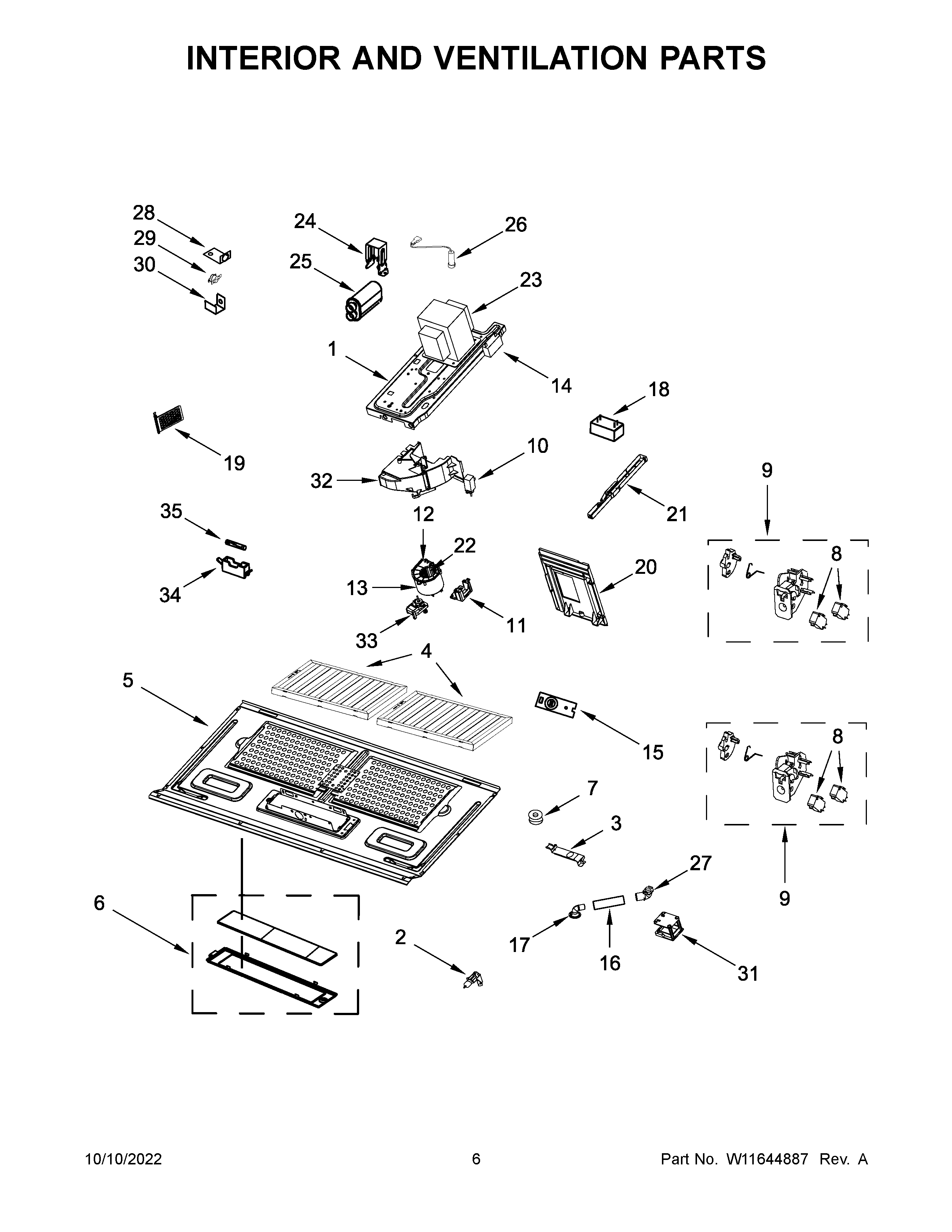

YKMHC319LPS00 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	W10908578 Whirlpool Microwave Base
2	W11409090 Whirlpool Microwave Light Bulb
3	W10525853 Whirlpool Microwave Sensor Bracket
4	W10535933 Whirlpool Microwave Filter
5	W10607242 Whirlpool Microwave Base
6	COVR-LIGHT
7	W10510237 Whirlpool Microwave Spacer
8	INTERLOCK
9	CABINET (NOT A SERVICEABLE PART)
10	W10458325 Whirlpool Microwave Actuator
11	W10533480 Whirlpool Microwave Holder
12	W10533502 Whirlpool Microwave Fan Cover
13	W10533501 Whirlpool Microwave Housing
14	W11405831 Whirlpool Microwave Capacitor
15	W10536989 Whirlpool Microwave Thermistor
16	W10510235 Whirlpool Microwave Shield
17	W10510234 Whirlpool Microwave Shield
18	W11259891 Whirlpool Resistor
19	W10533486 Whirlpool Microwave Valve
20	W10533107 Whirlpool Microwave Deflector Assembly
21	W10540718 Whirlpool Microwave Mounting Bracket
22	W10533503 Whirlpool Microwave Fan Wheel
23	W11744484 Whirlpool Capacitor-MG
24	W10556823 Whirlpool Connector Bracket
25	CAPACITOR, HIGH VOLTAGE
26	W11256462 Whirlpool Microwave Diode
27	W10510233 Whirlpool Microwave Shield
28	W10259248 Whirlpool Microwave Cover Assembly
29	W11268275 Whirlpool Microwave Thermostat
30	8206223 Whirlpool Clip
31	W11416049 Whirlpool Microwave Electronic Control Board
32	W10631701 Whirlpool Microwave Air Guide
33	W11230994 Whirlpool Microwave Fan Motor
34	W10245194 Whirlpool Microwave Fuse Block
35	FUSE-THRML
