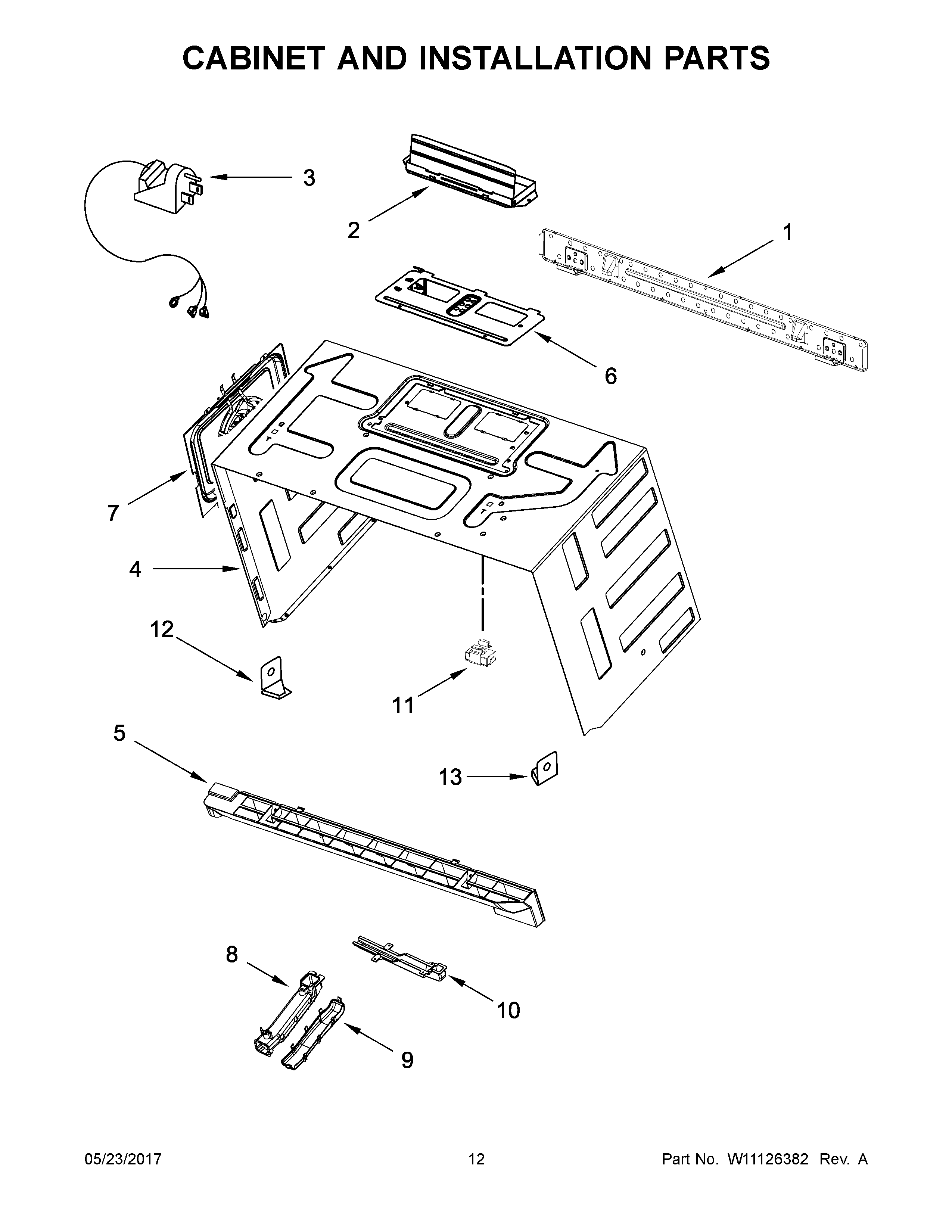

YKMHP519ES1 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10571450 Whirlpool Plate
NI	W10821385 Whirlpool Hardware Kit
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NI	INSULATION, BOTTOM
NI	W10571453 Whirlpool Microwave Plate
NI	W10566562 Whirlpool Microwave Wire Harness
NI	W10566563 Whirlpool Microwave Wire Harness
NI	W10670896 Whirlpool Microwave Wire Harness
NI	W10877903 Whirlpool Microwave Wire Harness
NI	MISCELLANEOUS PARTS, WIRE, QUARTZ GRILL
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10508741 Whirlpool Microwave Wire Harness
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	WP8169704 Whirlpool Screw
1	W11025649 Whirlpool Microwave Mounting Plate
2	W10843943 Whirlpool Microwave Vent Damper
3	W10708076 Whirlpool Microwave Power Cord
4	W10818229 Whirlpool Microwave Cabinet Wrapper
5	W10701701 Whirlpool Microwave Vent Grille
6	COVER, FAN MOTOR
7	ASSEMBLY, CONVECTION MOTOR AND FAN
8	W10740434 Whirlpool Microwave Air Duct
9	W10533489 Whirlpool Microwave Air Duct
10	W10570212 Whirlpool Microwave Air Duct
11	W10596040 Whirlpool Microwave Nut
12	W10830163 Whirlpool Microwave Mounting Bracket
13	W10810989 Whirlpool Microwave Mounting Bracket
