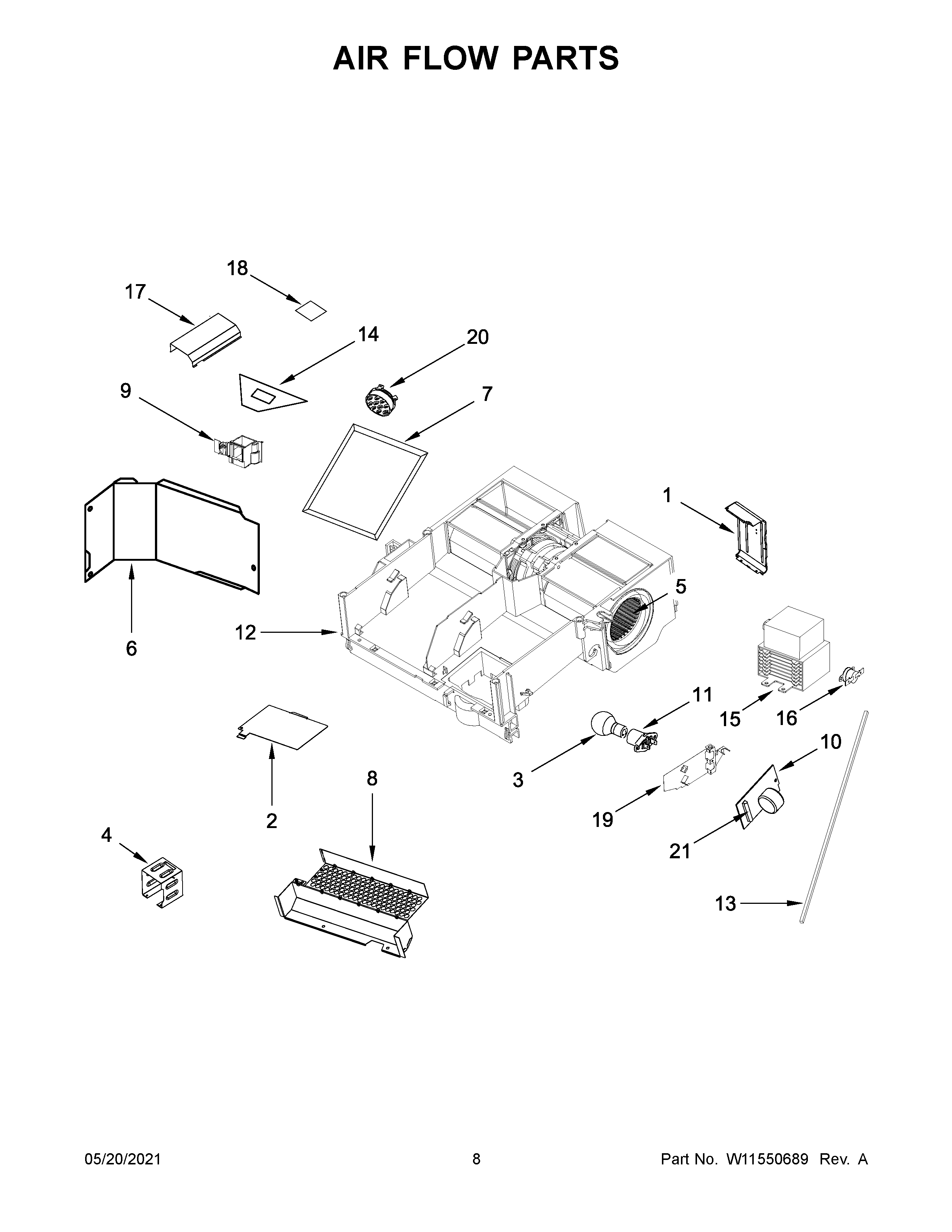

YKMHS120EBS07 05 – AIR FLOW PARTS
Written by
in
YKMHS120EBS07 05 – AIR FLOW PARTS
Products
Position
Product
1
W10631697 Whirlpool Microwave Deflector Assembly
2
8206382 Whirlpool Microwave Light Cover
3
W11556218 Whirlpool Light Bulb
4
HOUSING, DAMPER
5
W11442100 Whirlpool Microwave Fan Motor
6
W10533116 Whirlpool Microwave Deflector Assembly
7
8206230A Whirlpool Microwave Charcoal Filter
8
W10715053 Whirlpool Side Cover
9
OUTLET, CAVITY (FRONT)
10
WPW10531156 Whirlpool Microwave Filter
11
WPW10210878 Whirlpool Microwave LMP Housing
12
W10892373 Whirlpool Microwave Air Duct
13
W10626457 Whirlpool Microwave Foam Seal
14
W10810142 Whirlpool Relief Strain
15
W10818686 Whirlpool Magnetron
16
W10598693 Whirlpool Microwave Thermostat Fix
17
OUTLET, CAVITY (BACK)
18
W10531724 Whirlpool Microwave Lamp Glass
19
W10533484 Whirlpool Microwave Air Duct
20
W11590866 Whirlpool Microwave Sensor
21
FUSE-THRML
←
