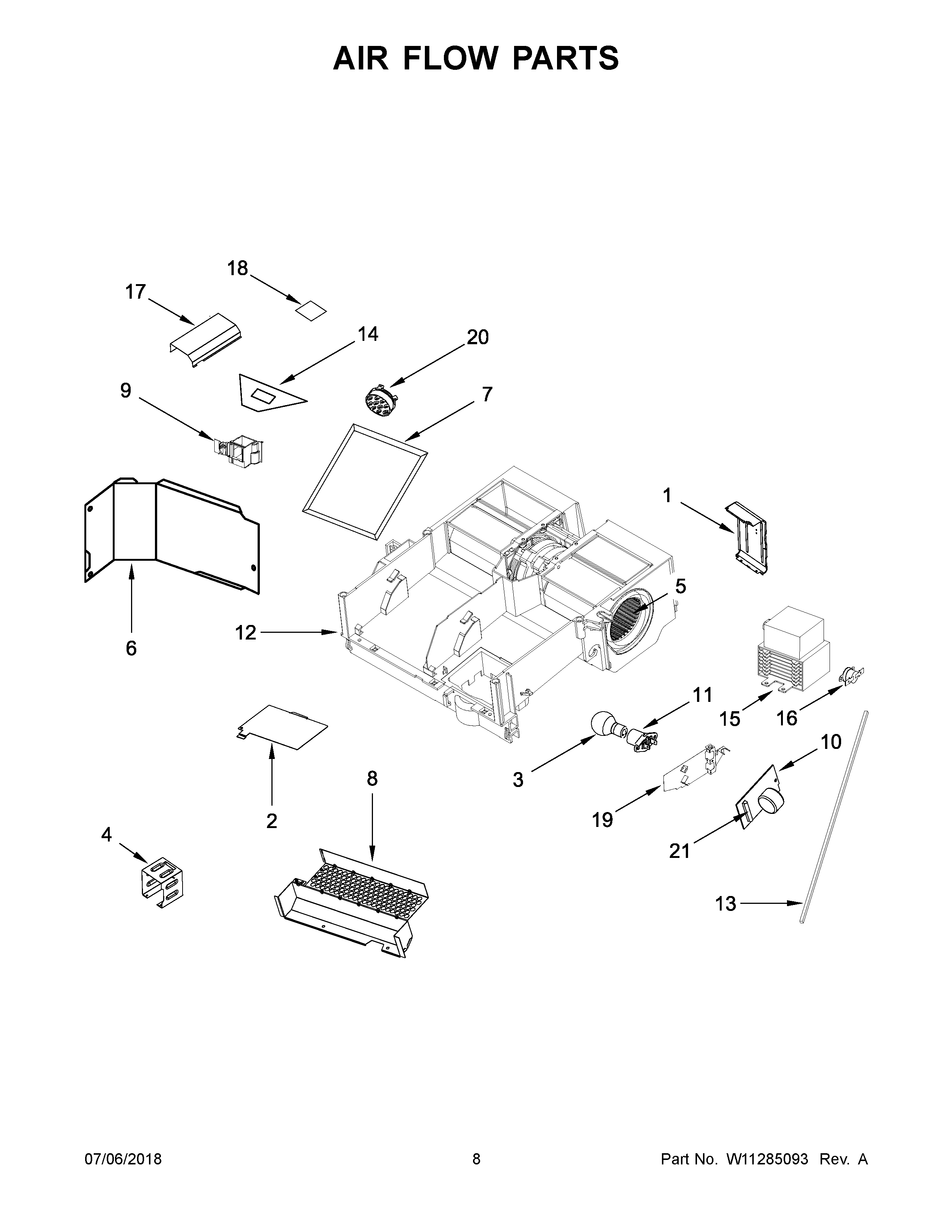

YKMHS120ES6 05 – AIR FLOW PARTS

Products

Position	Product
1	W10631697 Whirlpool Microwave Deflector Assembly
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	W10556824 Whirlpool Microwave Housing
5	W11442100 Whirlpool Microwave Fan Motor
6	W10889794 Whirlpool Microwave Air Deflector
7	8206230A Whirlpool Microwave Charcoal Filter
8	W10629803 Whirlpool Microwave Side Cover
9	OUTLET, CAVITY (FRONT)
10	WPW10531156 Whirlpool Microwave Filter
11	WPW10210878 Whirlpool Microwave LMP Housing
12	W10892373 Whirlpool Microwave Air Duct
13	W10626457 Whirlpool Microwave Foam Seal
14	W10810142 Whirlpool Relief Strain
15	W10818686 Whirlpool Magnetron
16	W10598693 Whirlpool Microwave Thermostat Fix
17	OUTLET, CAVITY (BACK)
18	W10531724 Whirlpool Microwave Lamp Glass
19	W10869222 Whirlpool Microwave Air Duct
20	W11590866 Whirlpool Microwave Sensor
21	FUSE-THRML
