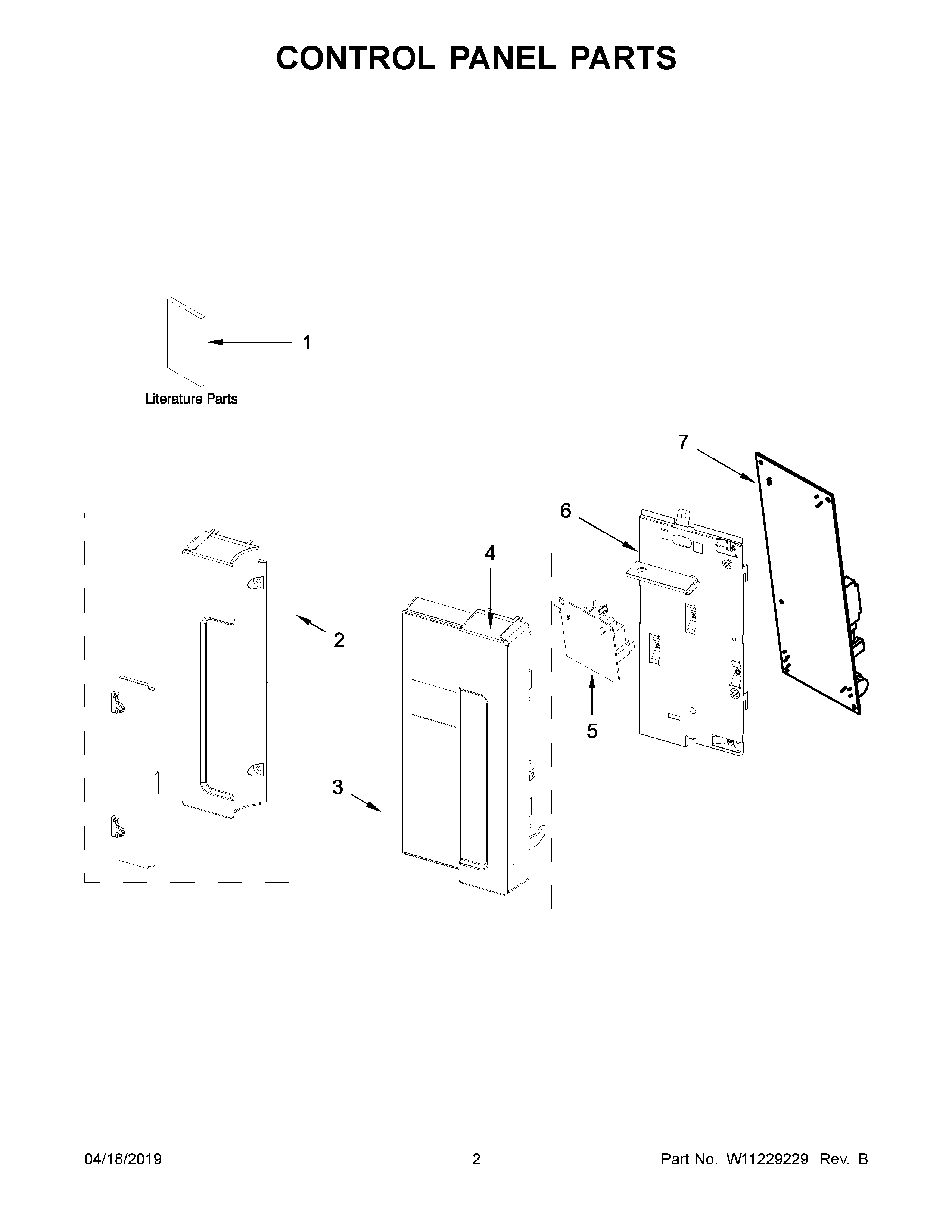

YKMLS311HBL0 02 – CONTROL PANEL PARTS

Products

Position	Product
1B	TECH SHEET
1A	USE AND CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2B	W11227003 Whirlpool Microwave Control Panel
2	W11226999 Whirlpool Microwave Control Panel
2A	W11227002 Whirlpool Control Panel
2C	W11227004 Whirlpool Microwave Control Panel
3A	W11226996 Whirlpool Microwave Control Panel
3B	W11226997 Whirlpool Microwave Control Panel
3	W11226994 Whirlpool Microwave Control Panel
3C	W11226998 Whirlpool Microwave Control Panel
4	W11109987 Whirlpool Microwave Cover Plate
4A	W11083285 Whirlpool Microwave Cover Plate
5	W11363946 Whirlpool Microwave Electronic Control Board
6	W11083284 Whirlpool Microwave Plate
7	PCBA, APPLIANCE CONTROL UNIT
