YKMLS311HBL4 04 – INTERIOR AND VENTILATION PARTS

YKMLS311HBL4 04 – INTERIOR AND VENTILATION PARTS

Written by

in

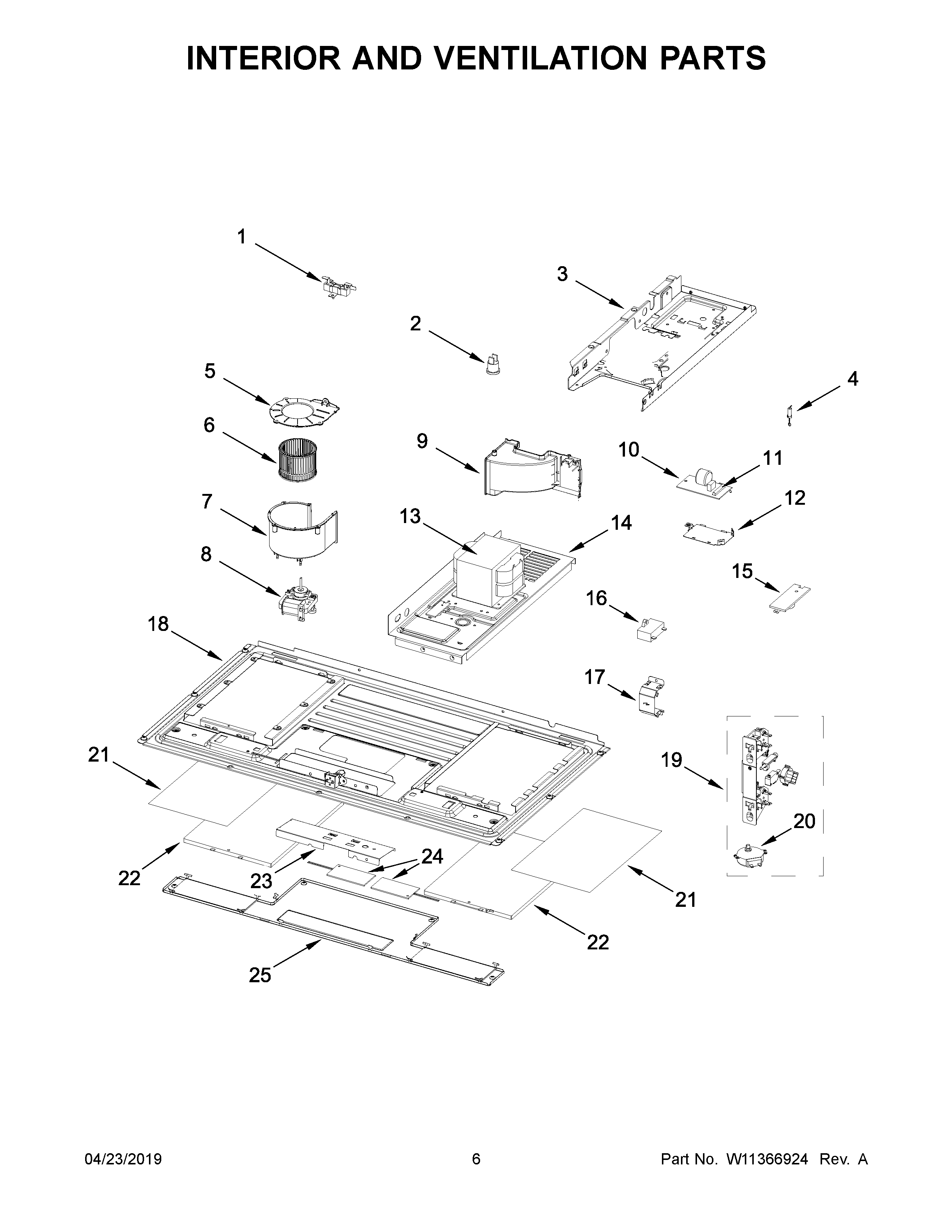

YKMLS311HBL4 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W11259893 Whirlpool Resistor Assembly
2W11213317 Whirlpool Microwave Thermostat
3PLATE, CHASSIS
4W11256462 Whirlpool Microwave Diode
5COVER, COOLING FAN
6W11088354 Whirlpool Microwave Fan Wheel
7W11213349 Whirlpool Microwave Housing
8W11443154 Whirlpool Microwave Fan Motor
9W11088358 Whirlpool Microwave Air Guide
10WPW10531156 Whirlpool Microwave Filter
11FUSE-THRML
12W10313274 Whirlpool Microwave Mounting Bracket
13TRANSFORMER, HIGH VOLTAGE
14CHASSIS, TRANSFORMER
15W10536989 Whirlpool Microwave Thermistor
168206562 Whirlpool Microwave Capacitor MG
17W11095808 Whirlpool Compactor Bracket
18W11159942 Whirlpool Microwave Base
19W11244495 Whirlpool Microwave Interlock
20W11545873 Whirlpool Microwave Turn Motor
21W11282981 Whirlpool Microwave Charcoal Filter
22W11230008 Whirlpool Microwave Filter
23W11086295 Whirlpool Microwave Reflector
24W11322424 Whirlpool Microwave Lamp
25ASSEMBLY, GLASS HOLDER
