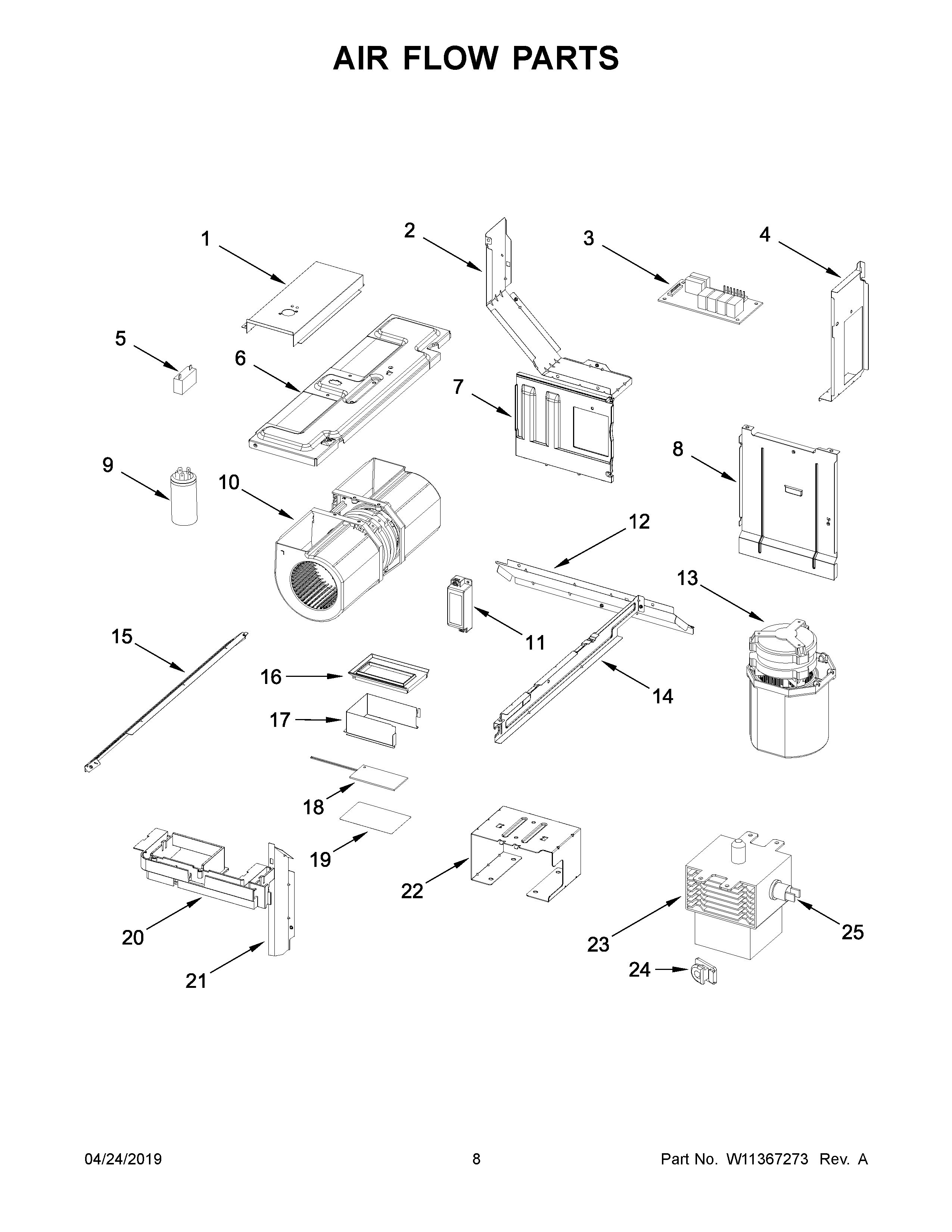

YKMLS311HBS6 05 – AIR FLOW PARTS

YKMLS311HBS6 05 – AIR FLOW PARTS

Written by

in

YKMLS311HBS6 05 – AIR FLOW PARTS

Products

PositionProduct
1OUTLET, CAVITY (BACK)
2AIR DEFLECTOR, RIGHT
3W11133802 Whirlpool Microwave Electronic Control Board
4OUTLET DEFLECTOR, RIGHT
5W11405831 Whirlpool Microwave Capacitor
6CHASSIS, FAN
7W11095794 Whirlpool Deflector Assembly
8W11095804 Whirlpool Deflector Assembly
9W10557536 Whirlpool Microwave Sensor
10W11409093 Whirlpool Microwave Fan Motor
11W11117964 Whirlpool Microwave Transformer
12HOOD DEFLECTOR, BACK
13W11213353 Whirlpool Microwave Fan Motor
14DIVIDER, AIR
15AIR GUIDE, LEFT
16SEAL, LIGHTING
17W11086300 Whirlpool Microwave Reflector
18BOARD, LED LAMP
19FOIL, LAMP
20HOLDER, WIRE
21CHANNEL, HOOD BACK
22HOUSING, TRANFORMER
23W11652048 Whirlpool Magnetron
24W11126543 Whirlpool Microwave Foam Seal
25W11125676 Whirlpool Microwave Thermostat
