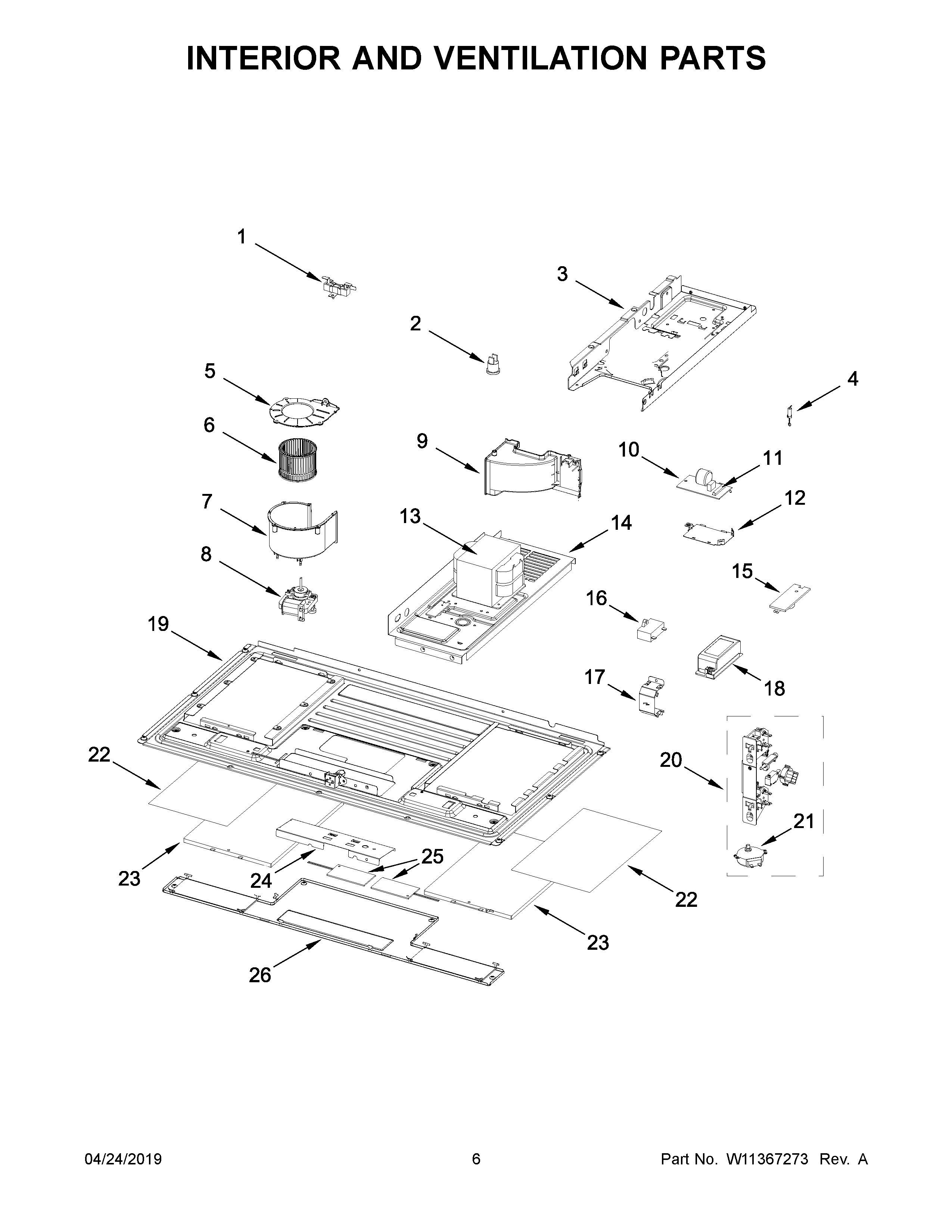

YKMLS311HWH6 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	W11259893 Whirlpool Resistor Assembly
2	W11213317 Whirlpool Microwave Thermostat
3	PLATE, CHASSIS
4	W11256462 Whirlpool Microwave Diode
5	COVER, COOLING FAN
6	W11088354 Whirlpool Microwave Fan Wheel
7	W11213349 Whirlpool Microwave Housing
8	W11443154 Whirlpool Microwave Fan Motor
9	W11088358 Whirlpool Microwave Air Guide
10	WPW10531156 Whirlpool Microwave Filter
11	FUSE-THRML
12	W10313274 Whirlpool Microwave Mounting Bracket
13	W11628655 Whirlpool Microwave HVT Transformer
14	CHASSIS, TRANSFORMER
15	W10536989 Whirlpool Microwave Thermistor
16	8206562 Whirlpool Microwave Capacitor MG
17	W11095808 Whirlpool Compactor Bracket
18	W11219750 Whirlpool Microwave Transformer
19	W11159942 Whirlpool Microwave Base
20	W11244495 Whirlpool Microwave Interlock
21	W11545873 Whirlpool Microwave Turn Motor
22	W11282981 Whirlpool Microwave Charcoal Filter
23	W11230008 Whirlpool Microwave Filter
24	W11086295 Whirlpool Microwave Reflector
25	W11048310 Whirlpool Microwave Lamp
26	ASSEMBLY, GLASS HOLDER
