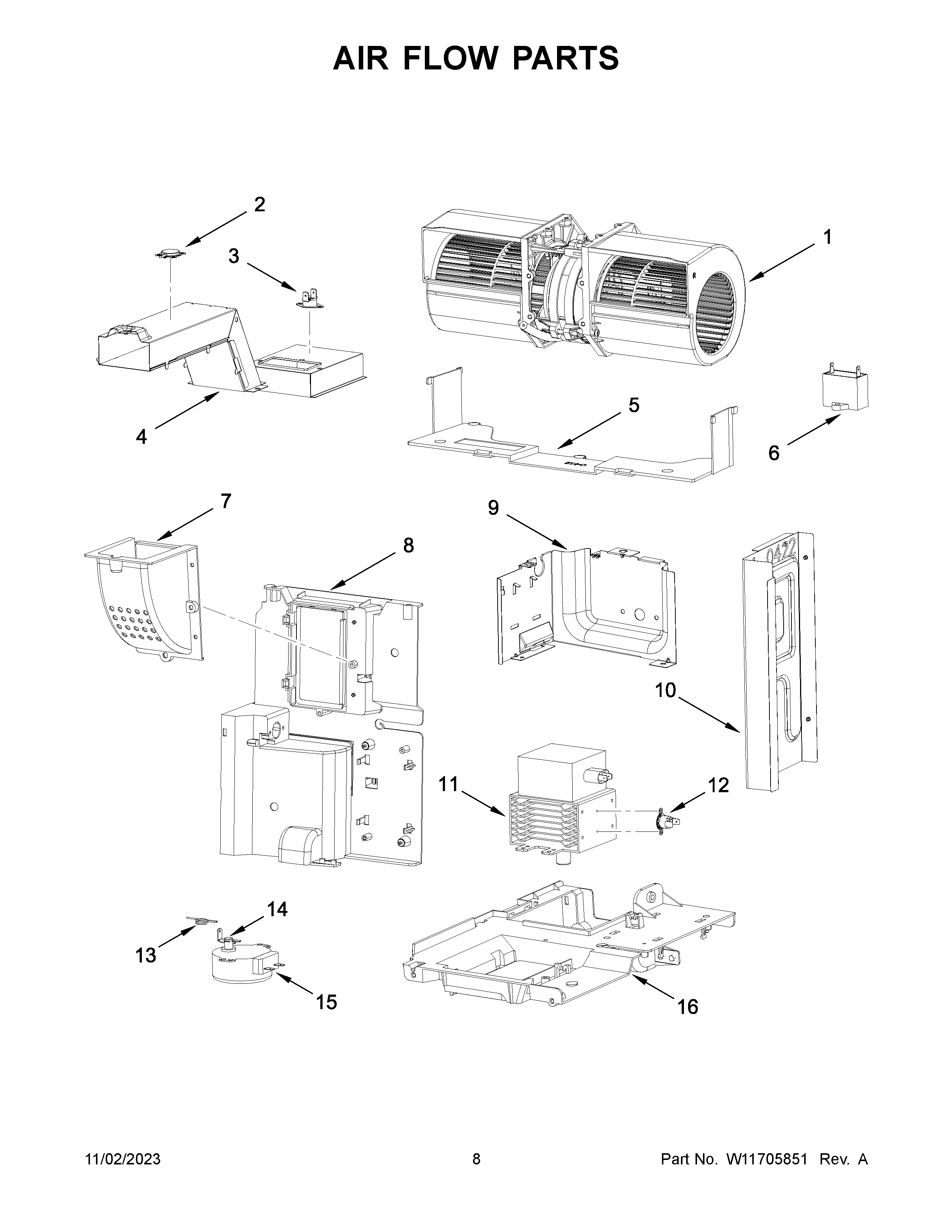

YKMMF330PBS00 05 – AIR FLOW PARTS

Products

Position	Product
1	W11662638 Whirlpool Fan Motor
2	W10557536 Whirlpool Microwave Sensor
3	W11661583 Whirlpool Thermostat Fix
4	CHANNEL, CAVITY OUTLET
5	COVER, BOTTOM FAN
6	W11405831 Whirlpool Microwave Capacitor
7	AIR CHANNEL, TRANSFORMER
8	AIR CHANNEL, MAGNETRON
9	CHANNEL, RIGHT HOOD
10	W11662662 Whirlpool Air Guide
11	W11391712 Whirlpool Microwave Magnetron
12	W11443128 Whirlpool Thermostat
13	SPRING
14	BLADE-STIR
15	W11590176 Whirlpool Turn Motor
16	PLATE, MAGNETRON SUPPORT
