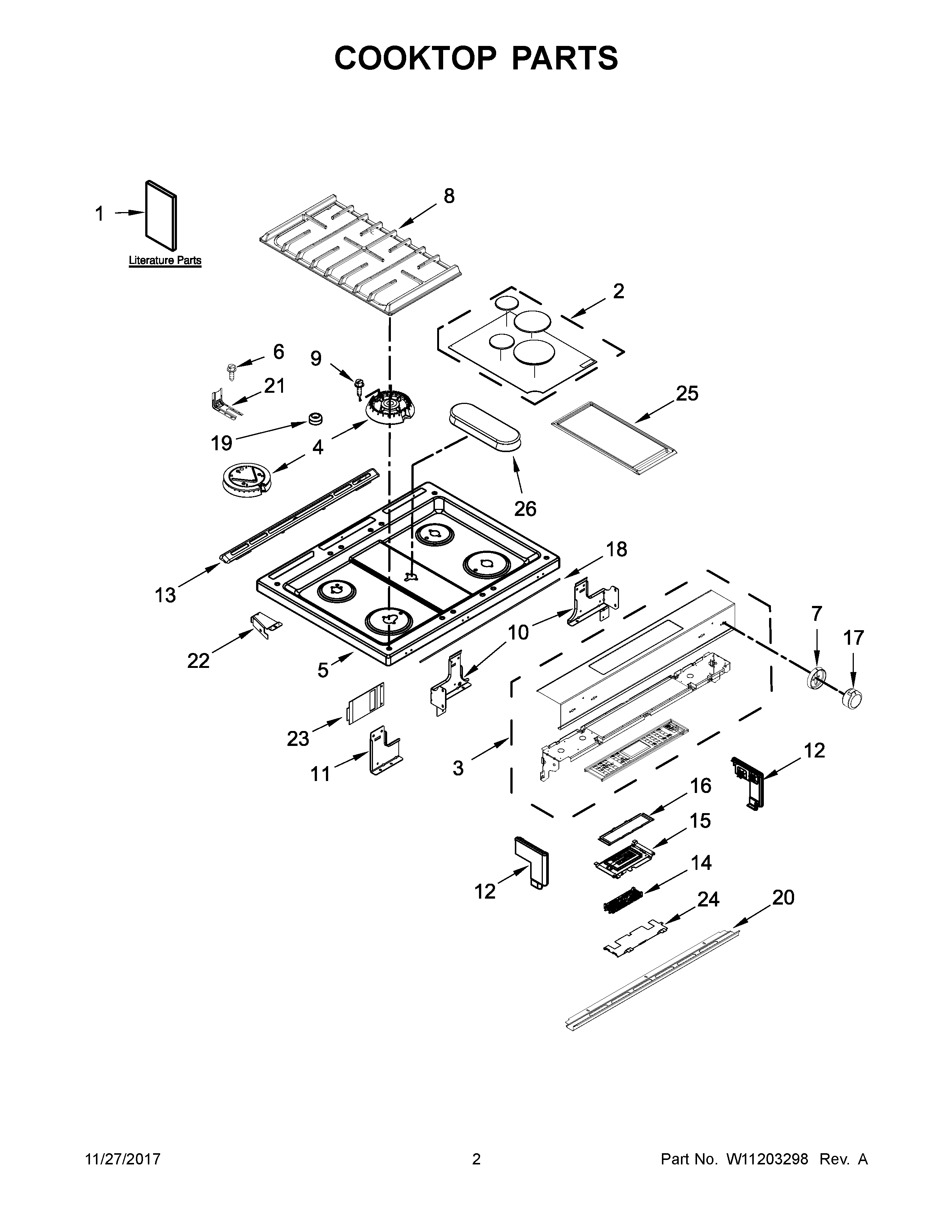

YKSDB900ESS2 02 – COOKTOP PARTS

YKSDB900ESS2 02 – COOKTOP PARTS

Written by

in

YKSDB900ESS2 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10580316 Whirlpool Wire Harness
NIHARNESS, MAIN
NIW11025616 Whirlpool Wire Harness
NIWPW10182767 Whirlpool Wire Tie
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NIW11176109 Whirlpool Wire Harness
1CGUIDE, QUICK START
1AUSE AND CARE GUIDE
1INSTRUCTIONS, INSTALLATION
1DQUICK START GUIDE (FRENCH)
1BSHEET, TECH
2W11244067 Whirlpool Burner Cap
3W10913685 Whirlpool Control Panel
4W11106799 Whirlpool Range Burner Base Surface
4AW10836467 Whirlpool Burner Head
4CWPW10256025 Whirlpool Burner Head
4BWPW10256028 Whirlpool Stove Surface Burner Base
5W11628045 Whirlpool Cooktop
6SCREW, ANTI-TIP KIT
7W10814133 Whirlpool Knob Bezel
8W11228127 Whirlpool Grate Kit
9WP3196557 Whirlpool Screw
10AW10289169 Whirlpool Bracket Support
10W10289170 Whirlpool Support Bracket
11W10598048 Whirlpool Support Bracket
12W10555937 Whirlpool Endcap Panel
12AW10555940 Whirlpool Endcap Panel
13W11170796 Whirlpool Vent Trim
14W11099784 Whirlpool Electronic Control Board + Core
15W11128223 Whirlpool Display
16W10555923 Whirlpool Mounting Bracket
17W10872668 Whirlpool Control Knob
17AW10872674 Whirlpool Knob
18W10802441 Whirlpool Gasket
19W11104127 Whirlpool Bumper Assembly
20W10555934 Whirlpool Mounting Bracket
21W11502257 Whirlpool Anchor Tip
22AW10162252 Whirlpool Bracket Mounting
22W10162253 Whirlpool Mounting Bracket
23W10757531 Whirlpool Shield
24W10558372 Whirlpool Bracket Mounting
25W10432544 Whirlpool Range Griddle
26W11162114 Whirlpool Top Burner Assembly
