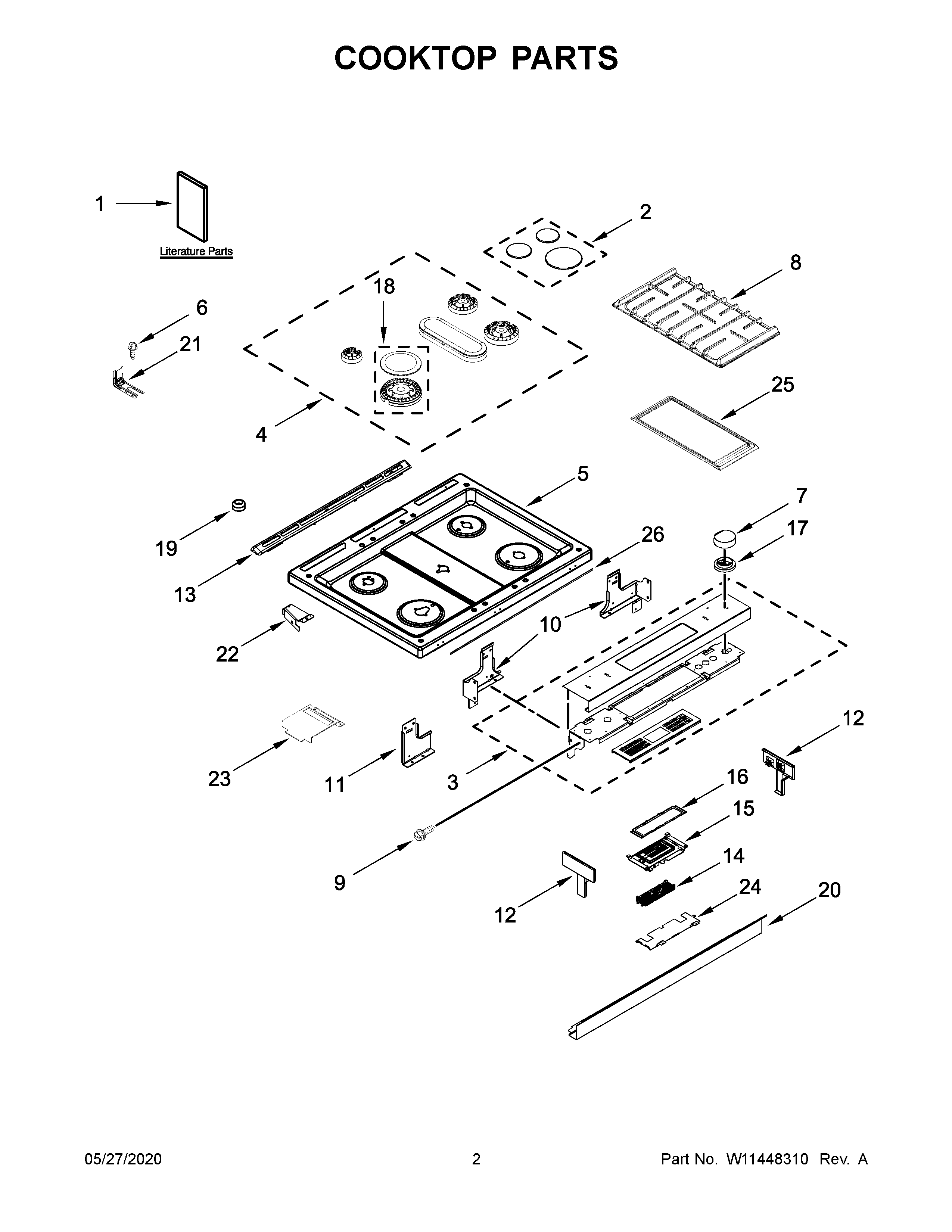

YKSDB900ESS4 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
NI	W11175842 Whirlpool Suppressor
NI	W11176109 Whirlpool Wire Harness
NI	W10580316 Whirlpool Wire Harness
NI	HA
NI	W11025616 Whirlpool Wire Harness
1A	INSTALLATION INSTRUCTIONS
1B	SHEET, TECH
1C	GUIDE, QUICK START
1D	QUICK START GUIDE (FRENCH)
1	USE AND CARE GUIDE
1E	WIRING DIAGRAM
2	W11605764 Whirlpool Burner Cap
3	W10913685 Whirlpool Control Panel
4	W11662377 Whirlpool Range Burner Head
5	W11445310 Whirlpool Cooktop Assembly
6	SCREW, ANTI-TIP KIT
7A	W10872668 Whirlpool Control Knob
7	W10872674 Whirlpool Knob
8	W11241056 Whirlpool Grate Kit
9	WP3196557 Whirlpool Screw
10	W10289170 Whirlpool Support Bracket
10	W10289169 Whirlpool Bracket Support
11	W10598048 Whirlpool Support Bracket
12	W10555937 Whirlpool Endcap Panel
12A	W10555940 Whirlpool Endcap Panel
13	W11170796 Whirlpool Vent Trim
14	W11099784 Whirlpool Electronic Control Board + Core
15	W11128223 Whirlpool Display
16	W10555923 Whirlpool Mounting Bracket
17	W10814133 Whirlpool Knob Bezel
18	W11443594 Whirlpool Burner Head
19	W11690600 Whirlpool Bumper
20	W10743276 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	W11355689 Whirlpool Shield
24	W10558372 Whirlpool Bracket Mounting
25	W10432544 Whirlpool Range Griddle
26	W10802441 Whirlpool Gasket
