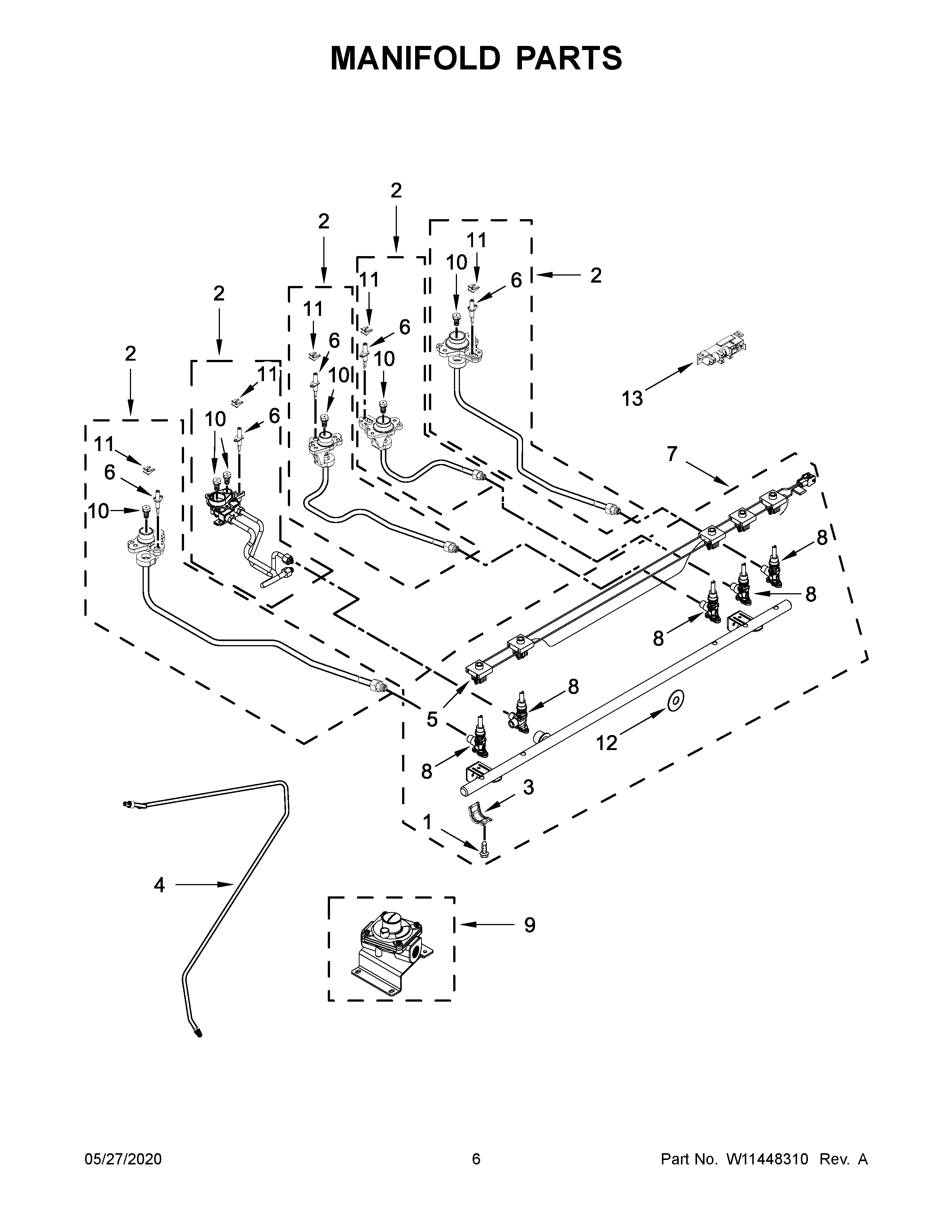

YKSDB900ESS4 04 – MANIFOLD PARTS

YKSDB900ESS4 04 – MANIFOLD PARTS

Written by

in

YKSDB900ESS4 04 – MANIFOLD PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11436985 Whirlpool Orifice Spud
NIWPW10182767 Whirlpool Wire Tie
1W10295997 Whirlpool Screw
2BW11186526 Whirlpool Range Orifice Holder
2AW11186509 Whirlpool Orifice Holder
2W11445309 Whirlpool Orifice Holder
2DW11186518 Whirlpool Range Orifice Holder
2CW11186522 Whirlpool Orifice Holder
3W10949105 Whirlpool Mounting Bracket
4W10552945 Whirlpool Gas Tubing
5W11376663 Whirlpool Wire Harness
6BW11643126 Whirlpool Surface Igniter
6AW11666003 Whirlpool Range Surface Igniter
6W11675301 Whirlpool Range Surface Igniter
6CW11661897 Whirlpool Range Surface Igniter
7W11679667 Whirlpool Manifold
8AW10873134 Whirlpool Burner Valve
8BW11241561 Whirlpool Burner Valve
8CW11233561 Whirlpool Burner Valve
8W11109973 Whirlpool Burner Valve
9W10661850 Whirlpool Regulator
10EORIFICE (8K) (CENTER)
10AORIFICE (1.45K) (LEFT FRONT)
10ORIFICE (18K) (LEFT FRONT)
10BW11677633 Whirlpool Spud Orifice
10CW10849717 Whirlpool Orifice Spud
10DW10849714 Whirlpool Orifice Spud
11W11684564 Whirlpool Clip Assembly
12W10140571 Whirlpool Seal Switch
13WPW10475149 Whirlpool Spark Module
