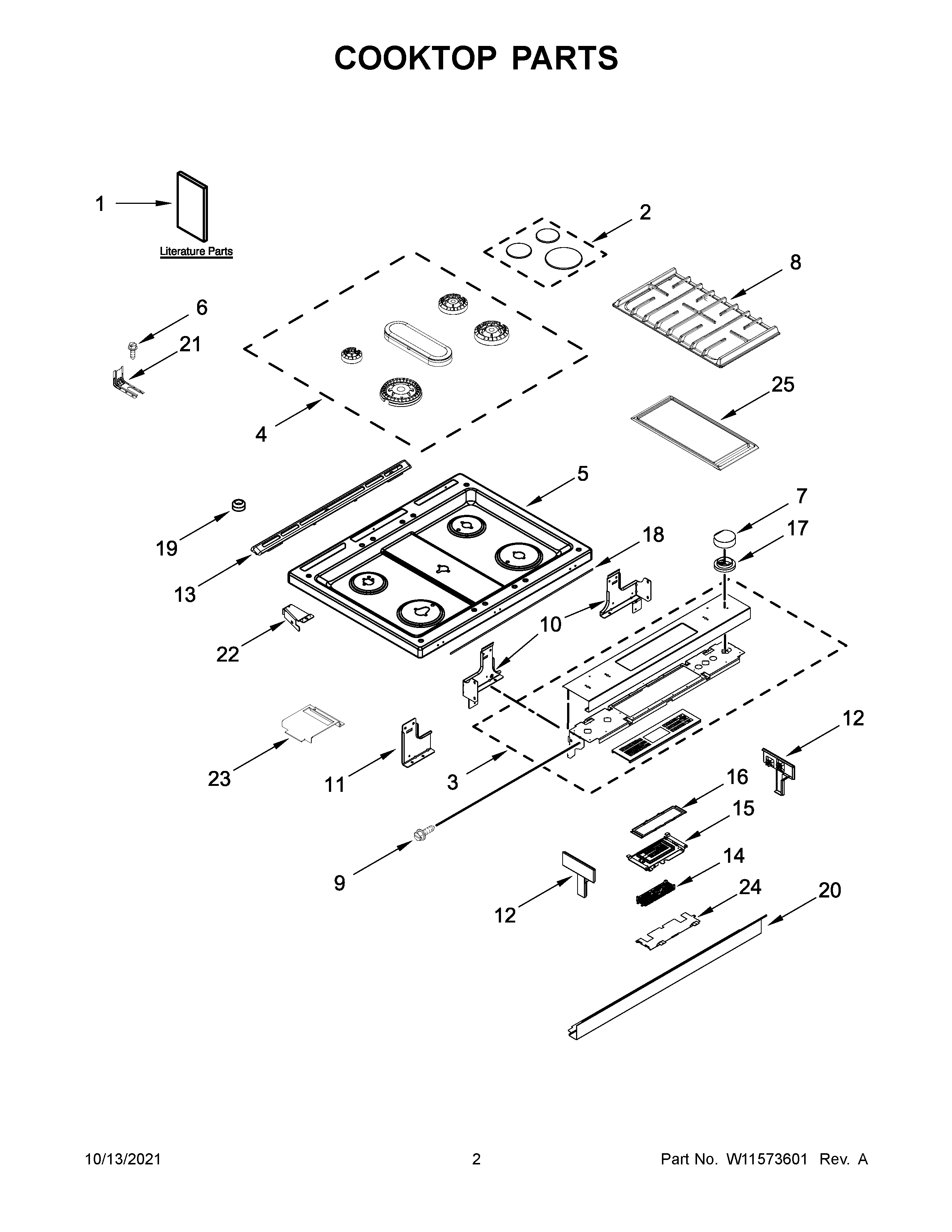

YKSDB900ESS5 02 – COOKTOP PARTS

YKSDB900ESS5 02 – COOKTOP PARTS

Written by

in

YKSDB900ESS5 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11175842 Whirlpool Suppressor
NIW10580316 Whirlpool Wire Harness
NIW11176109 Whirlpool Wire Harness
NIHARNESS, MAIN
NIW11025616 Whirlpool Wire Harness
NI3400964 Whirlpool Oven Clip
NI16515 Whirlpool Clip
1USE AND CARE GUIDE
1ATECH SHEET
1BQUICK START GUIDE (ENGLISH)
2W11605764 Whirlpool Burner Cap
3W10913685 Whirlpool Control Panel
4W11662377 Whirlpool Range Burner Head
5W11445310 Whirlpool Cooktop Assembly
6SCREW, ANTI-TIP KIT
7W10872674 Whirlpool Knob
7AW10872668 Whirlpool Control Knob
8W11241056 Whirlpool Grate Kit
9WP3196557 Whirlpool Screw
10W10289170 Whirlpool Support Bracket
10AW10289169 Whirlpool Bracket Support
11W10598048 Whirlpool Support Bracket
12AW10555940 Whirlpool Endcap Panel
12W10555937 Whirlpool Endcap Panel
13W11170796 Whirlpool Vent Trim
14W11099784 Whirlpool Electronic Control Board + Core
15W11128223 Whirlpool Display
16W10555923 Whirlpool Mounting Bracket
17W10814133 Whirlpool Knob Bezel
18W10802441 Whirlpool Gasket
19W11690600 Whirlpool Bumper
20W10743276 Whirlpool Mounting Bracket
21W11502257 Whirlpool Anchor Tip
22AW10162252 Whirlpool Bracket Mounting
22W10162253 Whirlpool Mounting Bracket
23W11355689 Whirlpool Shield
24W10558372 Whirlpool Bracket Mounting
25W10432544 Whirlpool Range Griddle
