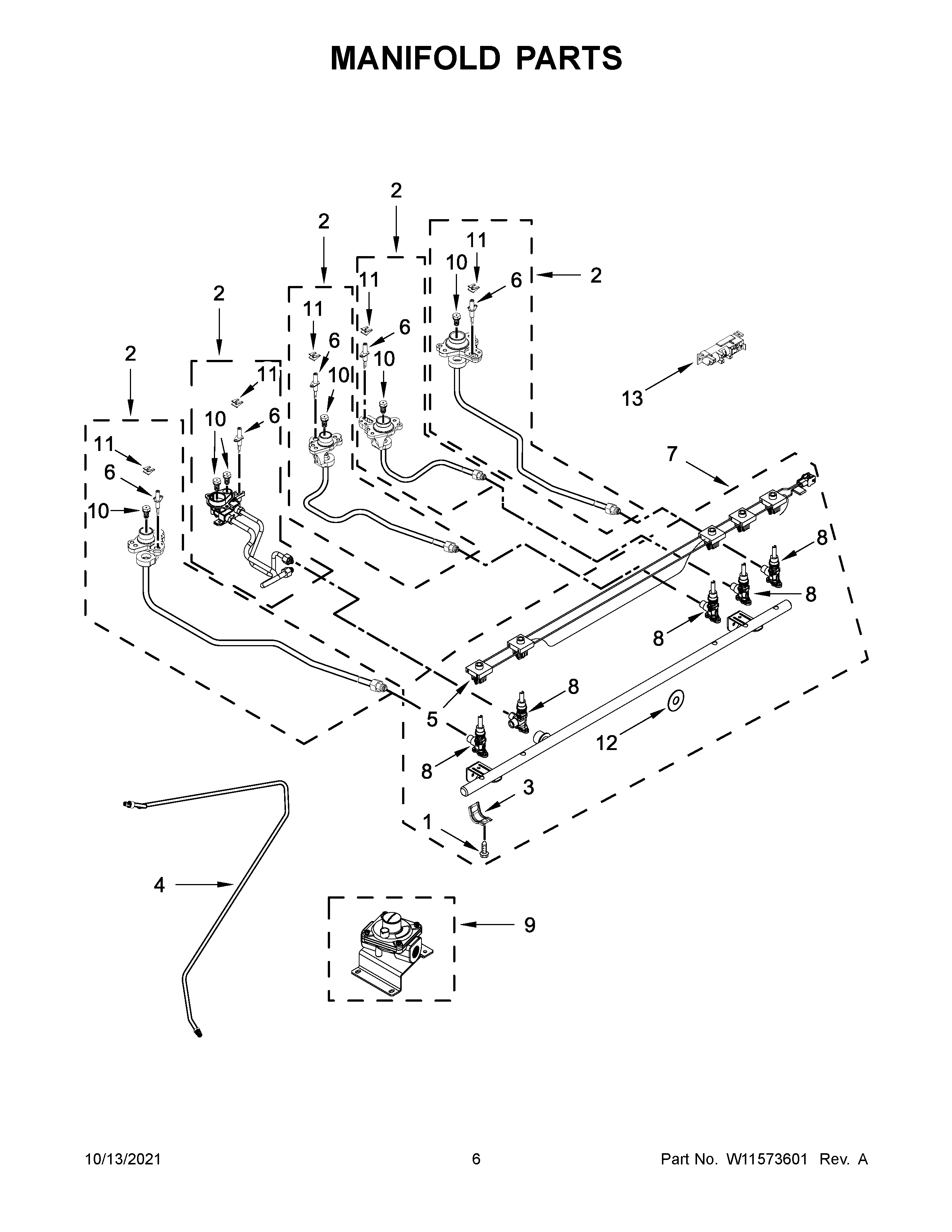

YKSDB900ESS5 04 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11436985 Whirlpool Orifice Spud
NI	WPW10182767 Whirlpool Wire Tie
1	W10295997 Whirlpool Screw
2B	W11186526 Whirlpool Range Orifice Holder
2A	W11186509 Whirlpool Orifice Holder
2	W11445309 Whirlpool Orifice Holder
2D	W11186518 Whirlpool Range Orifice Holder
2C	W11186522 Whirlpool Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10552945 Whirlpool Gas Tubing
5	W11376663 Whirlpool Wire Harness
6B	W11643126 Whirlpool Surface Igniter
6A	W11666003 Whirlpool Range Surface Igniter
6	W11675301 Whirlpool Range Surface Igniter
6C	W11661897 Whirlpool Range Surface Igniter
7	W11679667 Whirlpool Manifold
8A	W10873134 Whirlpool Burner Valve
8B	W11241561 Whirlpool Burner Valve
8C	W11233561 Whirlpool Burner Valve
8	W11109973 Whirlpool Burner Valve
9	W10661850 Whirlpool Regulator
10E	ORIFICE (8K) (CENTER)
10A	ORIFICE (1.45K) (LEFT FRONT)
10	ORIFICE (18K) (LEFT FRONT)
10B	W11677633 Whirlpool Spud Orifice
10C	W10849717 Whirlpool Orifice Spud
10D	W10849714 Whirlpool Orifice Spud
11	W11684564 Whirlpool Clip Assembly
12	W10140571 Whirlpool Seal Switch
13	WPW10475149 Whirlpool Spark Module
