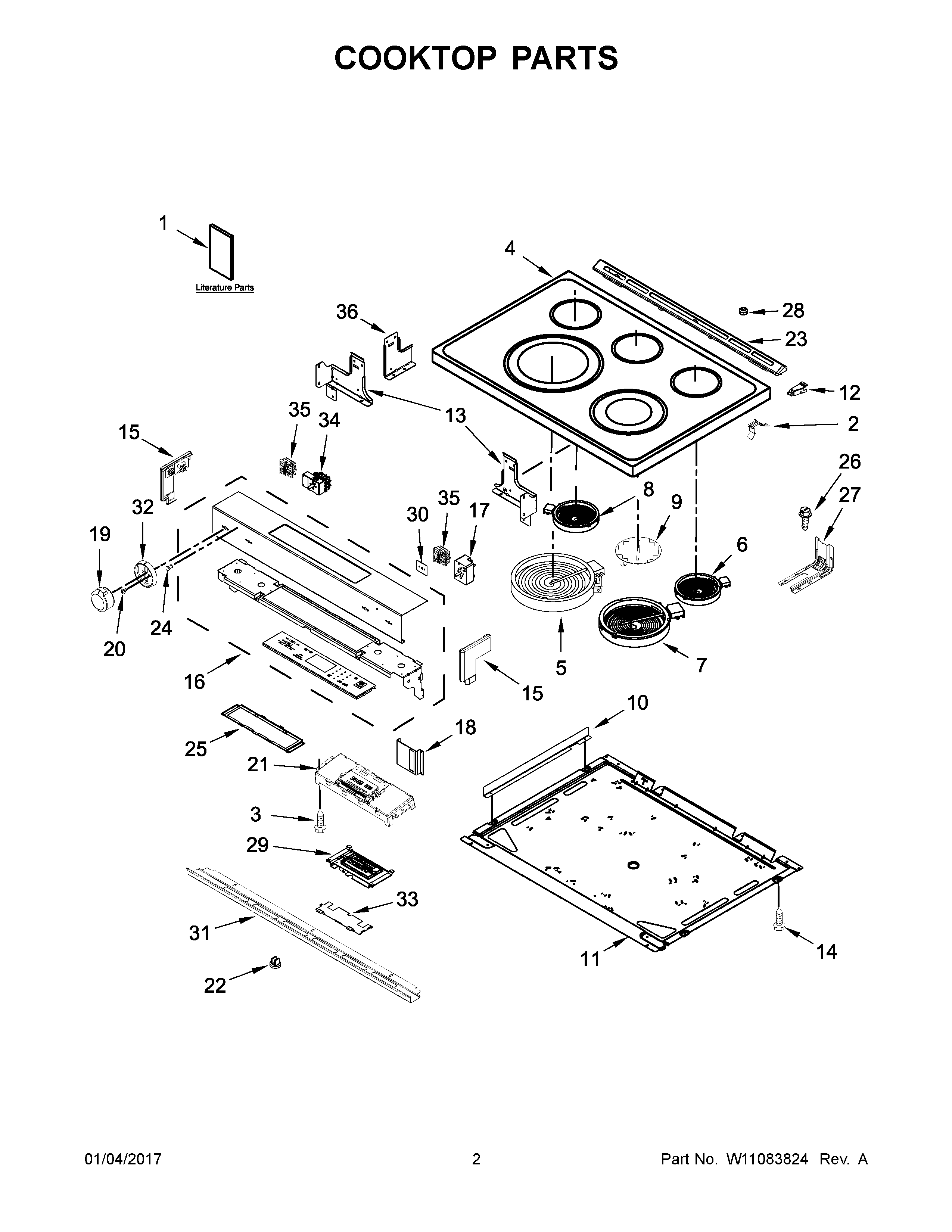

YKSEB900ESS1 02 – COOKTOP PARTS

Products

Position	Product
NI	W11025616 Whirlpool Wire Harness
NI	W11226786 Whirlpool Wire Harness
NI	W10664316 Whirlpool Clip
NI	WPL W10580307
NI	W10580316 Whirlpool Wire Harness
NI	W11226772 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10580303 Whirlpool Wire Harness
1F	QUICK START GUIDE (FRENCH)
1B	SHEET, TECH
1A	USE AND CARE GUIDE
1G	WIRING DIAGRAM
1	INSTRUCTIONS, INSTALLATION
1D	Safer Cooking Tips (French)
1C	SAFER COOKING TIPS (ENGLISH
1E	QUICK START GUIDE
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4A	W10814038 Whirlpool Cooktop Assembly
4	W10814035 Whirlpool Cooktop
5	W11563195 Whirlpool Surface Element
6	ELMNT-SURF
7	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8	WPW10342780 Whirlpool Surface Element
9	W11041453 Whirlpool Surface Element
10	W10613286 Whirlpool Bracket
11	W10536275 Whirlpool Pan
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13A	W10289170 Whirlpool Support Bracket
13	W10289169 Whirlpool Bracket Support
14	W11244557 Whirlpool Screw
15A	W10555937 Whirlpool Endcap Panel
15C	W10555940 Whirlpool Endcap Panel
15	W10555935 Whirlpool Endcap Panel
15B	W10555938 Whirlpool Endcap Panel
16	CONSOLE (WHITE)
16A	W10920246 Whirlpool Control Panel
17	W10911303 Whirlpool Infinite Switch
18	W10757531 Whirlpool Shield
19B	W11568640 Whirlpool Knob
19A	W11628652 Whirlpool Knob
19	W10877180 Whirlpool Control Knob
19C	W10877188 Whirlpool Knob
20	WP3400882 Whirlpool Screw
21	W11084243 Whirlpool Electronic Control Board
22	W11025100 Whirlpool Insert
23	W10636527 Whirlpool Vent Trim
23A	W11170796 Whirlpool Vent Trim
24	WP3196068 Whirlpool Light Lens
25	W10555923 Whirlpool Mounting Bracket
26	SCREW, ANTI-TIP KIT
27	W11502257 Whirlpool Anchor Tip
28	W11104127 Whirlpool Bumper Assembly
29	W10909684 Whirlpool Display
30	GASKET, SWITCH
31	CONSOLE, LOWER PANEL (WHITE)
31A	W10555934 Whirlpool Mounting Bracket
32	W10813558 Whirlpool Knob Bezel
33	W10558372 Whirlpool Bracket Mounting
34	W11129442 Whirlpool Surface Infinite Element Switch
35	W10917724 Whirlpool Infinite Switch
36	W10598048 Whirlpool Support Bracket
