YKSEB900ESS2 02 – COOKTOP PARTS
Written by
in

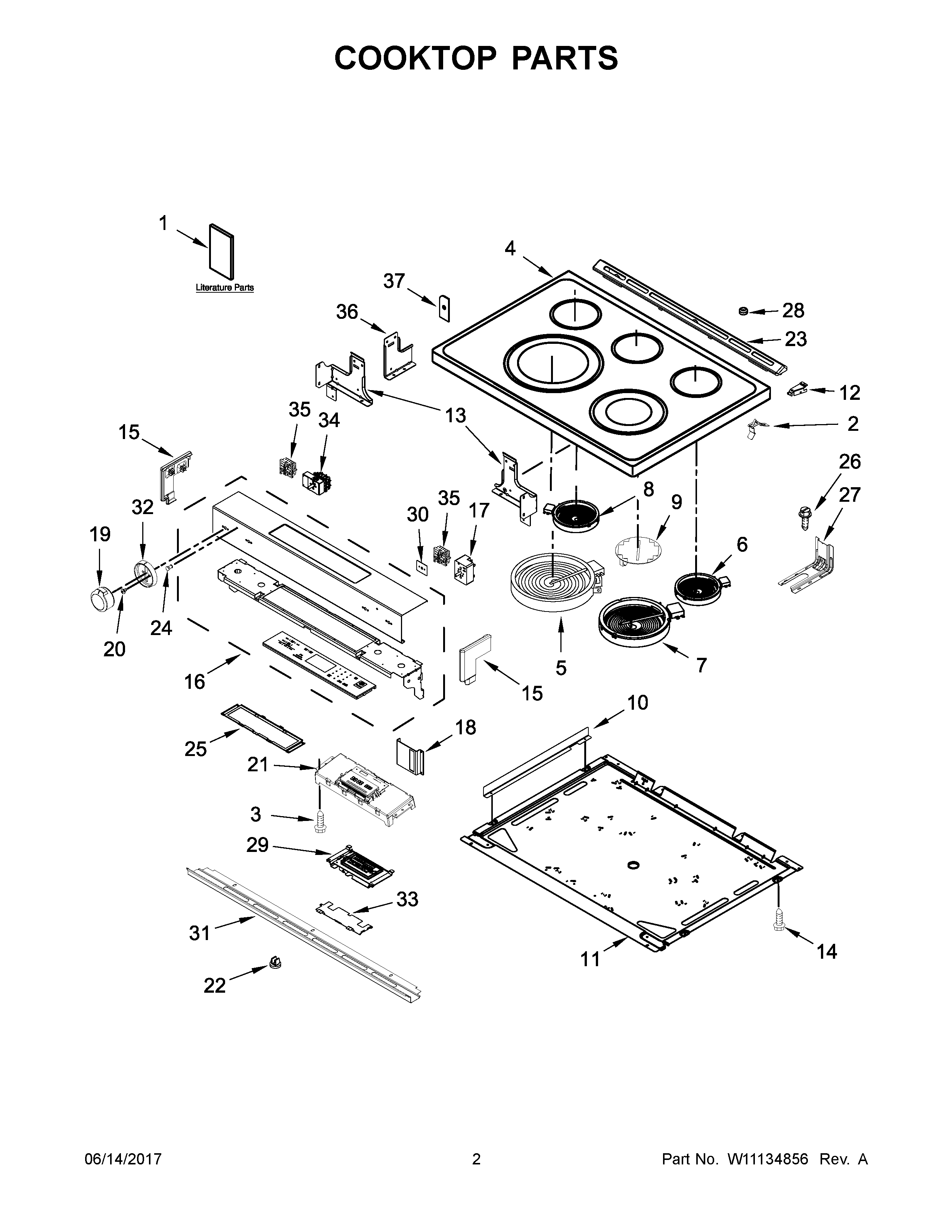

YKSEB900ESS2 02 – COOKTOP PARTS
Products
Position
Product
NI
W11226772 Whirlpool Wire Harness
NI
WPL W10580307
NI
3400964 Whirlpool Oven Clip
NI
W11025616 Whirlpool Wire Harness
NI
W10580303 Whirlpool Wire Harness
NI
W10580316 Whirlpool Wire Harness
NI
W11226786 Whirlpool Wire Harness
NI
W10664316 Whirlpool Clip
NI
CABINET (NOT A SERVICEABLE PART)
1B
SHEET, TECH
1E
QUICK START GUIDE
1
INSTRUCTIONS, INSTALLATION
1A
USE AND CARE GUIDE
1G
WIRING DIAGRAM
1F
QUICK START GUIDE (FRENCH)
1C
SAFER COOKING TIPS (ENGLISH
1D
Safer Cooking Tips (French)
2
WPW10225448 Whirlpool Spring Assembly
3
SCREW
4
W10814035 Whirlpool Cooktop
4A
W10814038 Whirlpool Cooktop Assembly
5
W11563195 Whirlpool Surface Element
6
ELMNT-SURF
7
WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8
WPW10342780 Whirlpool Surface Element
9
W11041453 Whirlpool Surface Element
10
W10613286 Whirlpool Bracket
11
W10536275 Whirlpool Pan
12
W10162253 Whirlpool Mounting Bracket
12A
W10162252 Whirlpool Bracket Mounting
13
W10289169 Whirlpool Bracket Support
13A
W10289170 Whirlpool Support Bracket
14
W11244557 Whirlpool Screw
15A
W10555937 Whirlpool Endcap Panel
15
W10555935 Whirlpool Endcap Panel
15C
W10555940 Whirlpool Endcap Panel
15B
W10555938 Whirlpool Endcap Panel
16A
W10920246 Whirlpool Control Panel
16
CONSOLE (WHITE)
17
W10911303 Whirlpool Infinite Switch
18
W10757531 Whirlpool Shield
19B
W11568640 Whirlpool Knob
19A
W11628652 Whirlpool Knob
19C
W10877188 Whirlpool Knob
19
W10877180 Whirlpool Control Knob
20
WP3400882 Whirlpool Screw
21
W11084243 Whirlpool Electronic Control Board
22
W11025100 Whirlpool Insert
23A
W11170796 Whirlpool Vent Trim
23
W10636527 Whirlpool Vent Trim
24
WP3196068 Whirlpool Light Lens
25
W10555923 Whirlpool Mounting Bracket
26
SCREW, ANTI-TIP KIT
27
W11502257 Whirlpool Anchor Tip
28
W11104127 Whirlpool Bumper Assembly
29
W11128223 Whirlpool Display
30
GASKET, SWITCH
31A
W10555934 Whirlpool Mounting Bracket
31
CONSOLE, LOWER PANEL (WHITE)
32
W10813558 Whirlpool Knob Bezel
33
W10558372 Whirlpool Bracket Mounting
34
W11129442 Whirlpool Surface Infinite Element Switch
35
W10917724 Whirlpool Infinite Switch
36
W10598048 Whirlpool Support Bracket
37
W10882900 Whirlpool Gasket
←
