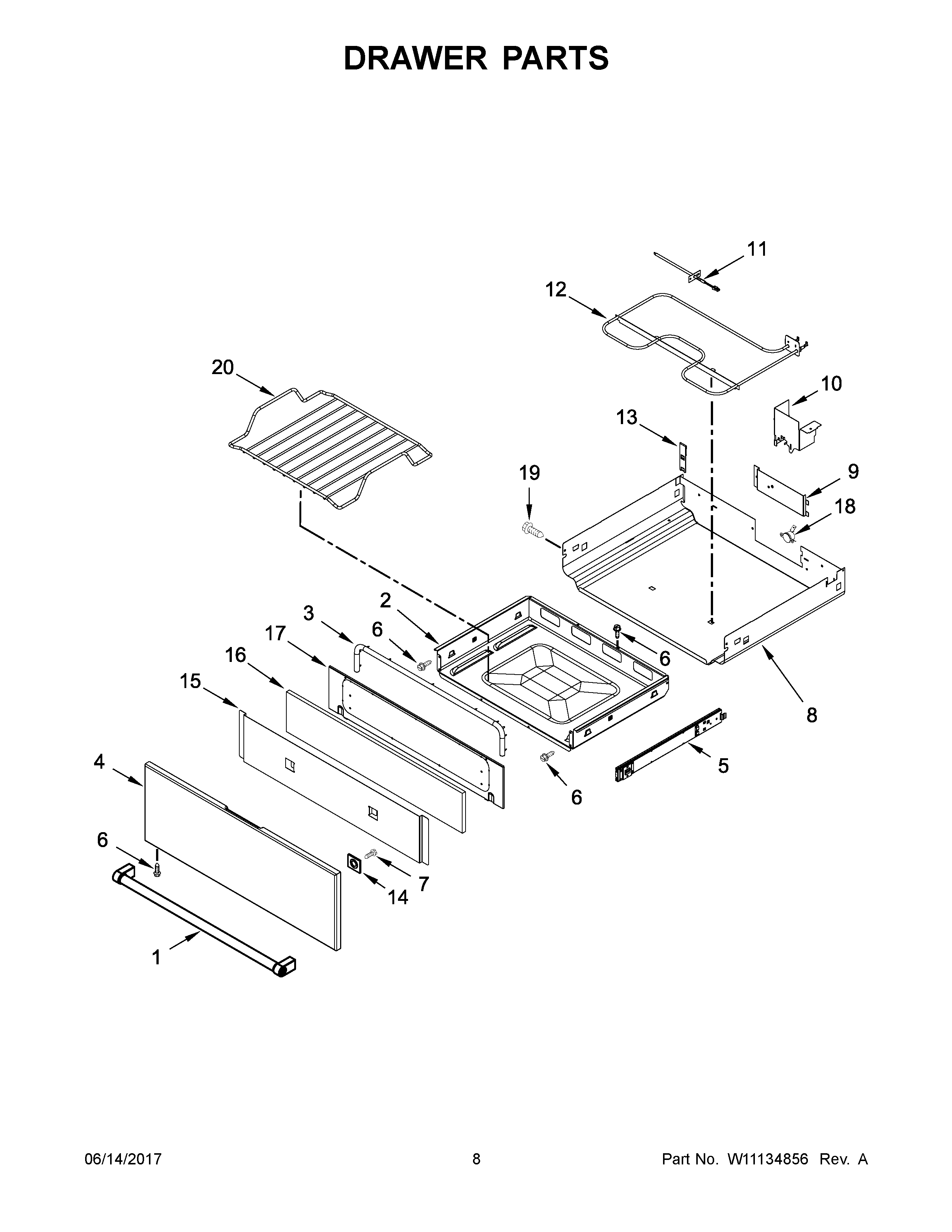

YKSEB900ESS2 05 – DRAWER PARTS

Products

Position	Product
1	W11104399 Whirlpool Door Handle
2	W11036176 Whirlpool Utility Drawer
3	W10550987 Whirlpool Door Seal
4	W10541952 Whirlpool Drawer Panel
4A	W10861216 Whirlpool Drawer Panel
5	W11670722 Whirlpool Drawer Slide
5A	W11670723 Whirlpool Drawer Slide
6	WP355214 Whirlpool Screw
7	WP3400882 Whirlpool Screw
8	W10634260 Whirlpool Utility Drawer
9	COVER, GAS VALVE
10	W10634259 Whirlpool Wire Cover
11	W11676788 Whirlpool Sensor
12	W10541944 Whirlpool Bake Element
13	W10551019 Whirlpool Clip
14	SPACER, HANDLE
15	W10551018 Whirlpool Drawer Panel
16	W11688515 Whirlpool Insulation Assembly
17	W10541947 Whirlpool Drawer Panel
18	W10729897 Whirlpool Thermal Fuse
19	W11169708 Whirlpool Screw
20	W10602493 Whirlpool Oven Rack
