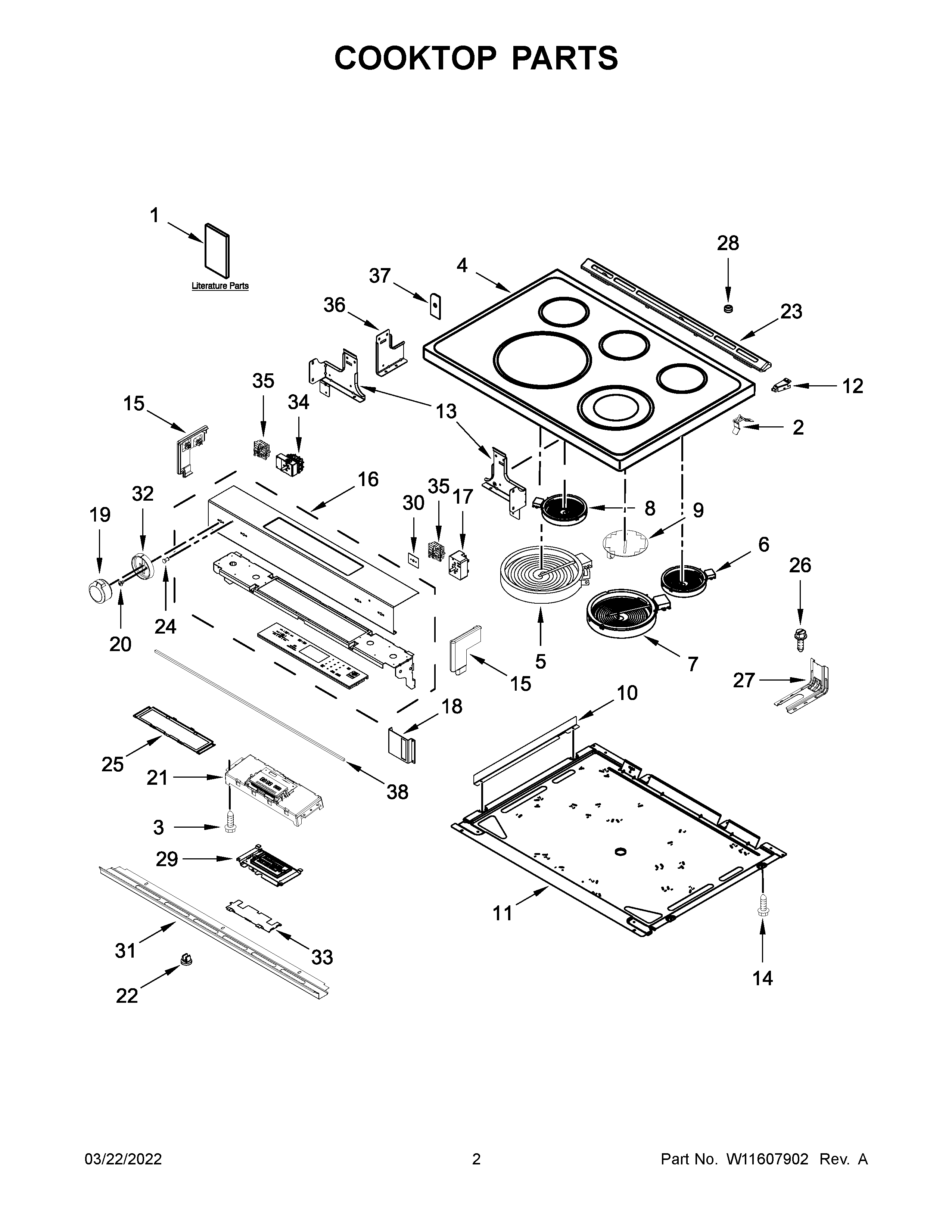

YKSEB900ESS6 02 – COOKTOP PARTS

Products

Position	Product
NI	16515 Whirlpool Clip
NI	W10664316 Whirlpool Clip
NI	W11226773 Whirlpool Wire Harness
NI	W11226775 Whirlpool Wire Harness
NI	W11226786 Whirlpool Wire Harness
NI	W11226772 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPL W11454504
NI	3400964 Whirlpool Oven Clip
1B	QUICK START GUIDE
1	OWNERS MANUAL
1A	TECH SHEET
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10814038 Whirlpool Cooktop Assembly
5	W11563195 Whirlpool Surface Element
6	ELMNT-SURF
7	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8	WPW10342780 Whirlpool Surface Element
9	W11041453 Whirlpool Surface Element
10	BRACKET, RADIANT
11	W10536275 Whirlpool Pan
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13	W10289170 Whirlpool Support Bracket
13A	W10289169 Whirlpool Bracket Support
14	W11244557 Whirlpool Screw
15A	W10555940 Whirlpool Endcap Panel
15	W10555937 Whirlpool Endcap Panel
16	W10920246 Whirlpool Control Panel
17	W10911303 Whirlpool Infinite Switch
18	W11355689 Whirlpool Shield
19	W10877180 Whirlpool Control Knob
19C	W10877188 Whirlpool Knob
19A	W11628652 Whirlpool Knob
19B	W11568640 Whirlpool Knob
20	WP3400882 Whirlpool Screw
21	W11084243 Whirlpool Electronic Control Board
22	W11025100 Whirlpool Insert
23	W11170796 Whirlpool Vent Trim
24	WP3196068 Whirlpool Light Lens
25	W10555923 Whirlpool Mounting Bracket
26	SCREW, ANTI-TIP KIT
27	W11502257 Whirlpool Anchor Tip
28	W11104127 Whirlpool Bumper Assembly
29	W11128223 Whirlpool Display
30	GASKET, SWITCH
31	W10555934 Whirlpool Mounting Bracket
32	W10813558 Whirlpool Knob Bezel
33	W10558372 Whirlpool Bracket Mounting
34	W11129442 Whirlpool Surface Infinite Element Switch
35	W10917724 Whirlpool Infinite Switch
36	W10598048 Whirlpool Support Bracket
37	W10882900 Whirlpool Gasket
38	W10802441 Whirlpool Gasket
