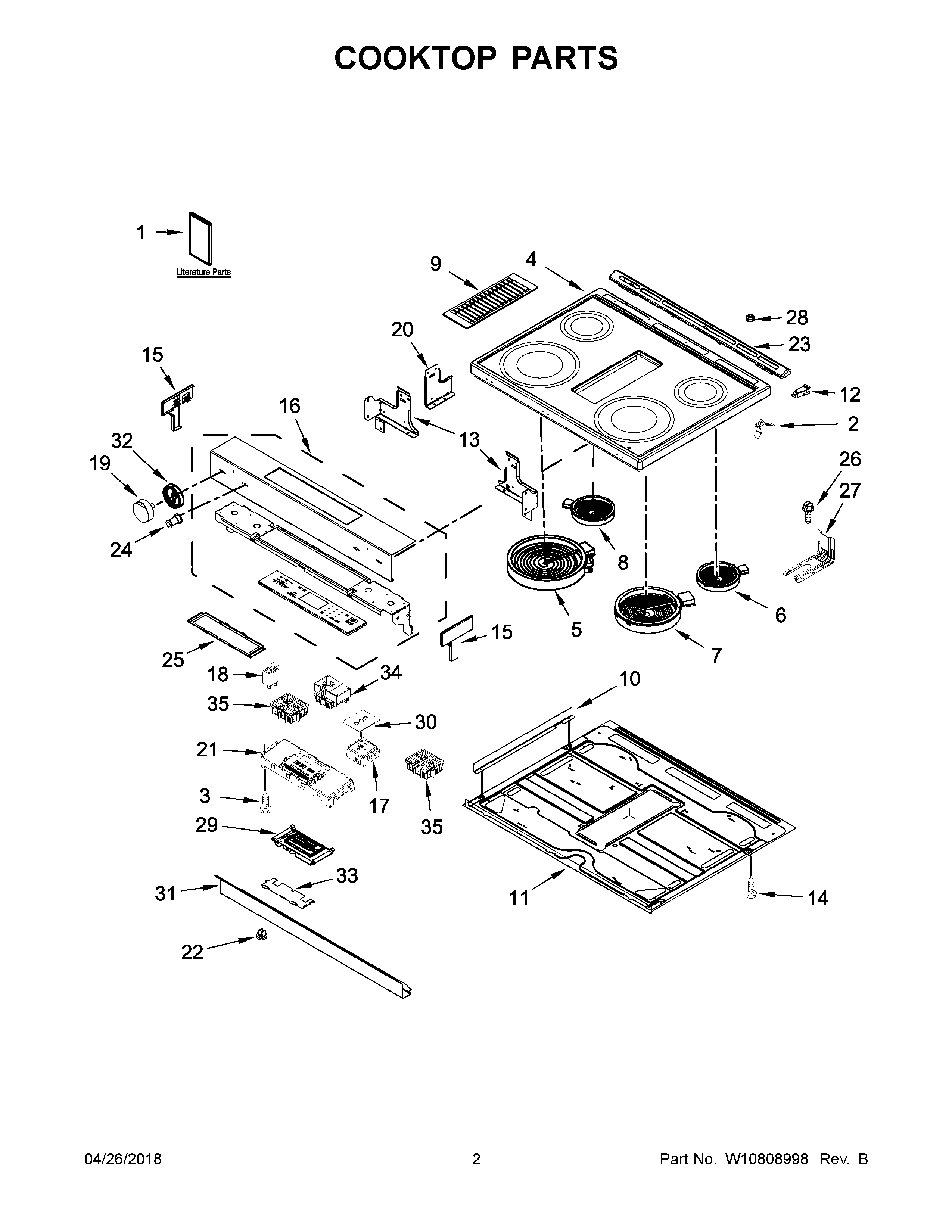

YKSEG950ESS0 02 – COOKTOP PARTS
Written by
in
YKSEG950ESS0 02 – COOKTOP PARTS
Products
Position
Product
NI
W11226772 Whirlpool Wire Harness
NI
3400964 Whirlpool Oven Clip
NI
W11025616 Whirlpool Wire Harness
NI
W10580254 Whirlpool Wire Harness
NI
W10580264 Whirlpool Wire Harness
NI
W10664316 Whirlpool Clip
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11171878 Whirlpool Wire Harness
1F
QUICK START GUIDE (FRENCH)
1B
SHEET, TECH
1
INSTRUCTIONS, INSTALLATION
1A
USER INSTRUCTIONS
1G
WIRING DIAGRAM
1D
Safer Cooking Tips (French)
1C
SAFER COOKING TIPS (ENGLISH
1E
GUIDE, QUICK START
2
WPW10225448 Whirlpool Spring Assembly
3
SCREW
4
W10813359 Whirlpool Range Cooktop
5
W11517959 Whirlpool Electric Range Radiant Surface Element
6
ELMNT-SURF
7
WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8
WPW10342780 Whirlpool Surface Element
9
W11211500 Whirlpool Grille Assembly
10
W10613286 Whirlpool Bracket
11
PAN, RADIANT
12
W10162253 Whirlpool Mounting Bracket
12A
W10162252 Whirlpool Bracket Mounting
13A
W10289170 Whirlpool Support Bracket
13
W10289169 Whirlpool Bracket Support
14
W11244557 Whirlpool Screw
15A
W10555940 Whirlpool Endcap Panel
15
W10555937 Whirlpool Endcap Panel
16
W10915815 Whirlpool Control Panel
17
W10911303 Whirlpool Infinite Switch
18
WP8523265 Whirlpool Indicator Light
19B
W11568640 Whirlpool Knob
19C
W10696937 Whirlpool Knob
19
W10877180 Whirlpool Control Knob
19A
W11628652 Whirlpool Knob
20
W10598048 Whirlpool Support Bracket
21
W11100515 Whirlpool Stove Control Board + Core
22
W11025100 Whirlpool Insert
23
W11170796 Whirlpool Vent Trim
24
WP3196068 Whirlpool Light Lens
25
W10555923 Whirlpool Mounting Bracket
26
SCREW, ANTI-TIP KIT
27
W11502257 Whirlpool Anchor Tip
28
W11104127 Whirlpool Bumper Assembly
29
WPW10603096 Whirlpool Electronic Control Board + Core
30
GASKET, SWITCH
31
W10743276 Whirlpool Mounting Bracket
32
W10813558 Whirlpool Knob Bezel
33
W10558372 Whirlpool Bracket Mounting
34
SWITCH-INF
35
W10917724 Whirlpool Infinite Switch
←
