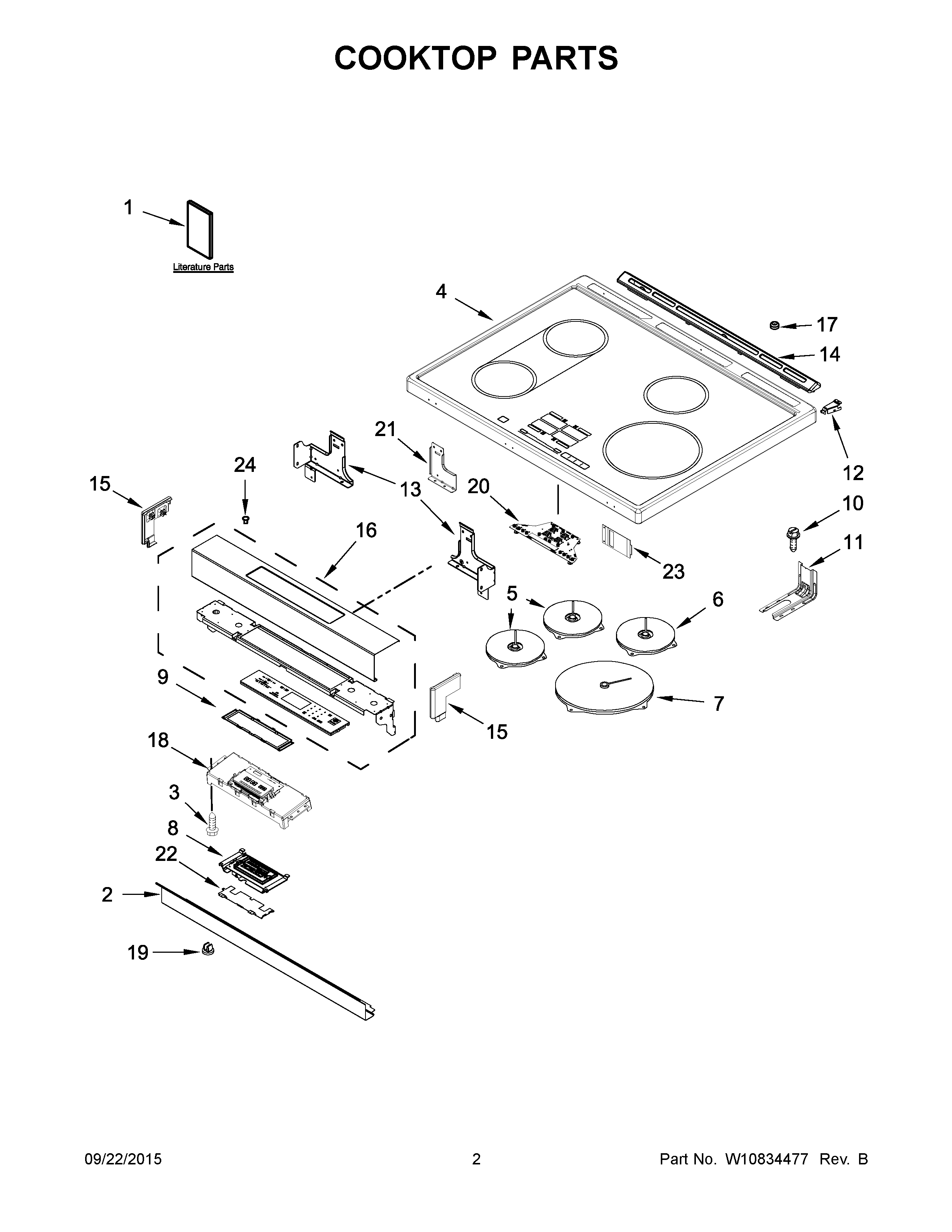

YKSIB900ESS0 02 – COOKTOP PARTS

Products

Position	Product
NI	W11171883 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11226772 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
NI	W10580316 Whirlpool Wire Harness
1E	QUICK START GUIDE
1F	QUICK START GUIDE (FRENCH)
1B	SHEET, TECH
1A	USE AND CARE GUIDE
1G	WIRING DIAGRAM
1	INSTALLATION, INSTRUCTIONS
1C	SAFER COOKING TIPS (ENGLISH
1D	Safer Cooking Tips (French)
2	W10743276 Whirlpool Mounting Bracket
3	SCREW
4	W10808299 Whirlpool Cooktop
5	W11672688 Whirlpool Surface Element
6	WPW10410580 Whirlpool Hot Plate
7	WPW10410578 Whirlpool Hot Plate
8	W10909684 Whirlpool Display
9	W10555923 Whirlpool Mounting Bracket
10	SCREW, ANTI-TIP KIT
11	W11502257 Whirlpool Anchor Tip
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13	W10289169 Whirlpool Bracket Support
13A	W10289170 Whirlpool Support Bracket
14	W11170796 Whirlpool Vent Trim
15	W10555937 Whirlpool Endcap Panel
15A	W10555940 Whirlpool Endcap Panel
16	W10547093 Whirlpool Control Panel
17	W11104127 Whirlpool Bumper Assembly
18	W11100622-includeCORE Whirlpool W11100622 Washer Electronic Control Board + Core
19	W11025100 Whirlpool Insert
20	W11208294 Whirlpool Display
21	W10598048 Whirlpool Support Bracket
22	W10558372 Whirlpool Bracket Mounting
23	W10757531 Whirlpool Shield
24	WP3196068 Whirlpool Light Lens
