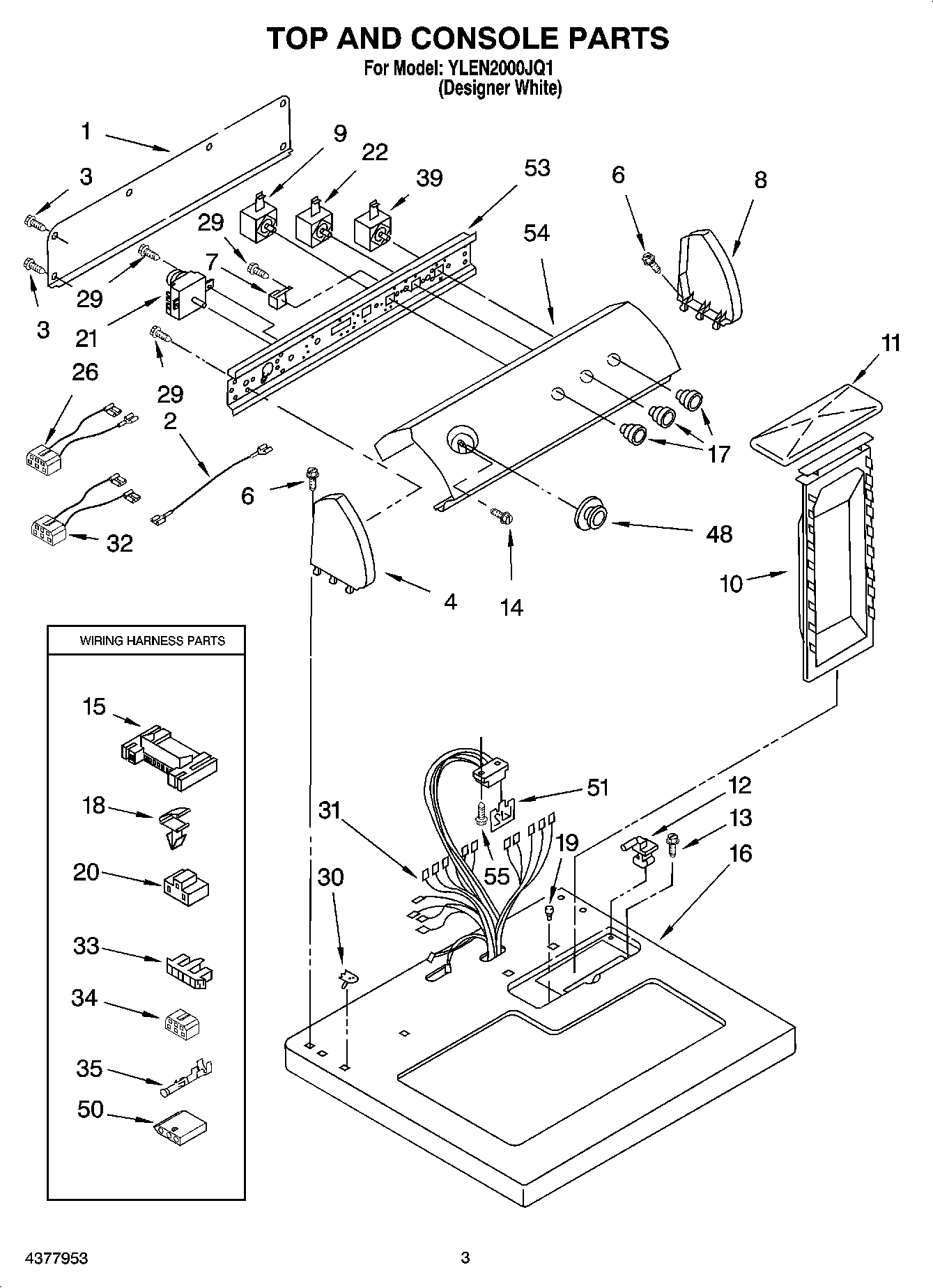

YLEN2000JQ1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	W10103406 Whirlpool Rear Panel
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	W10820038 Whirlpool Endcap
9	WP3399639 Whirlpool Switch
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
17	WP3957799 Whirlpool Knob
18	WP3394427 Whirlpool Clip
19	Bumper, Lint Lid
20	3401144 Whirlpool Connector
21	Timer, 60 Hz.
22	WP3405156 Whirlpool Switch
26	3397695 Whirlpool Wire Harness
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Electric
32	Wire, Jumper (Temperature)
33	Connector, Timer
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
39	WP3398095 Whirlpool Dryer Start Relay
48	WP3957754 Whirlpool Knob Assembly
50	3936144 Whirlpool Connector
51	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
53	Bracket, Control
54	Panel, Control
55	SCREW
55	4392065 Whirlpool Dryer Maintenance Kit
55	3406839 Whirlpool Drying Rack
55	ACCESSORY PARTS
