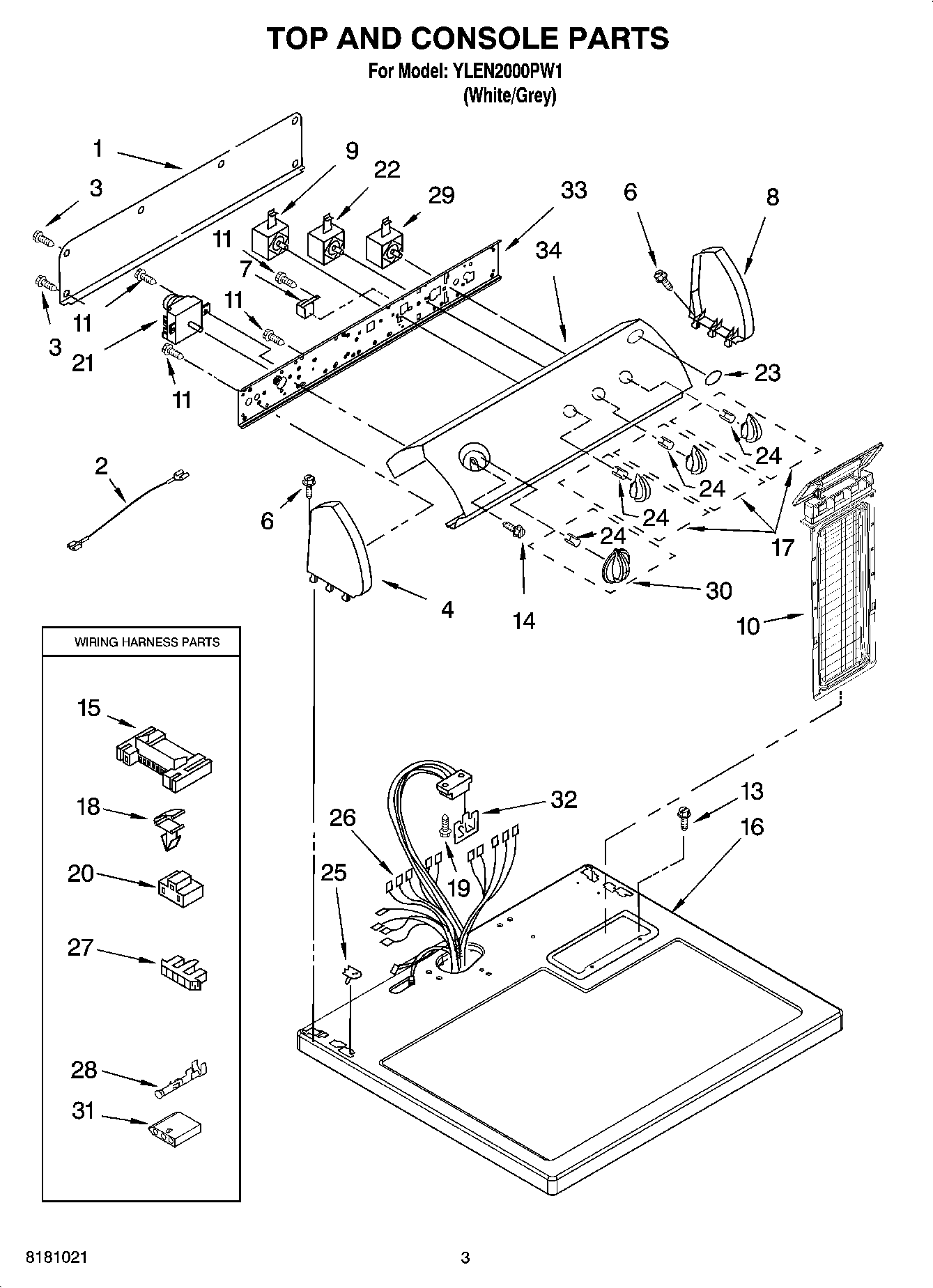

YLEN2000PW1 02 – TOP AND CONSOLE PARTS

YLEN2000PW1 02 – TOP AND CONSOLE PARTS

Written by

in

YLEN2000PW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
3WP693995 Whirlpool Screw
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8W10820038 Whirlpool Endcap
9Switch, Temperature
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP90767 Whirlpool Screw
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17WPL 8544937
18WP3394427 Whirlpool Clip
19W11693756 Whirlpool Screw Assembly
203401144 Whirlpool Connector
21WP3406725 Whirlpool Timer
223405154 Whirlpool Primary Switch
23WPL 3400985
24WP8536939 Whirlpool Spring Clip
25WP357213 Whirlpool Hinge Stopper
26Harness, Wiring
27Connector, Timer
28WP94614 Whirlpool Terminal
29WP3398095 Whirlpool Dryer Start Relay
30WPL 8544957
313936144 Whirlpool Connector
32WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
33Bracket, Control
34Panel, Control (Includes Illus. 23)
