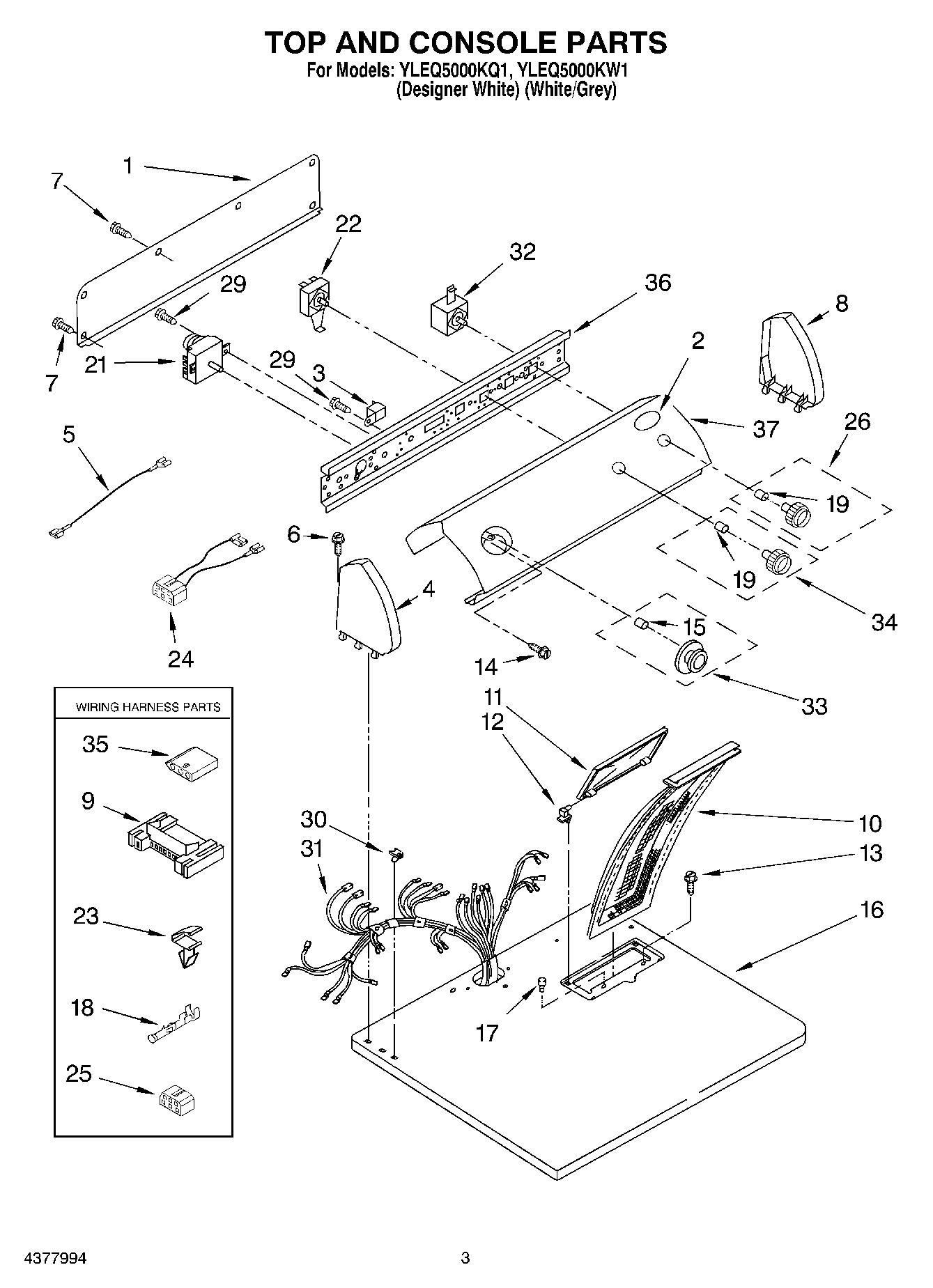

YLEQ5000KQ1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Medallion
3	WP694419 Whirlpool Buzzer Adjuster
5	Wire, Jumper (Black)
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	3395683 Whirlpool Connector
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	WP688805 Whirlpool Spring Clip
16	Top
17	Bumper, Lint Lid
18	WP94614 Whirlpool Terminal
19	WP8536939 Whirlpool Spring Clip
21	WP8299778 Whirlpool Timer
22	3405152 Whirlpool Switch Assembly
23	WP3394427 Whirlpool Clip
24	Wire, Jumper (Guard On/Off)
25	Block, Disconnect
26	Knob, Push-To-Start
26	3957804 Whirlpool Knob
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP3977456 Whirlpool Start Switch
33	WP8557455 Whirlpool Knob Timer
33	WP3957754 Whirlpool Knob Assembly
34	WP3957799 Whirlpool Knob
34	KNOB
35	3936144 Whirlpool Connector
36	Bracket, Control
37	350938 Whirlpool Spray Gun
37	Panel, Control (White)
37	3404351 Whirlpool Dryer Rack
37	799344 Whirlpool Refrigerator Paint
37	72017 Whirlpool Appliance Touch-Up Paint White
37	WPL 8532637
37	W11224254 Whirlpool Test Kit
37	350930 Whirlpool White Spray Paint
37	4392065 Whirlpool Dryer Maintenance Kit
37	ACCESSORY PARTS
