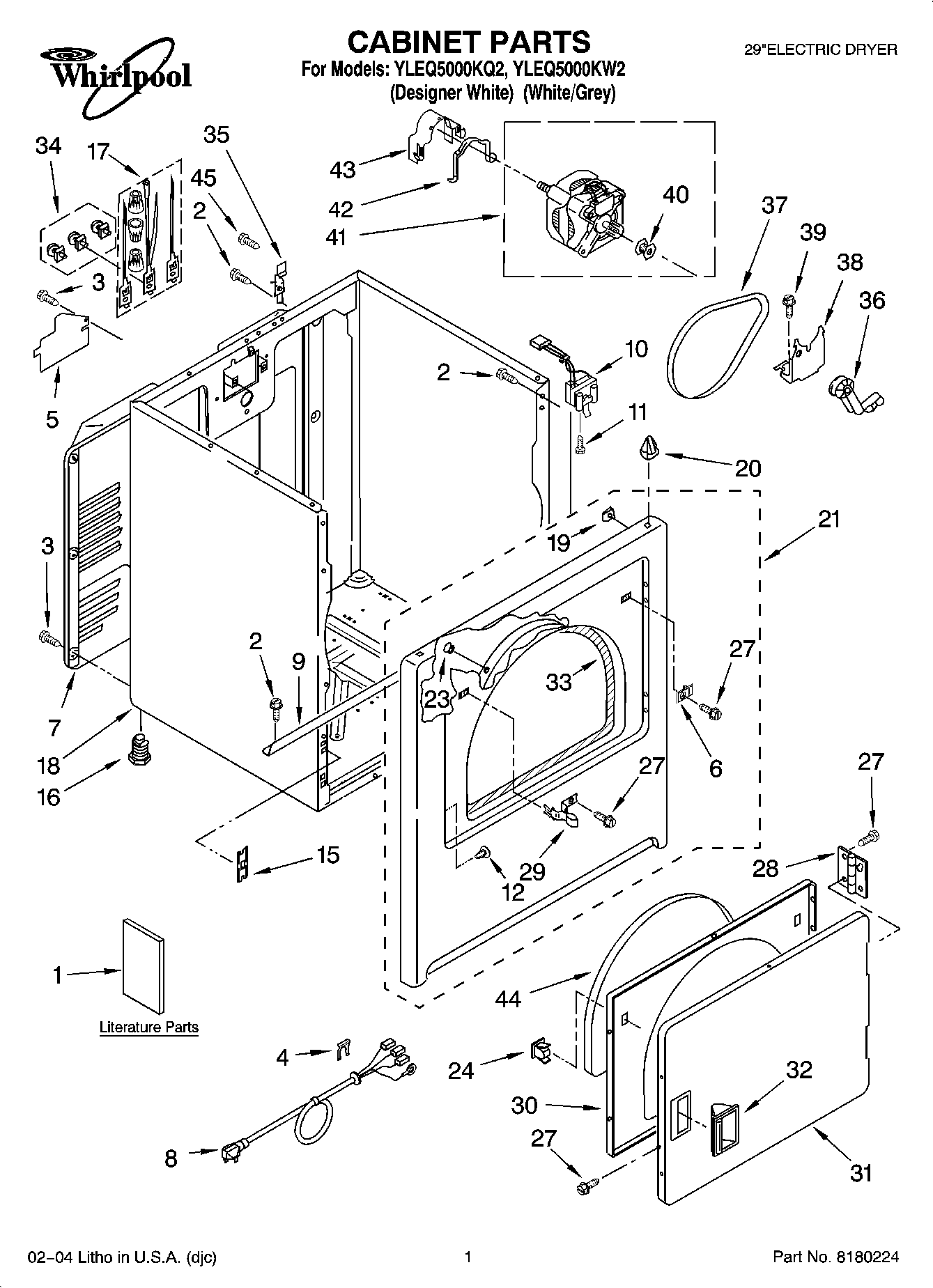

YLEQ5000KQ2 01 – CABINET PARTS

Products

Position	Product
1	Dryer
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Sheet, Cycle Feature)
1	Literature Parts (Sheet, Cycle Feature (For Model YLEQ5000KW1))
1	Literature Parts (Installation Instructions)
1	Literature Parts (Label, Energy Guide)
2	SCREW
3	WP693995 Whirlpool Screw
4	W11712577 Whirlpool Clip
5	Cover, Block
6	WP3403630 Whirlpool Plug
7	280043 Whirlpool Rear Panel
8	CORD-POWER
9	Bracket, Cabinet
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel, Front
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	W11429589 Whirlpool Strike
30	WP3402341 Whirlpool Door
31	W10861227 Whirlpool Door Assembly
32	WP3405184 Whirlpool White Door Handle
33	W11035878 Whirlpool Bearing and Seal
34	279393 Whirlpool Terminal Block Screw and Nut Kit
35	WP8066217 Whirlpool Hinge
36	WP691366 Whirlpool Dryer Idler Pulley Assembly
37	341241 Whirlpool Dryer Drum Belt
38	WP348780 Whirlpool Base
39	3400500 Whirlpool Screw
40	WP8066184 Whirlpool Dryer Motor Pulley
41	279827 Whirlpool Dryer Drive Motor
42	WP660658 Whirlpool Clamp
43	WP3404162 Whirlpool Clamp
44	SEAL-DOOR DRYER
45	W10850756 Whirlpool Screw
