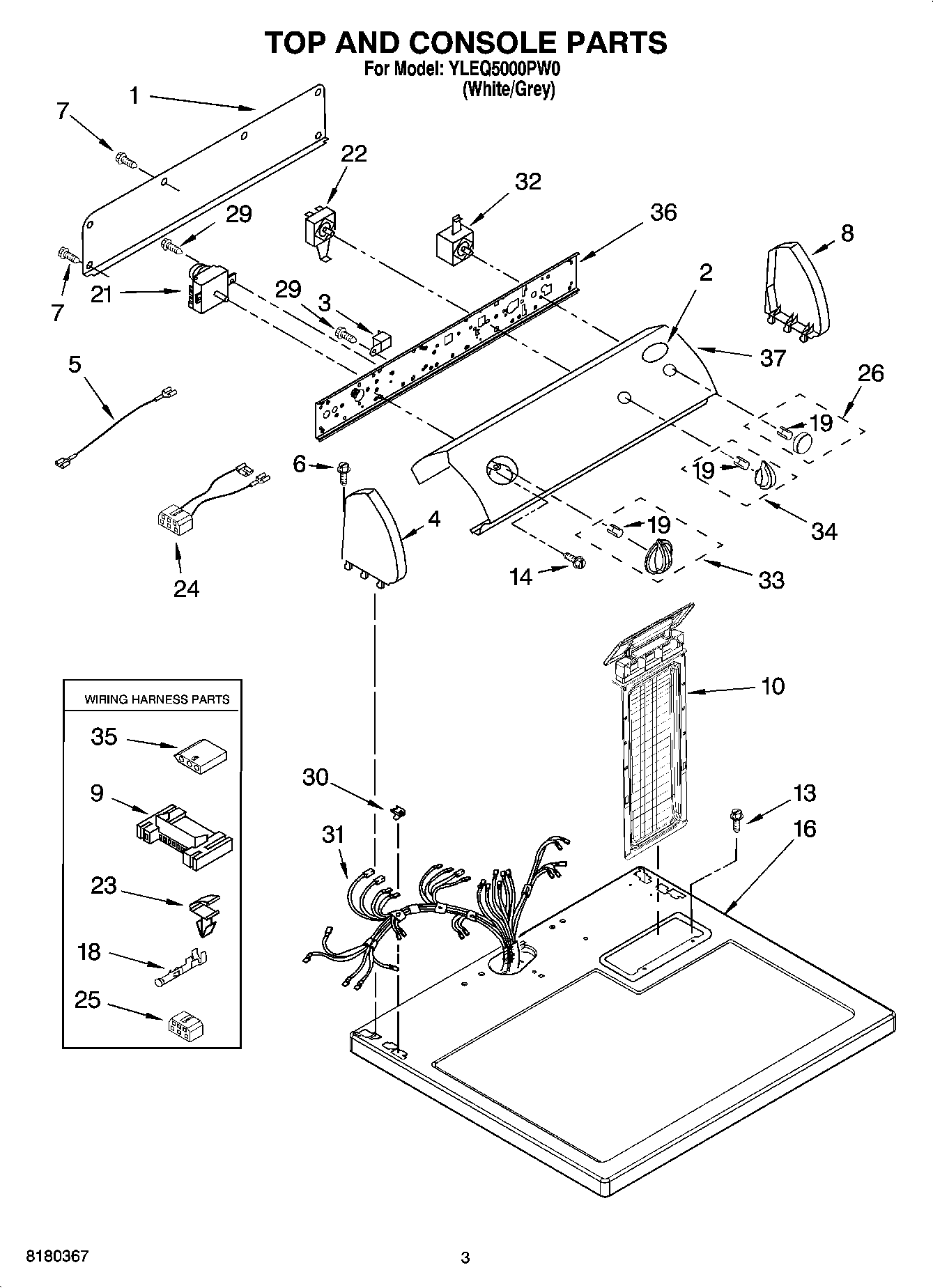

YLEQ5000PW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
1	W10103406 Whirlpool Rear Panel
2	WPL 3400985
3	WP694419 Whirlpool Buzzer Adjuster
5	Wire, Jumper (Black)
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	3395683 Whirlpool Connector
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
16	Top
18	WP94614 Whirlpool Terminal
19	WP8536939 Whirlpool Spring Clip
21	WP8299778 Whirlpool Timer
22	3405152 Whirlpool Switch Assembly
23	WP3394427 Whirlpool Clip
24	Wire, Jumper (Guard On/Off)
25	Block, Disconnect
26	WP8544941 Whirlpool Knob
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP3977456 Whirlpool Start Switch
33	WPL 8544957
34	WPL 8544937
35	3936144 Whirlpool Connector
36	Bracket, Control
37	Panel, Control (Includes Illus. 2)
37	3404351 Whirlpool Dryer Rack
37	4392065 Whirlpool Dryer Maintenance Kit
37	W11224254 Whirlpool Test Kit
37	ACCESSORY PARTS
