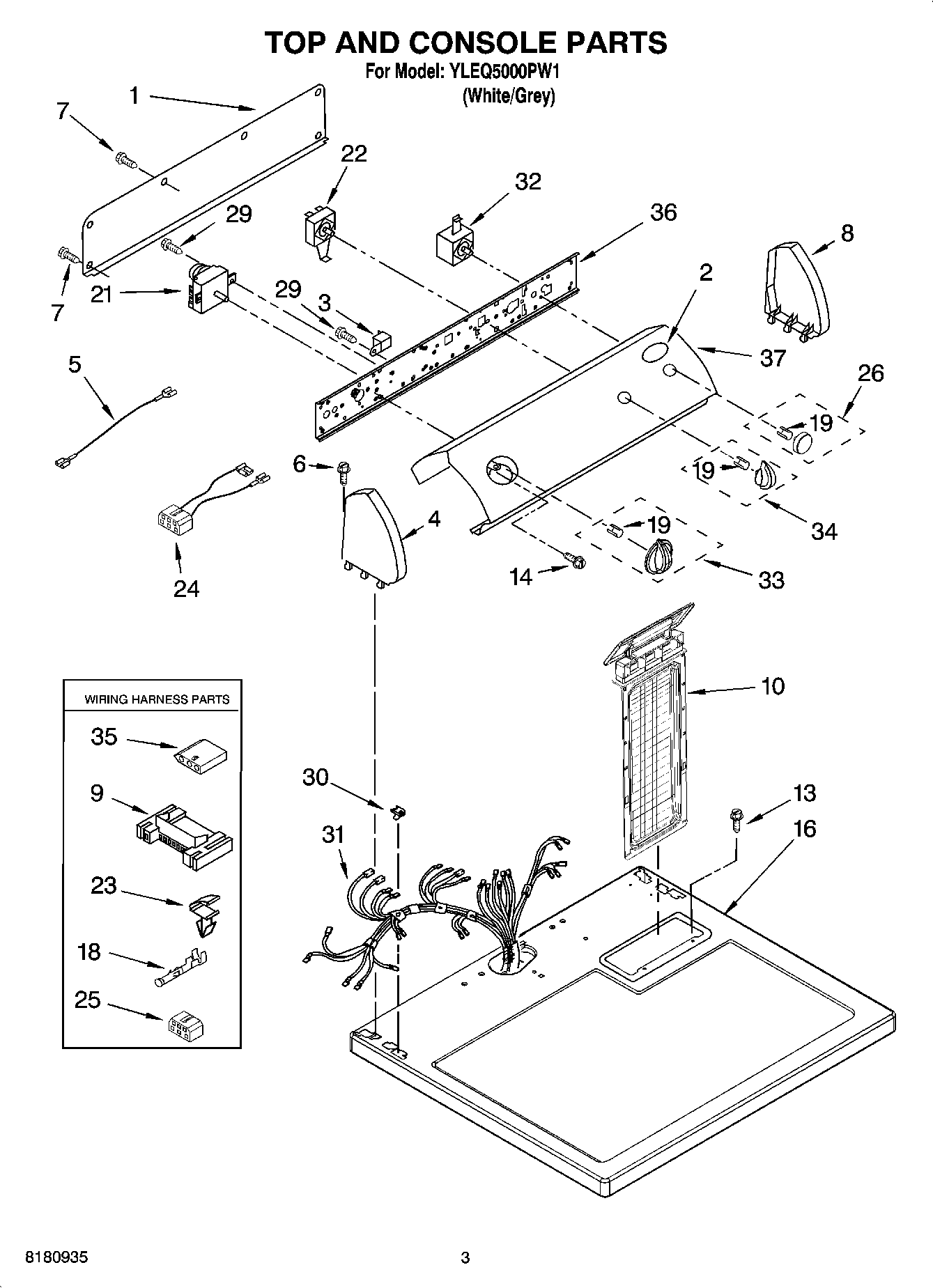

YLEQ5000PW1 02 – TOP AND CONSOLE PARTS

YLEQ5000PW1 02 – TOP AND CONSOLE PARTS

Written by

in

YLEQ5000PW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2WPL 3400985
3WP694419 Whirlpool Buzzer Adjuster
5Wire, Jumper (Black)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
16Top
18WP94614 Whirlpool Terminal
19WP8536939 Whirlpool Spring Clip
21WP8299778 Whirlpool Timer
223405152 Whirlpool Switch Assembly
23WP3394427 Whirlpool Clip
24Wire, Jumper (Guard On/Off)
25Block, Disconnect
26WP8544941 Whirlpool Knob
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WP3977456 Whirlpool Start Switch
33WPL 8544957
34WPL 8544937
353936144 Whirlpool Connector
36Bracket, Control
37Panel, Control (Includes Illus. 2)
