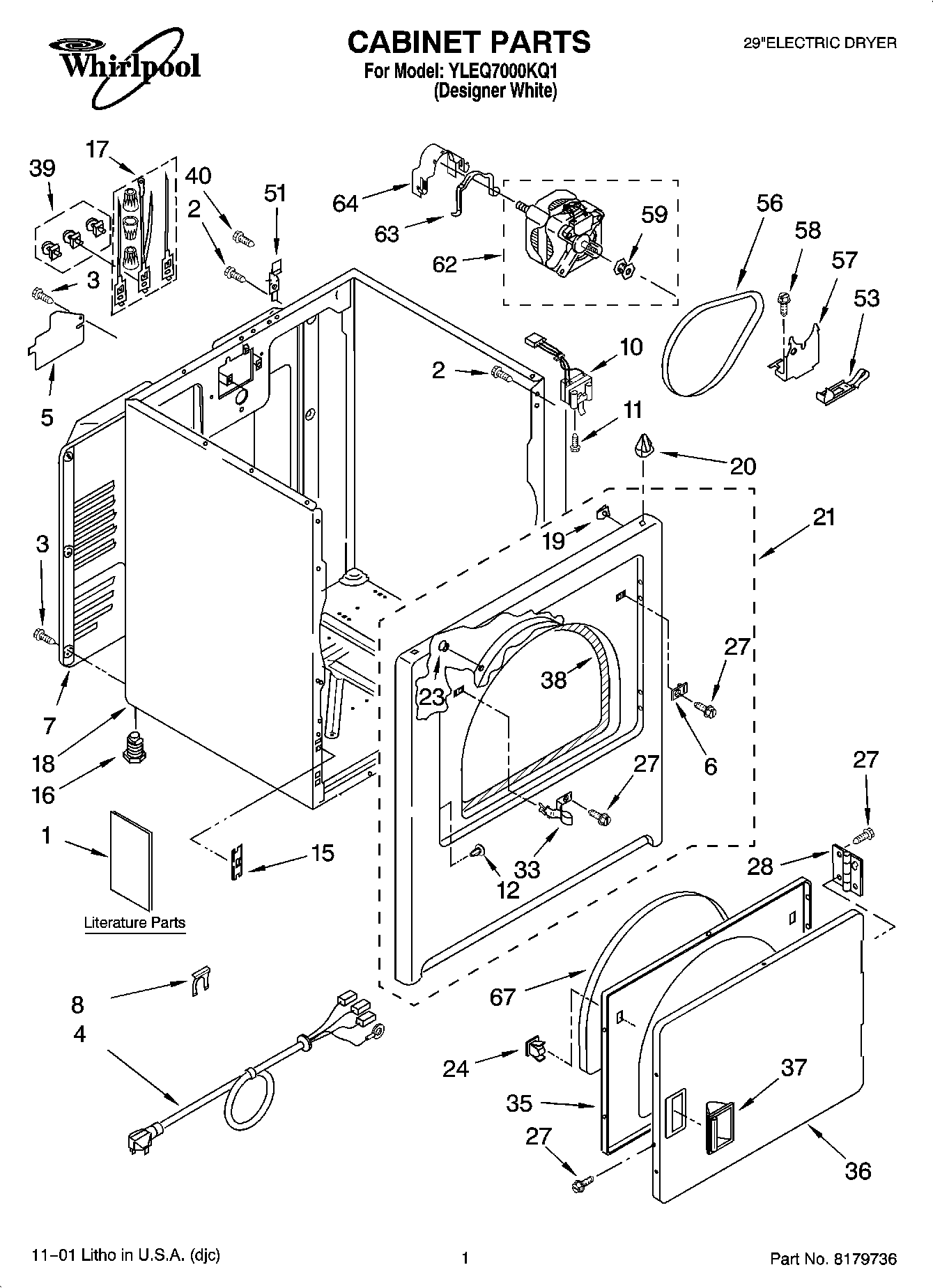

YLEQ7000KQ1 01 – CABINET PARTS

YLEQ7000KQ1 01 – CABINET PARTS

Written by

in

YLEQ7000KQ1 01 – CABINET PARTS

Products

PositionProduct
1Dryer
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Use And care Guide)
1Literature Parts (Instructions, Installation)
1Literature Parts (Label, Energy Guide)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2SCREW
3WP693995 Whirlpool Screw
4CORD-POWER
5Cover, Block
6WP3403630 Whirlpool Plug
7280043 Whirlpool Rear Panel
8W11712577 Whirlpool Clip
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12WP3404413 Whirlpool Plug
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
33W11429589 Whirlpool Strike
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
37WP3405184 Whirlpool White Door Handle
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40W10850756 Whirlpool Screw
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64WP3404162 Whirlpool Clamp
67SEAL-DOOR DRYER
