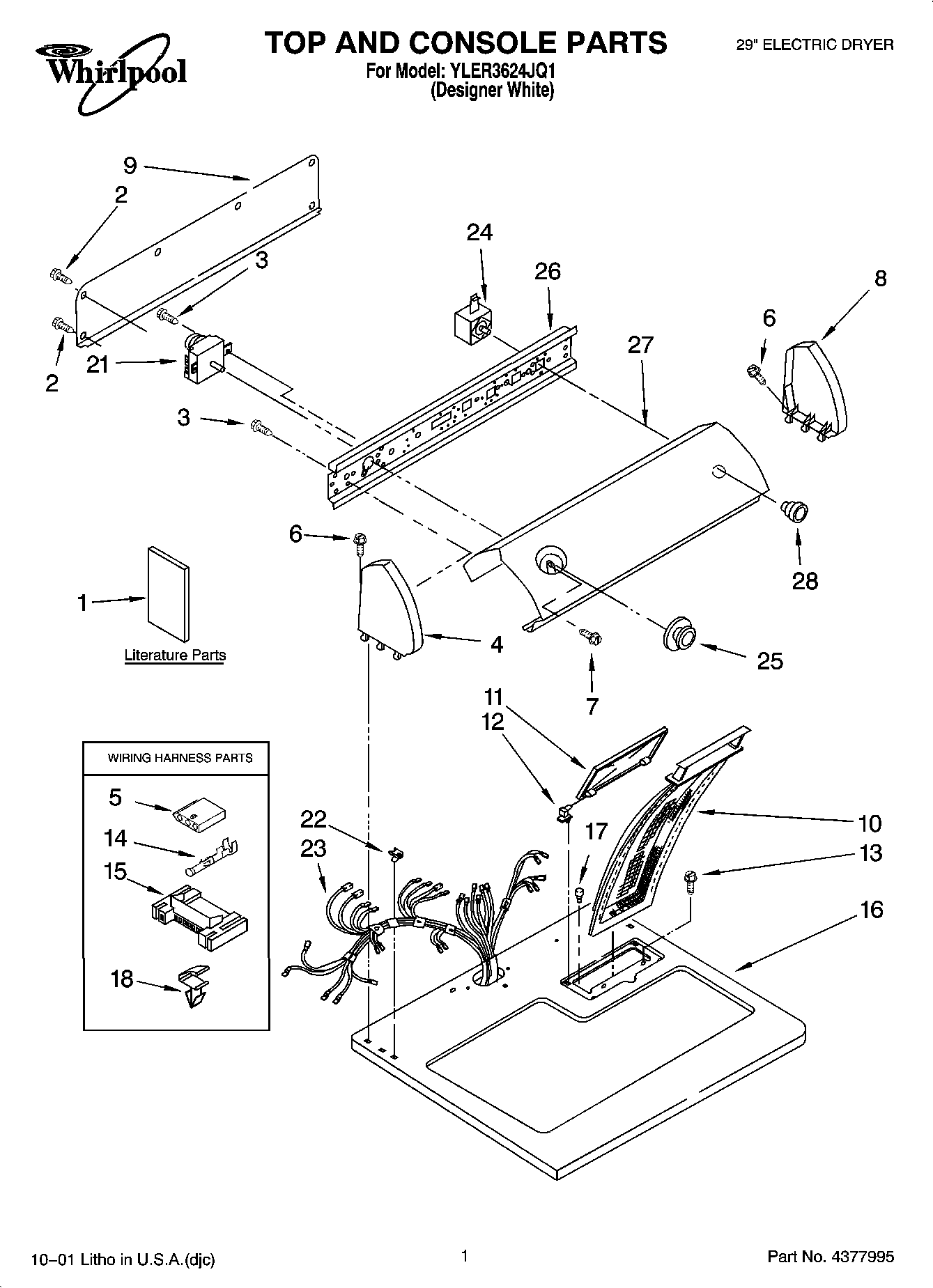

YLER3624JQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Use And care Guide)
1	Dryer
1	Wiring Diagram
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Label, Energy Guide)
2	WP693995 Whirlpool Screw
3	WPW10139210 Whirlpool Screw
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3400859 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	W10103406 Whirlpool Rear Panel
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP94614 Whirlpool Terminal
15	3395683 Whirlpool Connector
16	Top
17	Bumper, Lint Lid
18	WP3394427 Whirlpool Clip
21	WP8299774 Whirlpool Timer
22	WP357213 Whirlpool Hinge Stopper
23	Harness, Wiring
24	WP3977456 Whirlpool Start Switch
25	WP3957754 Whirlpool Knob Assembly
26	Bracket, Control
27	Panel, Control
28	3957804 Whirlpool Knob
28	WP689790 Whirlpool Dryer Rack
28	4392065 Whirlpool Dryer Maintenance Kit
28	ACCESSORY PARTS
