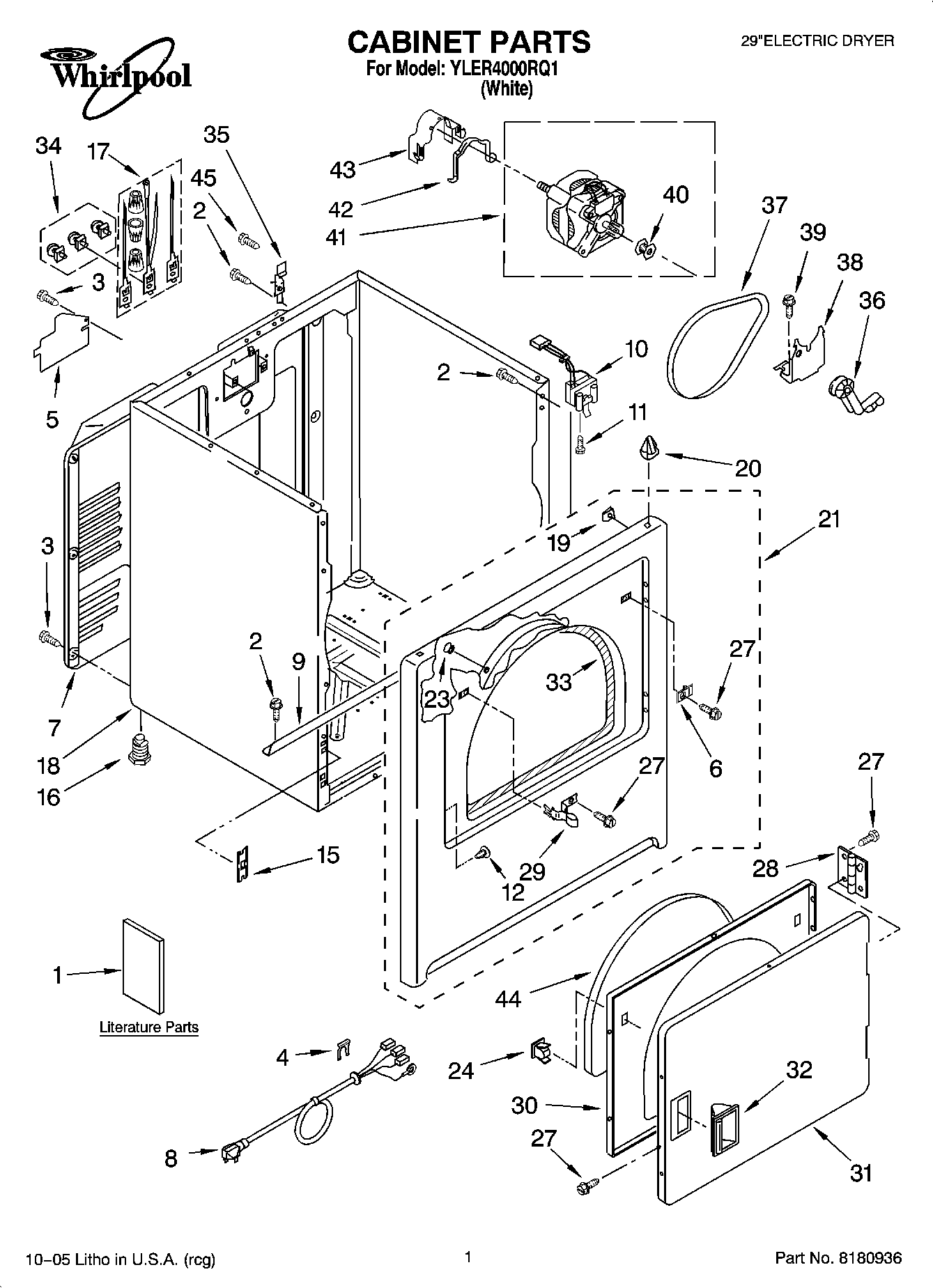

YLER4000RQ1 01 – CABINET PARTS

YLER4000RQ1 01 – CABINET PARTS

Products

PositionProduct
1Sheet, Cycle Feature
1WPL 677818
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide
1Wiring Diagram
1Installation, Instruction
2SCREW
3WP693995 Whirlpool Screw
4W11712577 Whirlpool Clip
5Cover, Block
6WP3403630 Whirlpool Plug
7280043 Whirlpool Rear Panel
8CORD-POWER
9Bracket, Cabinet
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12WP3404413 Whirlpool Plug
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29W11429589 Whirlpool Strike
30WP3402341 Whirlpool Door
31W10861227 Whirlpool Door Assembly
32WP3405184 Whirlpool White Door Handle
33W11035878 Whirlpool Bearing and Seal
34279393 Whirlpool Terminal Block Screw and Nut Kit
35WP8066217 Whirlpool Hinge
36WP691366 Whirlpool Dryer Idler Pulley Assembly
37341241 Whirlpool Dryer Drum Belt
38WP348780 Whirlpool Base
393400500 Whirlpool Screw
40WP8066184 Whirlpool Dryer Motor Pulley
41279827 Whirlpool Dryer Drive Motor
42WP660658 Whirlpool Clamp
43WP3404162 Whirlpool Clamp
44SEAL-DOOR DRYER
45W10850756 Whirlpool Screw
