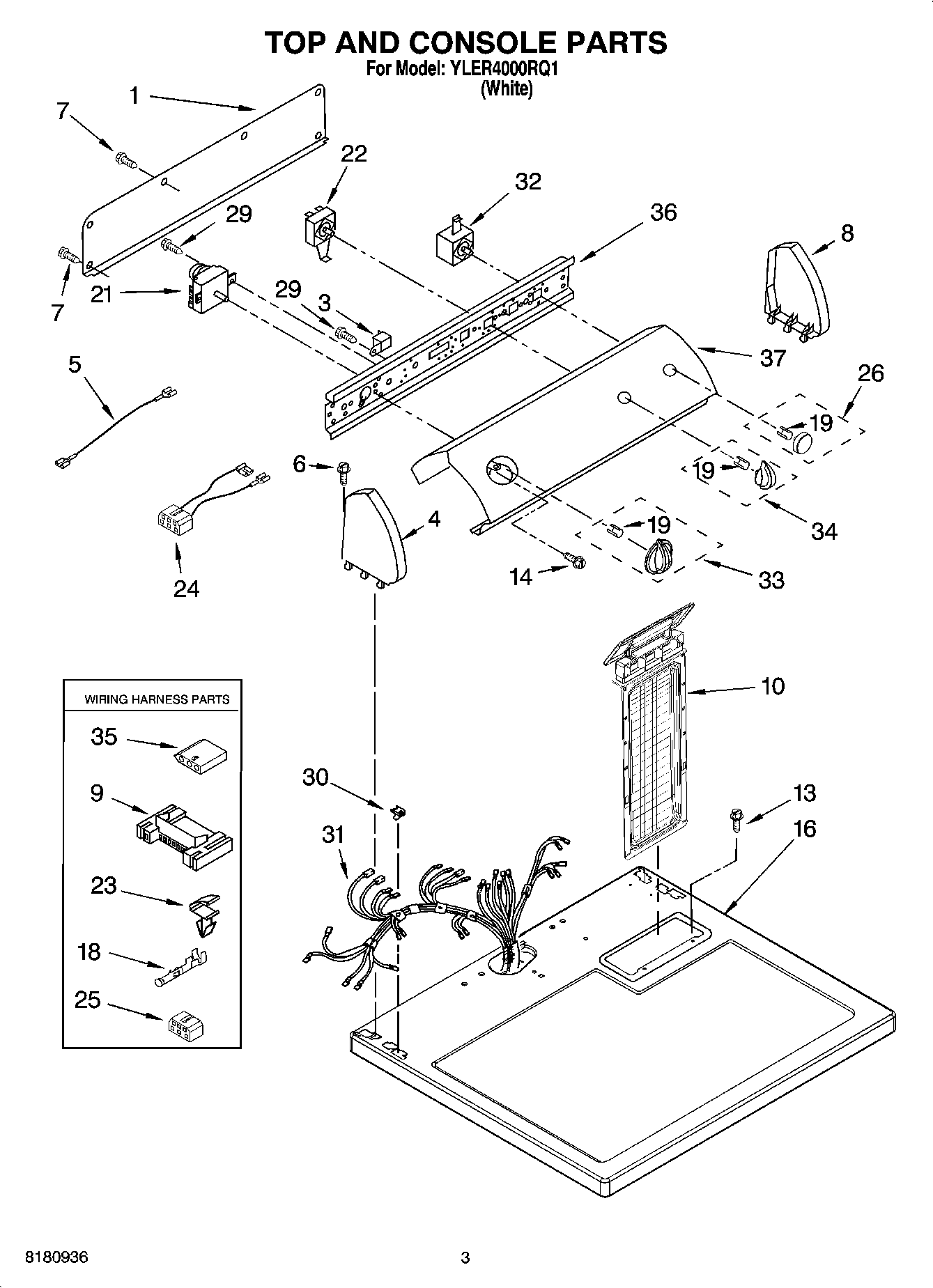

YLER4000RQ1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
3	WP694419 Whirlpool Buzzer Adjuster
5	Wire, Jumper (Black)
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	3395683 Whirlpool Connector
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
16	Top
18	WP94614 Whirlpool Terminal
19	WP8536939 Whirlpool Spring Clip
21	WP8299778 Whirlpool Timer
22	3405152 Whirlpool Switch Assembly
23	WP3394427 Whirlpool Clip
24	Wire, Jumper (Guard On/Off)
25	Block, Disconnect
26	WP8544939 Whirlpool Knob Assembly
29	WP90767 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP3977456 Whirlpool Start Switch
33	W10756270 Whirlpool Dryer Timer Knob
34	WPL 8544935
35	3936144 Whirlpool Connector
36	Bracket, Control
37	Panel, Control (Includes Illus. 2)
