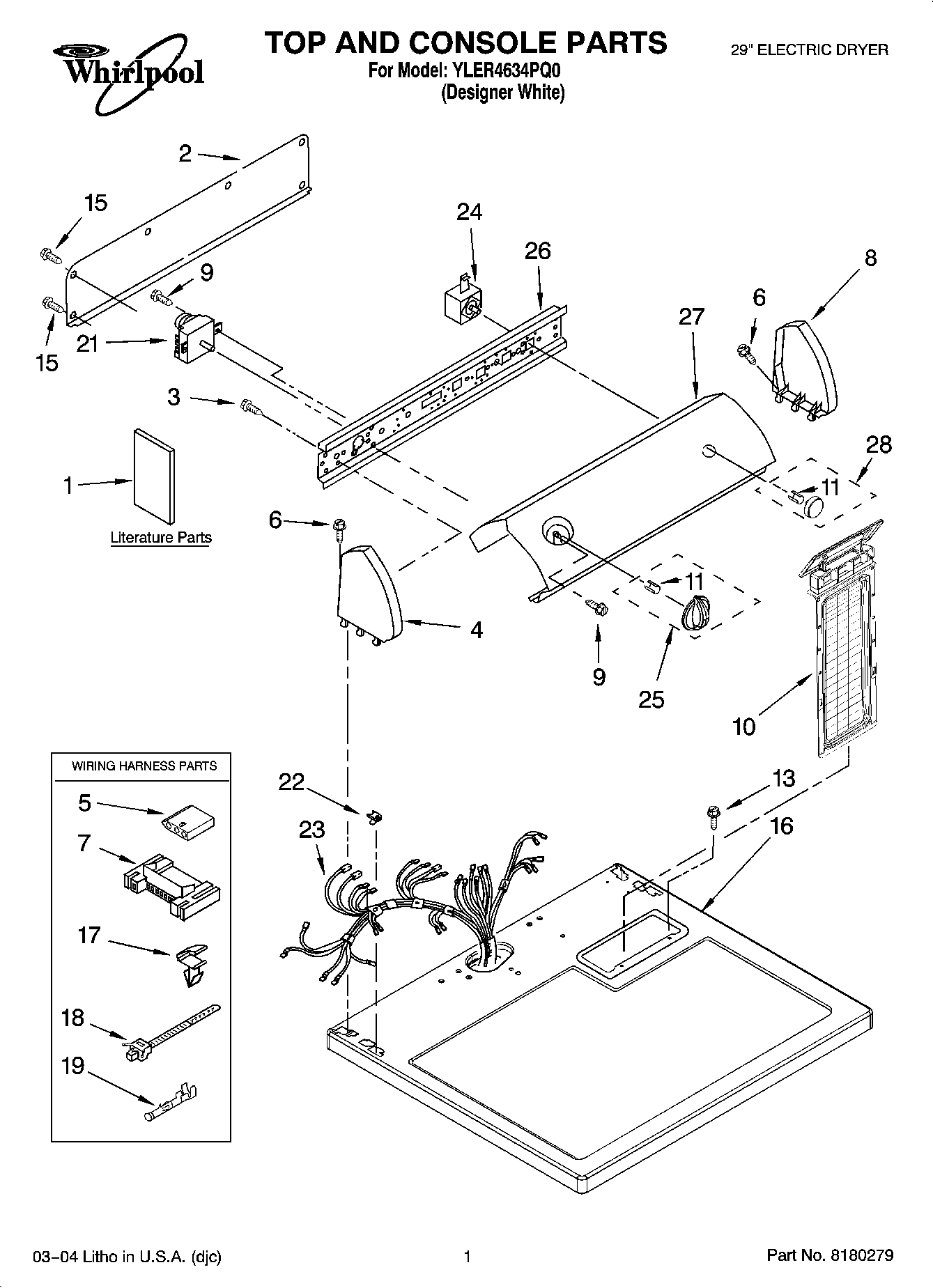

YLER4634PQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Sheet, Cycle Feature)
1	Literature Parts (Installation Instructions)
1	Dryer
1	Literature Parts (Label, Energy Guide)
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	W10103406 Whirlpool Rear Panel
3	WPW10139210 Whirlpool Screw
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
9	3400859 Whirlpool Screw
10	W10874409 Whirlpool Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	Top
17	WP3394427 Whirlpool Clip
18	Tie, Cable
19	WP94614 Whirlpool Terminal
21	WP8299778 Whirlpool Timer
22	WP357213 Whirlpool Hinge Stopper
23	Harness, Wiring
24	WP3977456 Whirlpool Start Switch
25	W10756270 Whirlpool Dryer Timer Knob
26	Bracket, Control
27	Panel, Control (White)
28	WP689790 Whirlpool Dryer Rack
28	4392065 Whirlpool Dryer Maintenance Kit
28	WP8544939 Whirlpool Knob Assembly
28	W11224254 Whirlpool Test Kit
28	ACCESSORY PARTS
