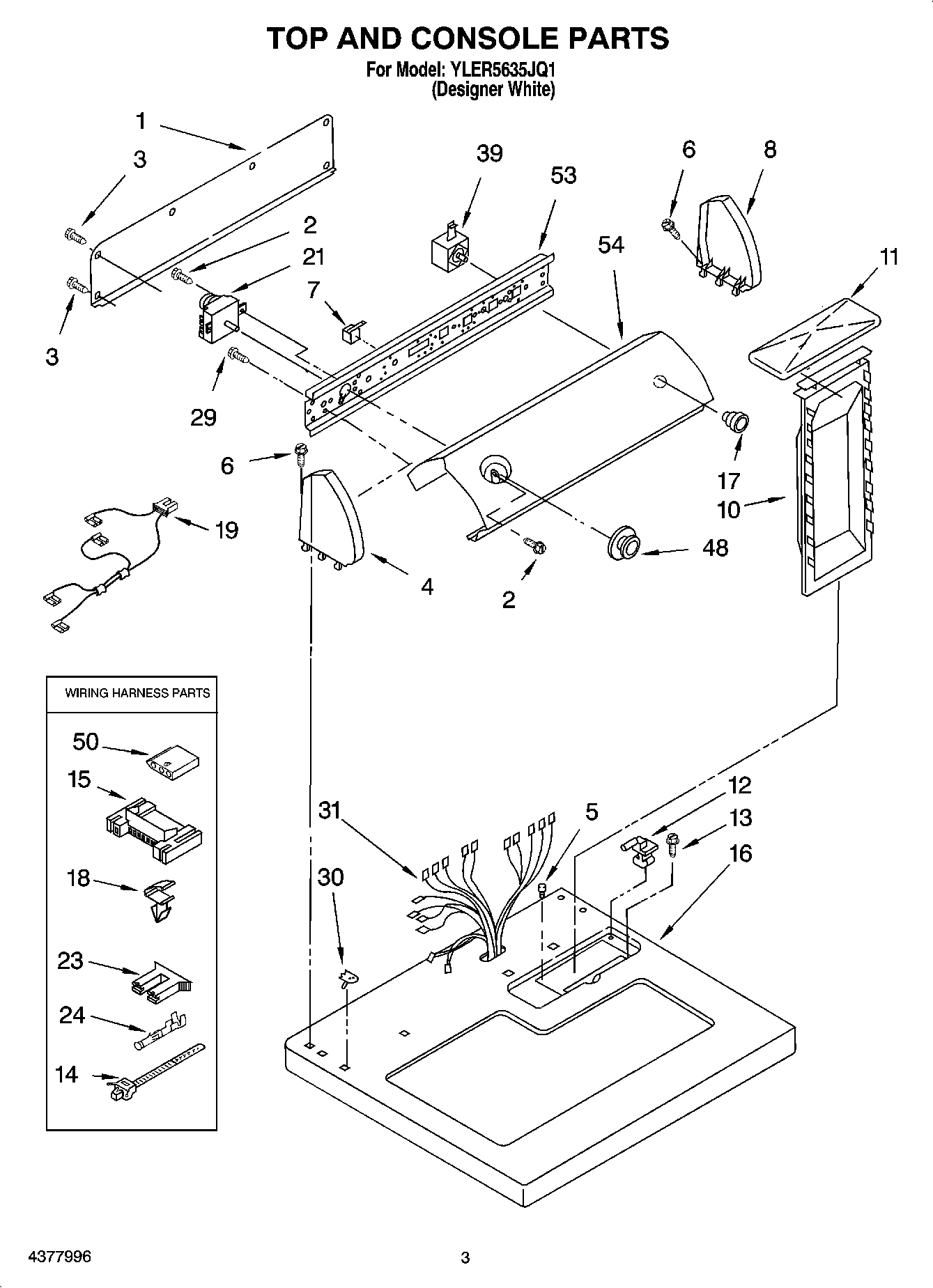

YLER5635JQ1 02 – TOP AND CONSOLE PARTS

YLER5635JQ1 02 – TOP AND CONSOLE PARTS

Written by

in

YLER5635JQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
1W10103406 Whirlpool Rear Panel
23400859 Whirlpool Screw
3WP693995 Whirlpool Screw
5Bumper, Lint Lid
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8W10820038 Whirlpool Endcap
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Tie, Cable
153395683 Whirlpool Connector
16Top
17WP3957799 Whirlpool Knob
18WP3394427 Whirlpool Clip
19Wire, Jumper
21WP8299778 Whirlpool Timer
233354925 Whirlpool Connector
24WP94614 Whirlpool Terminal
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39Switch, Push-To-Start
48WP3957754 Whirlpool Knob Assembly
503936144 Whirlpool Connector
53Bracket, Control
543404351 Whirlpool Dryer Rack
544392065 Whirlpool Dryer Maintenance Kit
54Panel, Control
54ACCESSORY PARTS
