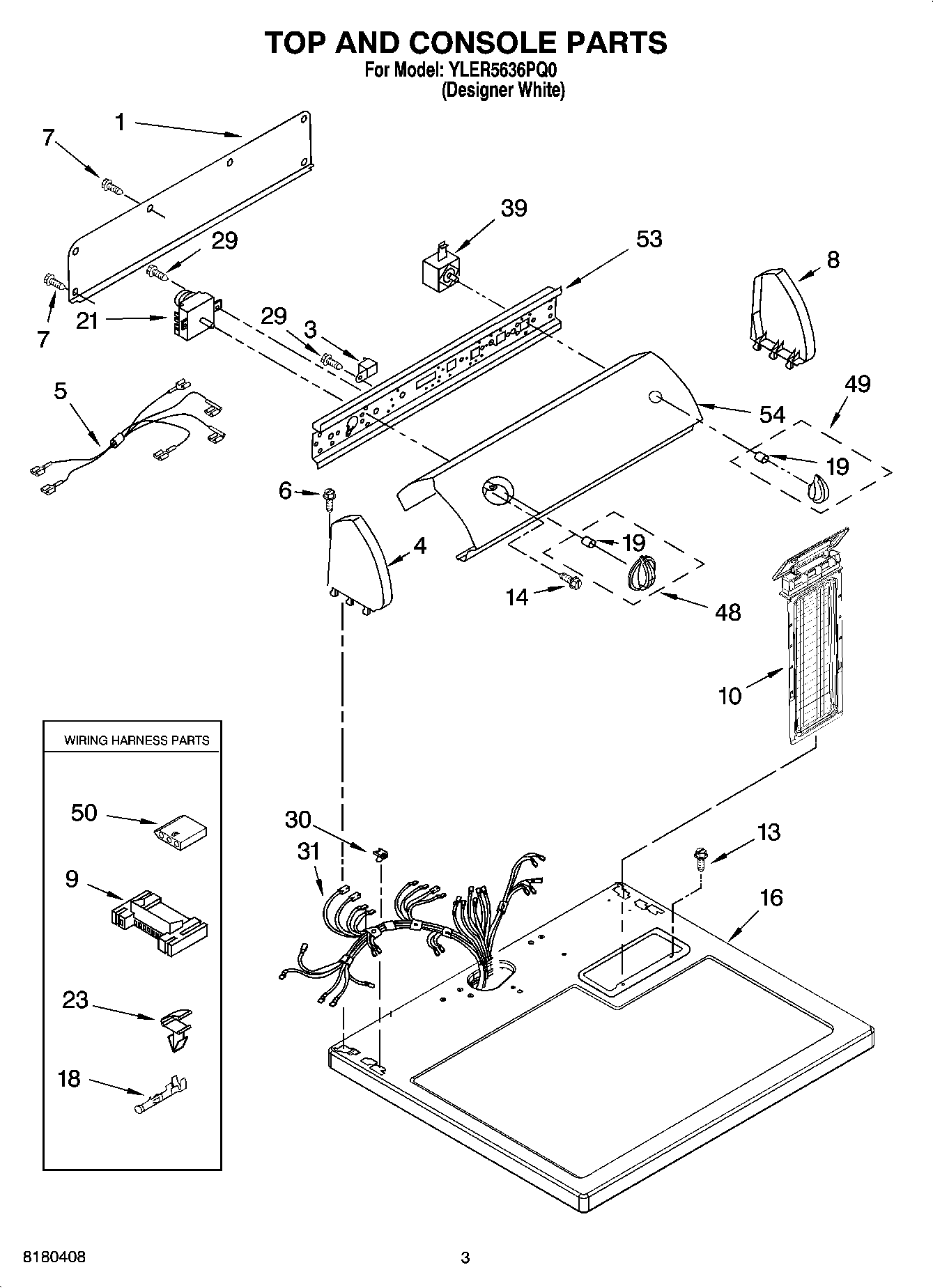

YLER5636PQ0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	4392065 Whirlpool Dryer Maintenance Kit
	W11224254 Whirlpool Test Kit
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	3404351 Whirlpool Dryer Rack
1	W10103406 Whirlpool Rear Panel
3	WP694419 Whirlpool Buzzer Adjuster
5	Wire, Jumper (PTS to Buzzer)
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	3395683 Whirlpool Connector
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
16	Top
18	WP94614 Whirlpool Terminal
19	WP8536939 Whirlpool Spring Clip
21	WP8299778 Whirlpool Timer
23	WP3394427 Whirlpool Clip
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3404233 Whirlpool Dryer Starter Switch
48	W10756270 Whirlpool Dryer Timer Knob
49	WPL 8544935
50	3936144 Whirlpool Connector
53	Bracket, Control
54	Panel, Control
54	ACCESSORY PARTS

No products found
