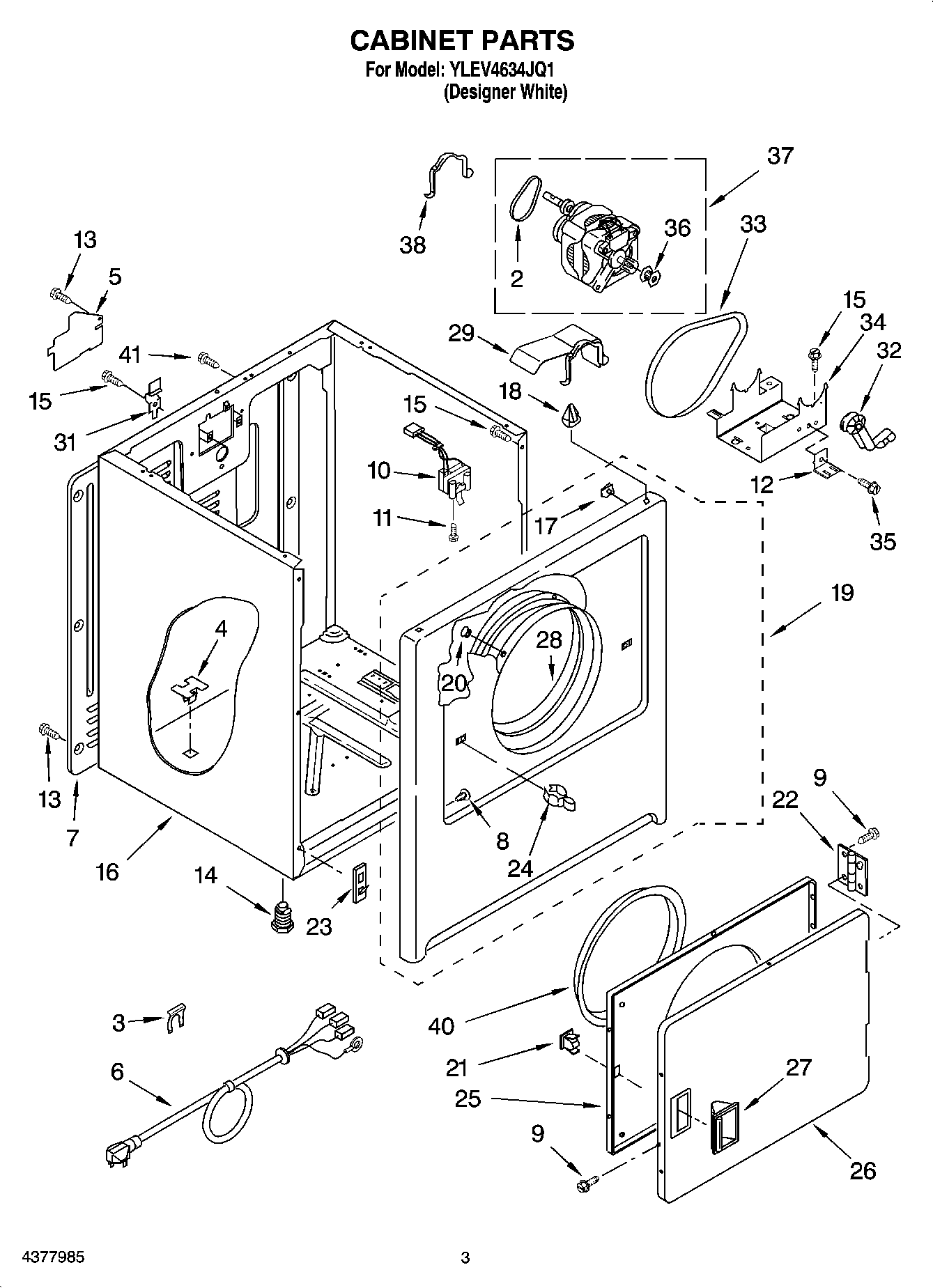

YLEV4634JQ1 02 – CABINET PARTS

YLEV4634JQ1 02 – CABINET PARTS

Written by

in

YLEV4634JQ1 02 – CABINET PARTS

Products

PositionProduct
2WP3405160 Whirlpool Belt Assembly
3W11712577 Whirlpool Clip
4Plug, Cabinet
5Cover, Block
6CORD-POWER
7280040 Whirlpool Rear Panel
8WP3404413 Whirlpool Plug
9WP488627 Whirlpool Refrigerator Screw
10WP3406105 Whirlpool Door Switch
11WP3395530 Whirlpool Screw
123401805 Whirlpool Bracket
13WP693995 Whirlpool Screw
1449621 Whirlpool Leveling Feet
15SCREW
168533643 Whirlpool Dryer White Cabinet
17WP98234 Whirlpool Nut
18WP18776 Whirlpool Lock
19Panel Front Assembly
20279220 Whirlpool Clip
21279570 Whirlpool Dryer Door Latch Kit
22WPW10362431 Whirlpool Hinge Assembly
23W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
25Door, Rear
26WP3403361 Whirlpool Door
27WP3405184 Whirlpool White Door Handle
28279264 Whirlpool Bearing and Seal Kit
293401800 Whirlpool Shield
31WP8066217 Whirlpool Hinge
32WP691366 Whirlpool Dryer Idler Pulley Assembly
33341241 Whirlpool Dryer Drum Belt
343401801 Whirlpool Base Assembly
353400500 Whirlpool Screw
36WP8066184 Whirlpool Dryer Motor Pulley
37WPW10396039 Whirlpool Drive Motor
38WP660658 Whirlpool Clamp
40SEAL-DOOR DRYER
41W10850756 Whirlpool Screw
