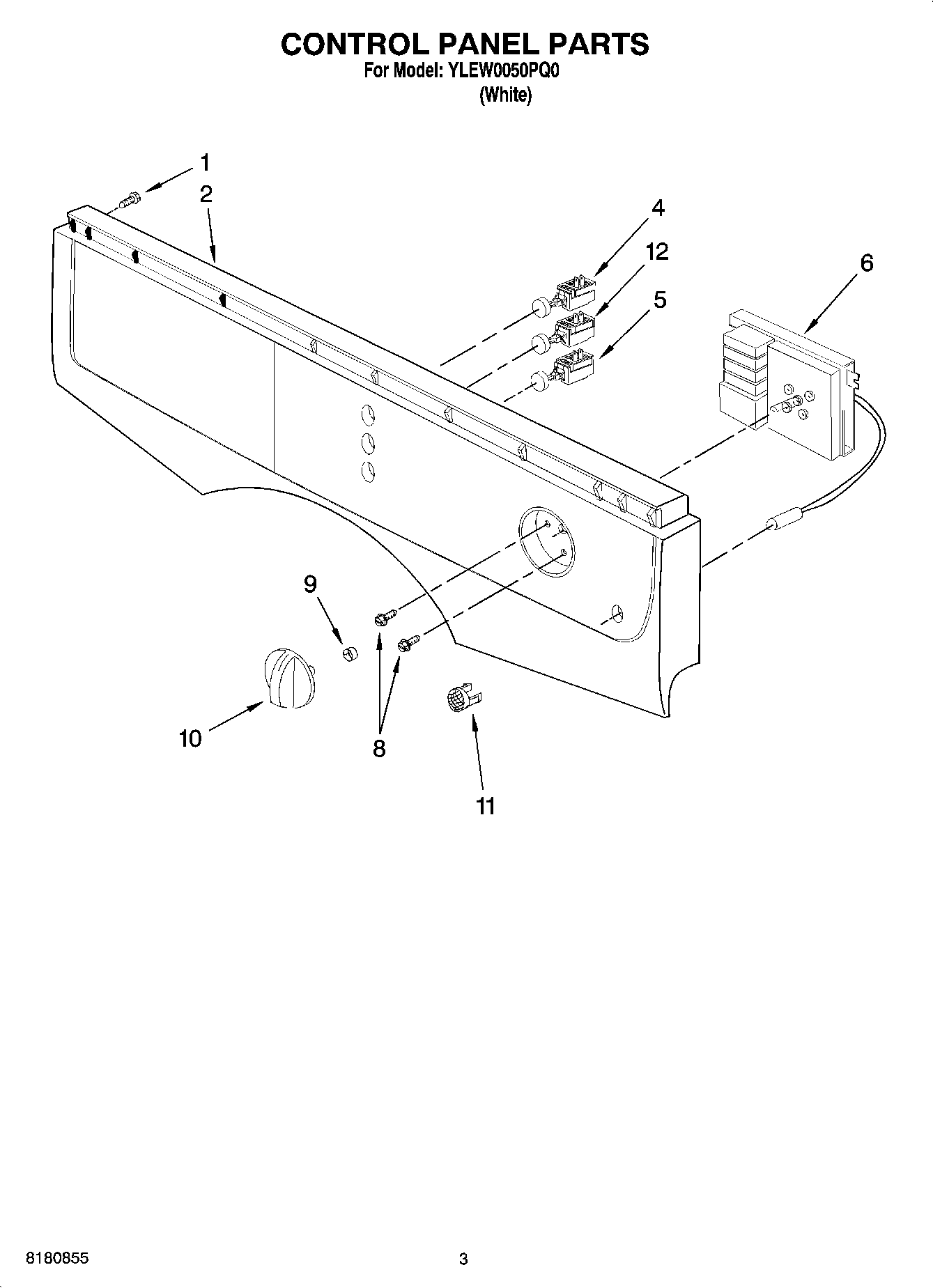

YLEW0050PQ0 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
2	Kit, Control Panel (Includes Items 4, 5 & 12)
4	280110 Whirlpool Plug Switch
5	280112 Whirlpool Switch Plunger
6	Timer & Indicator Light Assembly (Indicator Light Not Serviced Separately)
8	SCREW
9	WP8182361 Whirlpool Spring
10	KNOB
11	8182532 Whirlpool Lens Assembly
12	280111 Whirlpool Switch Plug
