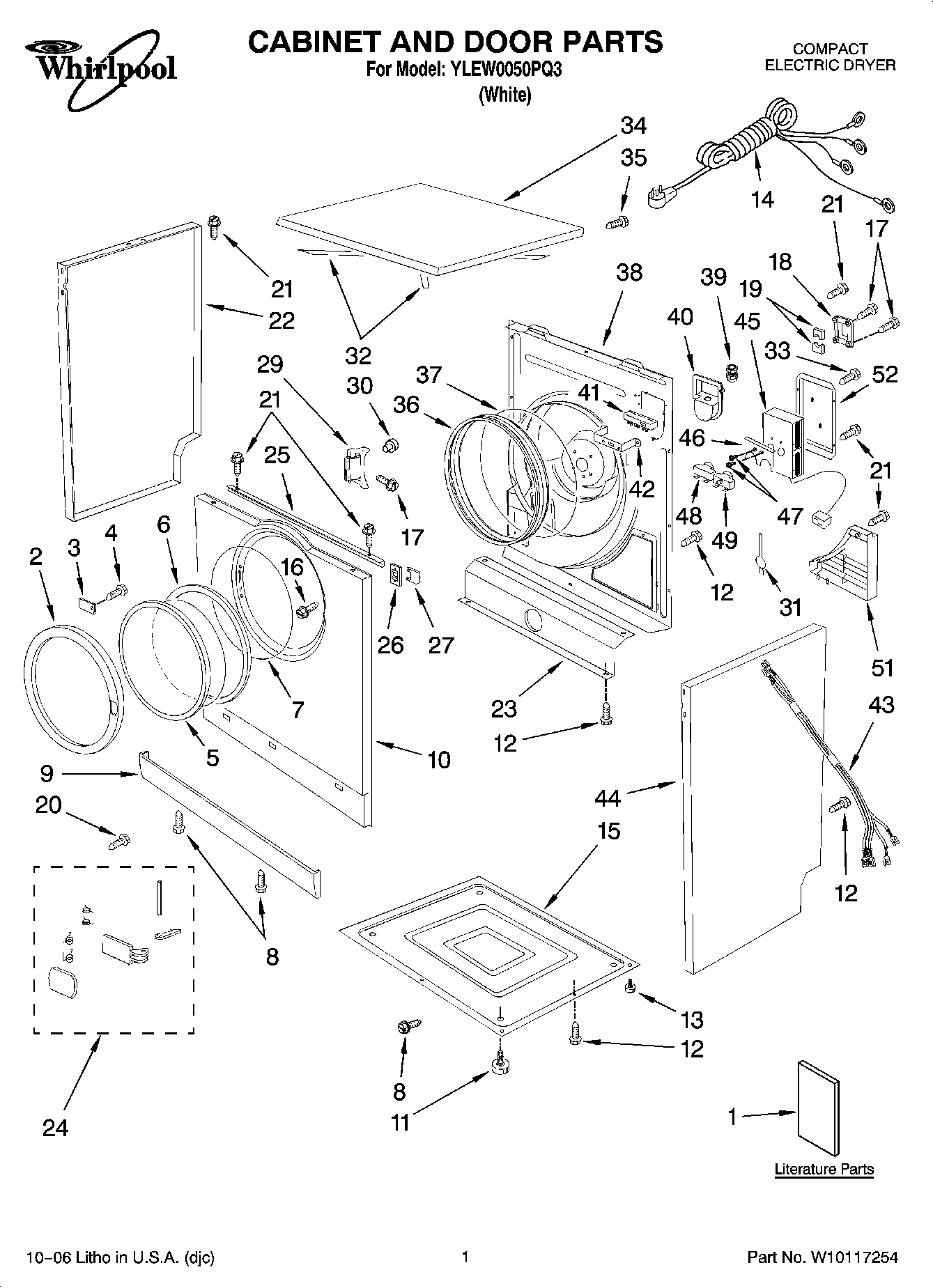

YLEW0050PQ3 01 – CABINET AND DOOR PARTS

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
2	WP8182406 Whirlpool Frame
3	Retainer Insert (Glass Door)
4	WPW10253196 Whirlpool Screw
5	WP8182516 Whirlpool Door Glass
6	Frame, Inner Door
7	Gasket, Door
8	SCREW
9	Toe Panel
10	Front Panel (Not Serviced)
11	WP8182479 Whirlpool Leveling Feet
14	Power Cord
15	BASE
16	8182401 Whirlpool Screw
17	8183089 Whirlpool Screw
18	8182534 Whirlpool Cover Assembly
19	Support, Drum Shaft
20	WP12990527 Whirlpool Microwave Screw
21	Screw
22	8182509 Whirlpool Panel
23	8182535 Whirlpool Panel
24	Kit, Door Handle
25	8182511 Whirlpool Bracket
26	Plate, Door Switch
27	WP8182530 Whirlpool Door Switch
29	Door Hinge (Not Serviced)
30	Rivet, Hinge (Not Serviced)
31	8183097 Whirlpool Spring Assembly
32	8183109 Whirlpool Bracket
33	Screw, Element Cover
34	8182524 Whirlpool Top
35	SCREW
36	WP8182507 Whirlpool Seal
37	8182540 Whirlpool Retainer
38	8182590 Whirlpool Rear Panel
39	8182506 Whirlpool Nut
40	8182514 Whirlpool Cover
41	Terminal Block
42	8182513 Whirlpool Bracket
43	Wire Harness
44	WP8182520 Whirlpool Panel Assembly
45	WP8182528 Whirlpool Heating Element
46	Plate, Thermostat
47	Screw, Plate
48	W10843940 Whirlpool Safety Thermostat
49	WPW10483239 Whirlpool Thermostat
51	8182510 Whirlpool Cover Assembly
52	Cover, Element
