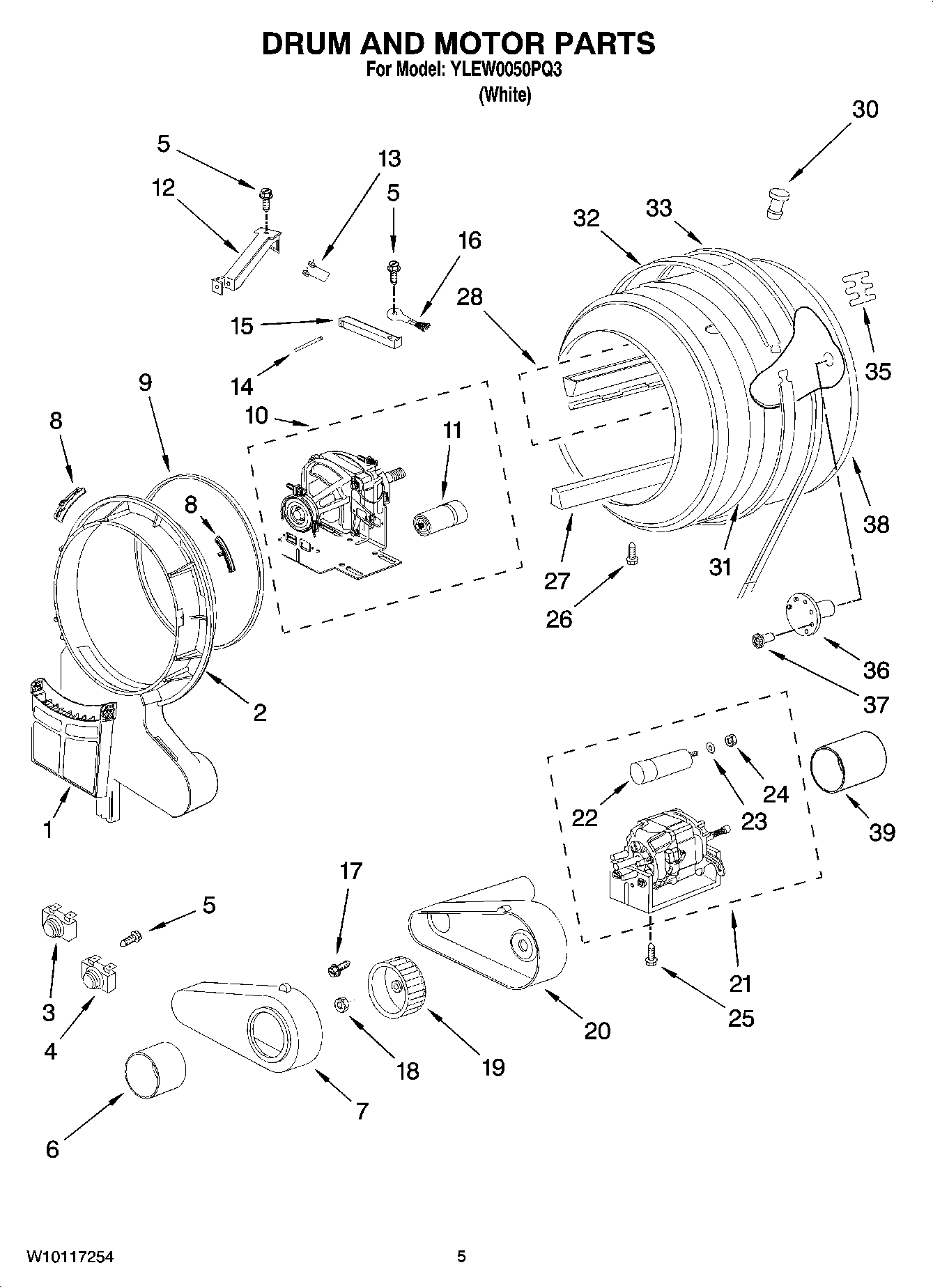

YLEW0050PQ3 03 – DRUM AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Stack Kit
	ACCESSORY PARTS
1	8182489 Whirlpool Screen
2	8182485 Whirlpool Lint Duct
3	WP8182470 Whirlpool Thermostat
4	WP8182477 Whirlpool Thermostat
5	Screw
6	Extension, Housing
7	WPW10238692 Whirlpool Housing
8	W10119103 Whirlpool Insert
9	Seal, Front Drum
10	Drive Motor (Includes Bracket & Capacitor)
11	Capacitor (Not Serviced)
12	Support, Arm (Brush)
13	W10873385 Whirlpool Spring Assembly
14	Pin, Arm
15	Arm, Brush Holder
16	Brush, Detector
17	4344826 Whirlpool Refrigerator Screw
18	8182739 Whirlpool Kit
19	WP8182538 Whirlpool Wheel
20	W10238691 Whirlpool Housing
21	WP8182472 Whirlpool Drive Motor
22	W11105120 Whirlpool Capacitor
23	Washer, Capacitor
24	Nut, Capacitor
25	WP22002933 Whirlpool Screw
26	Screw, Baffle
27	8182483 Whirlpool Drum Baffle
28	8183113 Whirlpool Drain Baffle
30	Plug, Probe
31	Band, Insulation
32	Band, Steel
33	WP8183101 Whirlpool Belt Assembly
35	8182493 Whirlpool Spring Assembly
36	Drum Flange with Shaft (Not Serviced)
37	Rivet, Drum Flange (Not Serviced)
38	WP8182482 Whirlpool Drum Assembly
39	Shield, Exhaust
