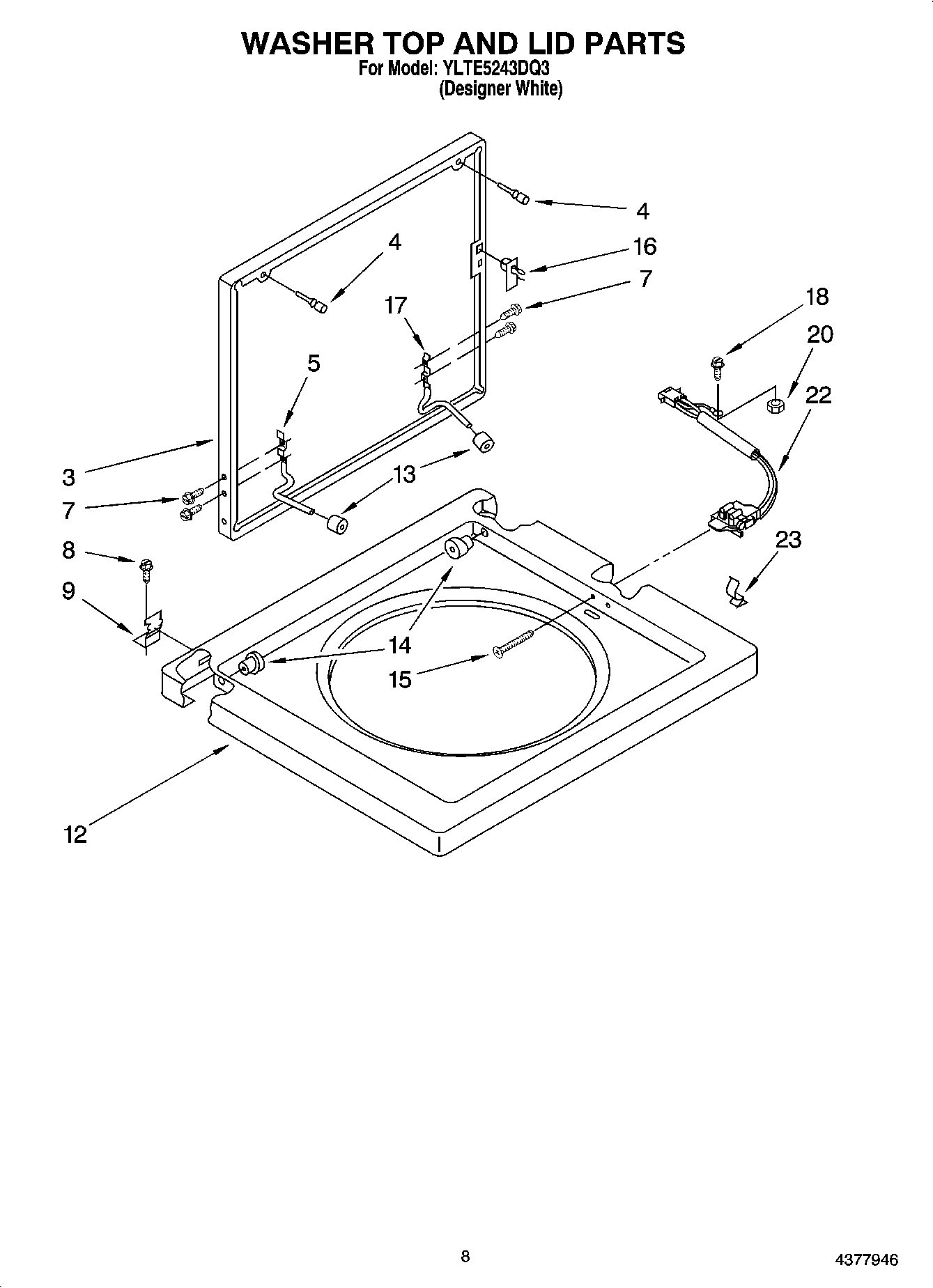

YLTE5243DQ3 06 – WASHER TOP AND LID PARTS

YLTE5243DQ3 06 – WASHER TOP AND LID PARTS

Written by

in

YLTE5243DQ3 06 – WASHER TOP AND LID PARTS

Products

PositionProduct
3Lid
480011 Whirlpool Washer Lid Bumper Kit of 2
5384458 Whirlpool Hinge Assembly
7SCREW
8SCREW
9WP692985 Whirlpool Clip Assembly
12WP384693 Whirlpool Top
13Bumper, Lid Hinge
14WP21258 Whirlpool Washer Lid Hinge Bearing
15WP3356311 Whirlpool Screw
16WP358684 Whirlpool Strike Assembly
17384459 Whirlpool Hinge
18WP308544 Whirlpool Screw
20W10080180 Whirlpool Nut
22WP3355806 Whirlpool Lid Switch
23WP90016 Whirlpool Clip
