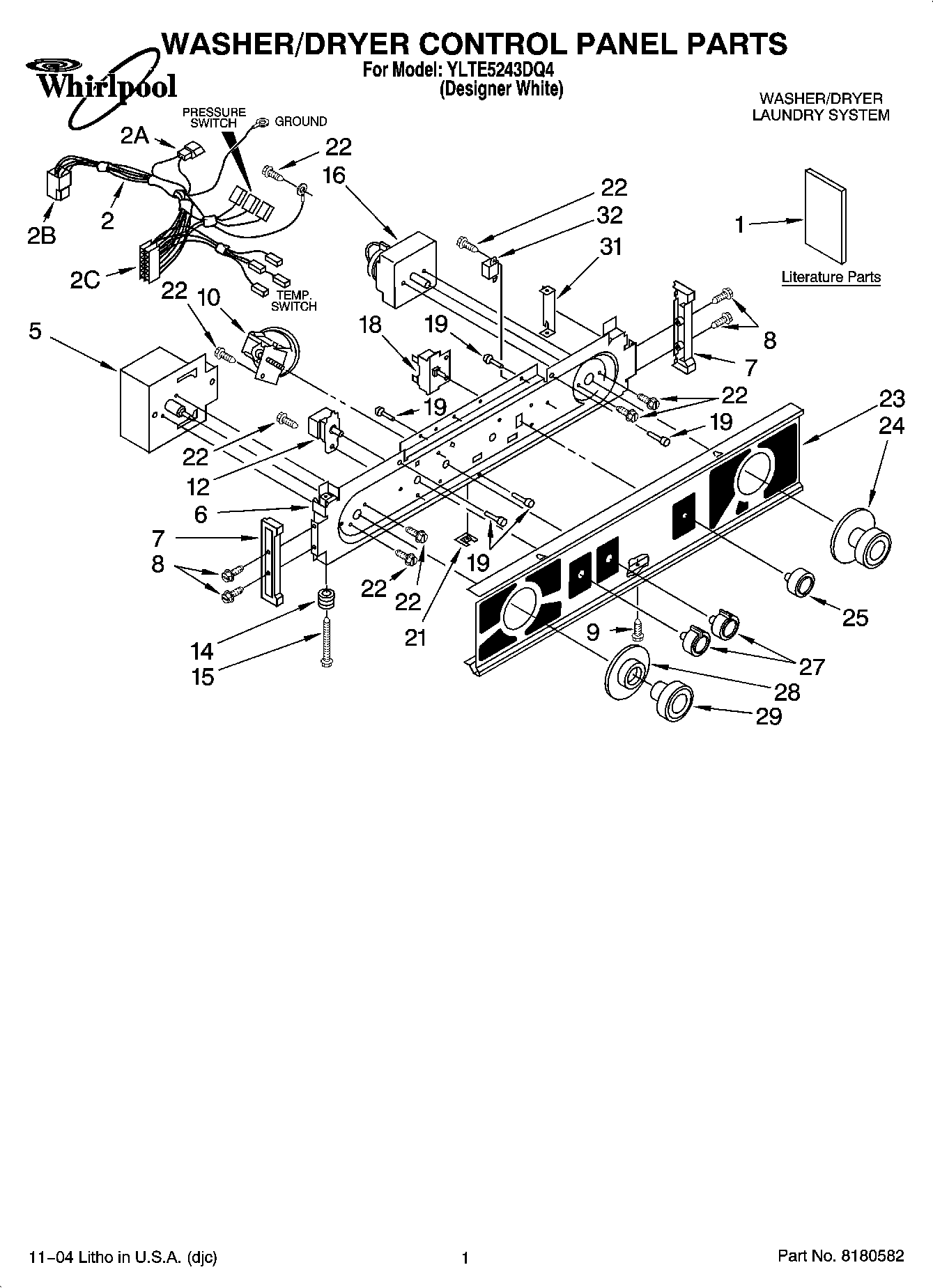

YLTE5243DQ4 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

Position	Product
1	Installation Instructions
1	Wiring Diagram
1	Use & Care Guide
1	Sheet, Cycle Feature
2A	3350130 Whirlpool Connector
2	WP3406288 Whirlpool Wire Harness
2B	696073 Whirlpool Connector
2C	Timer, Block Disconnect (White)
5	WP3952499 Whirlpool Timer Control
6	8528153 Whirlpool Bracket Assembly
7	End Cap, Console (L.H. & R.H.)
8	NAMEPLATE
9	WP694091 Whirlpool Screw
10	WP3362987 Whirlpool Washer Water Level Switch
12	WP8054142 Whirlpool Temperature Switch
14	WP693151 Whirlpool Lock Spring
15	WP3400860 Whirlpool Screw
16	WP3406720 Whirlpool Timer
18	WP3977456 Whirlpool Start Switch
19	693152 Whirlpool Bumper
21	694037 Whirlpool Clip
22	WPW10139210 Whirlpool Screw
23	Panel, Control
24	WP3957752 Whirlpool Knob
25	WP3957800 Whirlpool Knob
27	WP3957796 Whirlpool Knob
28	WP3957841 Whirlpool Dial
29	W10807860 Whirlpool White Control Knob
31	WP692983 Whirlpool Console Lock
32	WP694419 Whirlpool Buzzer Adjuster
