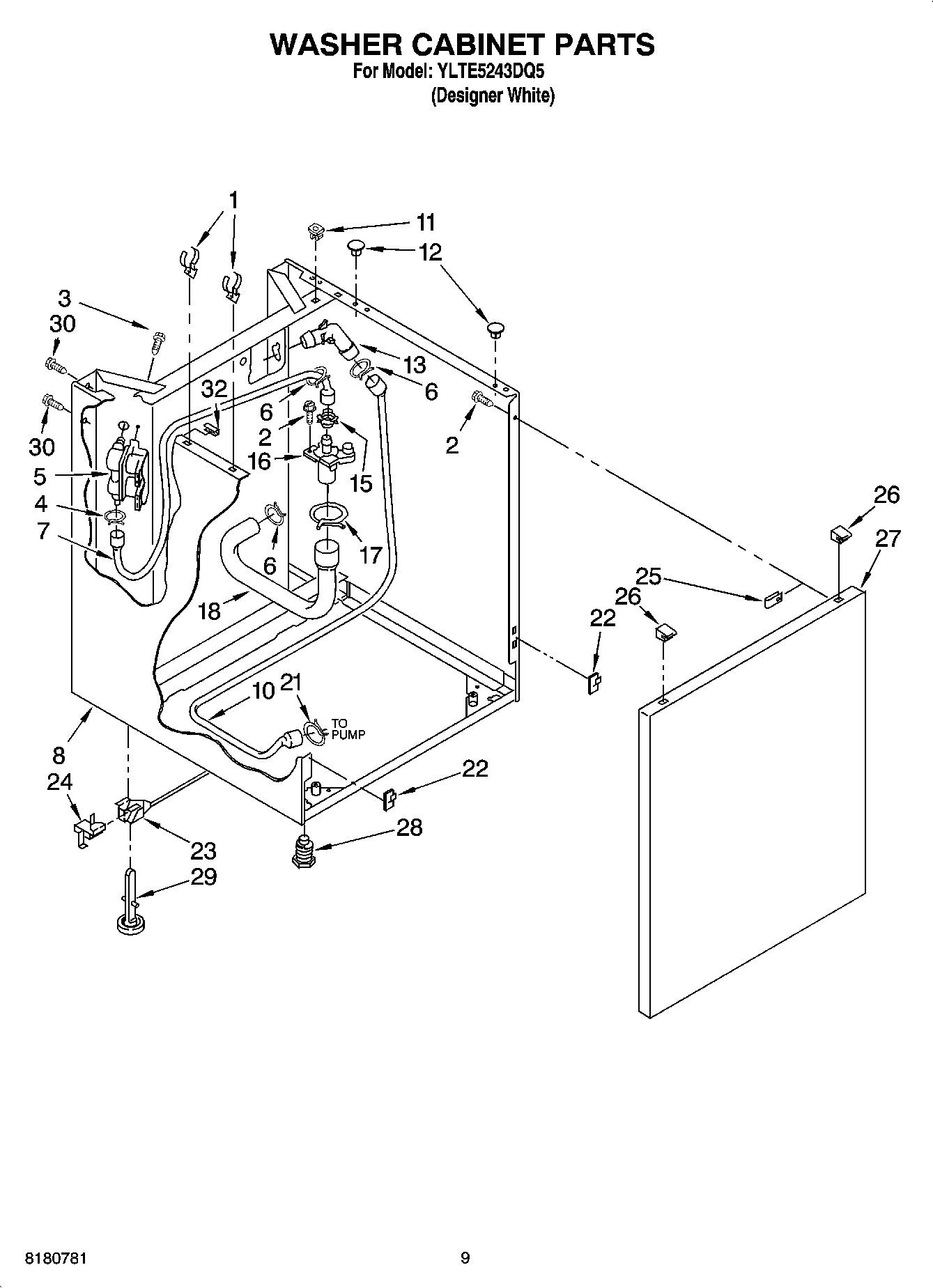

YLTE5243DQ5 07 – WASHER CABINET PARTS

YLTE5243DQ5 07 – WASHER CABINET PARTS

Written by

in

YLTE5243DQ5 07 – WASHER CABINET PARTS

Products

PositionProduct
1356746 Whirlpool Clip
2SCREW
3WP9740848 Whirlpool Dishwasher Screw
4WP596669 Whirlpool Hose Clamp
5285805 Whirlpool Washer Water Inlet Valve
6WP285655 Whirlpool Hose Clamp
7WP692699 Whirlpool Hose
8Cabinet (White)
10WP696710 Whirlpool Hose
11WP692400 Whirlpool Nut
12WP660975 Whirlpool Button Plug
13W11213338 Whirlpool Connector
15WP356471 Whirlpool Cap
16WP356363 Whirlpool Siphon Break
17WP616099 Whirlpool Clamp
18WP696394 Whirlpool Hose
22W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
23WP358652 Whirlpool Link
24WP359364 Whirlpool Clip
25WP98234 Whirlpool Nut
26WP345670 Whirlpool Lock
27WP692628 Whirlpool Panel
28WP367594 Whirlpool Leveling Feet
29WP358594 Whirlpool Leveling Feet
30W11676450 Whirlpool Screw
323390046 Whirlpool Protector
