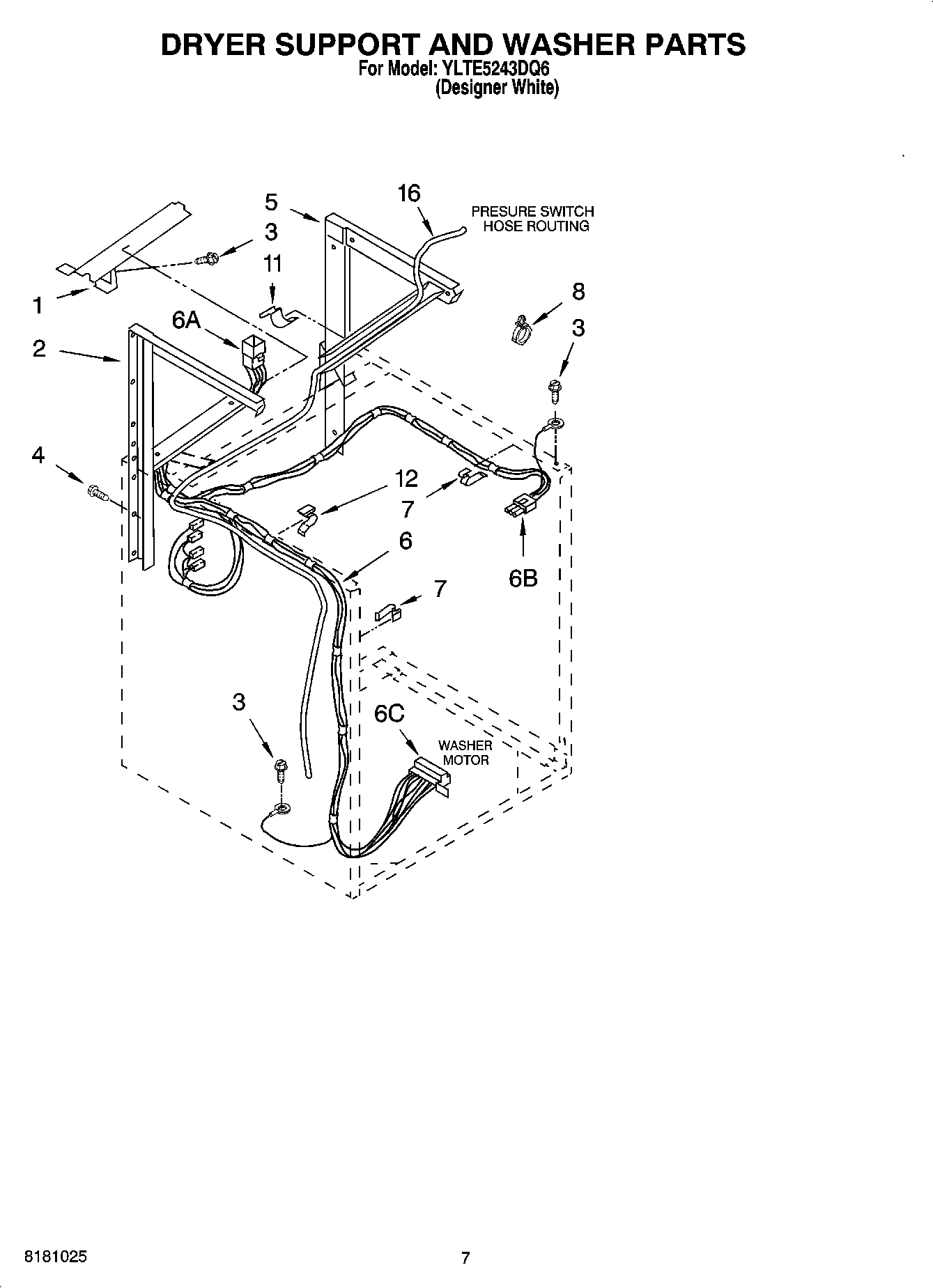

YLTE5243DQ6 05 – DRYER SUPPORT AND WASHER PARTS

YLTE5243DQ6 05 – DRYER SUPPORT AND WASHER PARTS

Written by

in

YLTE5243DQ6 05 – DRYER SUPPORT AND WASHER PARTS

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4W11676450 Whirlpool Screw
5W11174024 Whirlpool Support
6APlug, Terminal (12-Way) (Connects With Automatic Console Harness)
63957867 Whirlpool Wire Harness
6CWP62505 Whirlpool Connector
6BWP62889 Whirlpool Washer Lid Switch Terminal Receptacle
78528351 Whirlpool Clip
88559320 Whirlpool Clip
11WP90016 Whirlpool Clip
12CLIP
16WP353244 Whirlpool Hose
